BUSINESS MUSIC

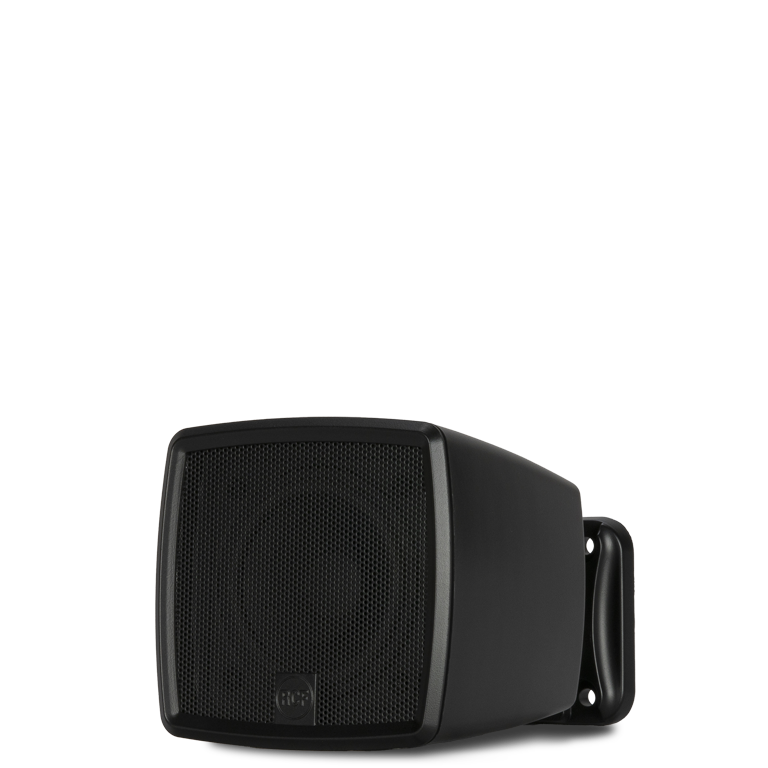

MMR 30T

MICRO MONITOR SPEAKER

10W RMS power handling
101 dB max SPL
Wall mount bracket included
IP 55 protection grade

Wo zu kaufen

Merkmale

10W RMS power handling
101 dB max SPL
200 ÷ 20000 Hz frequency range
130° constant directivity conical coverage angle
3" full range transducer

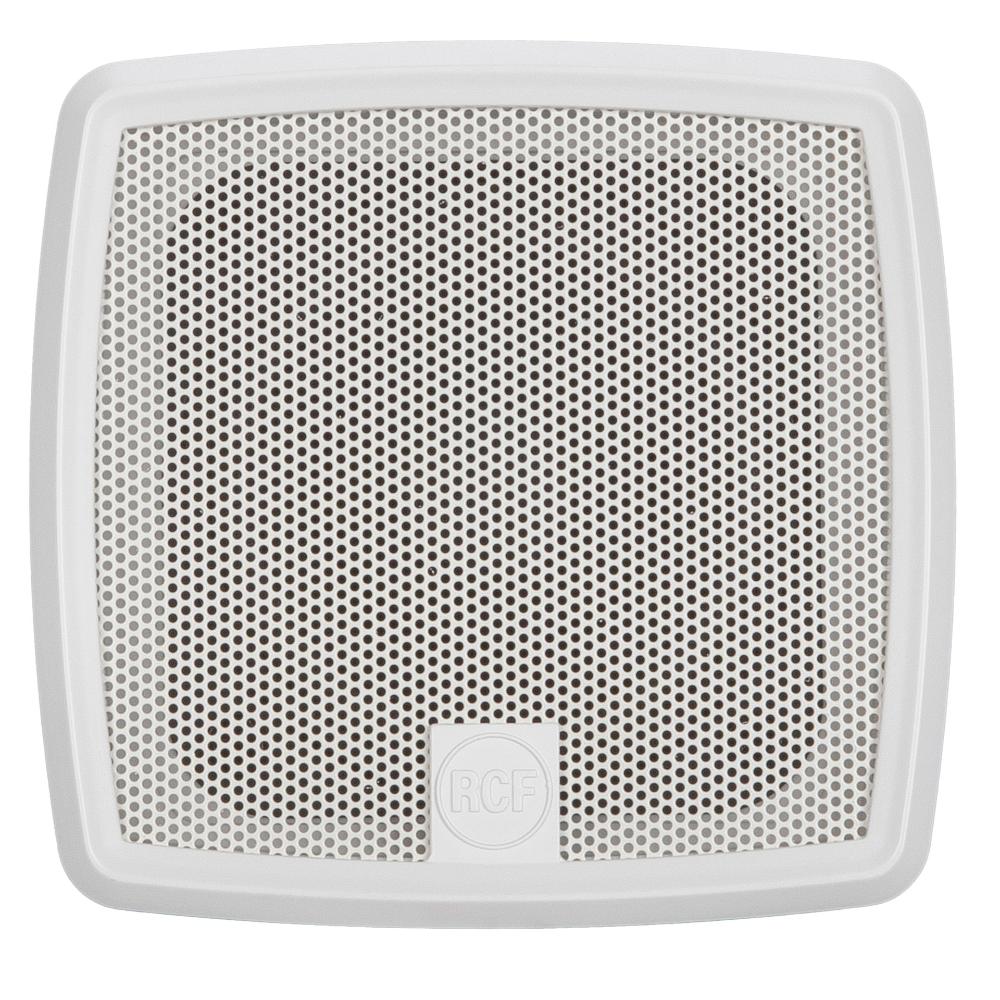

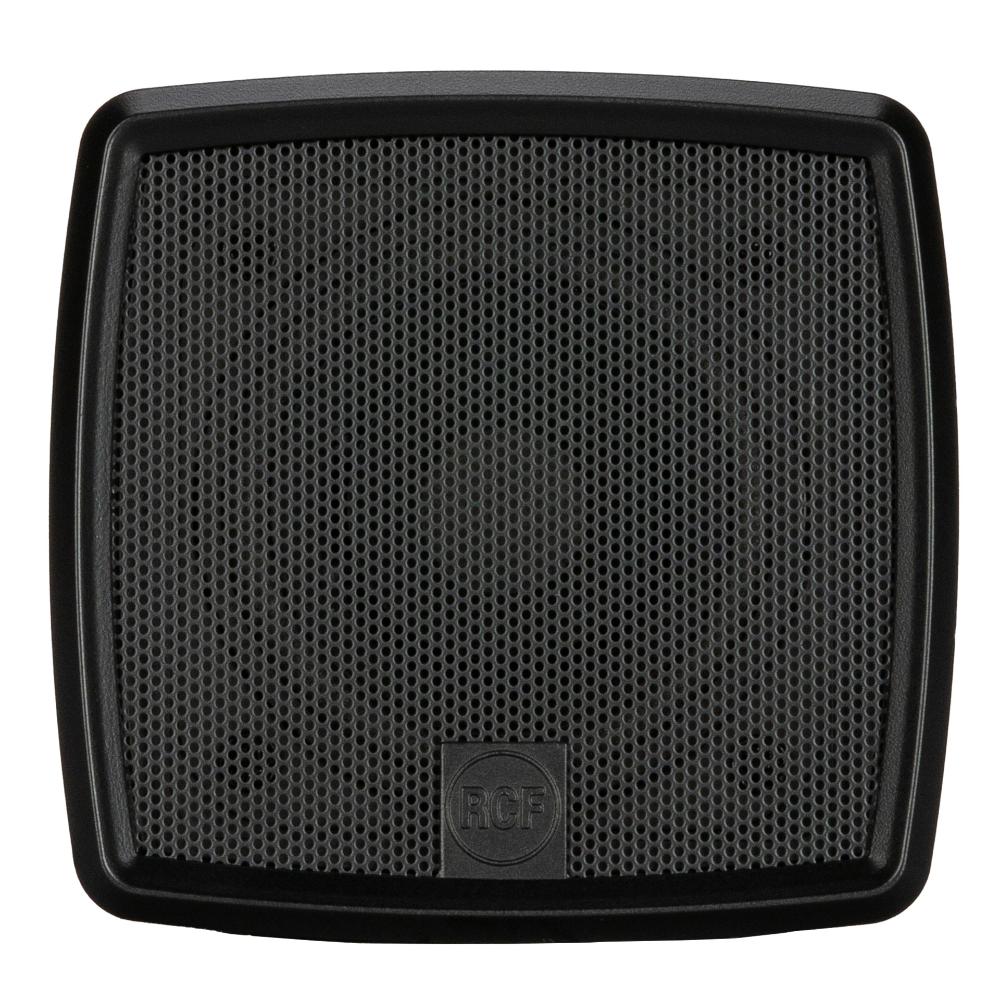

ABS body and aluminum grille
Wall mount bracket included
IP 55 protection grade
2 pole EUROBLOCK connector

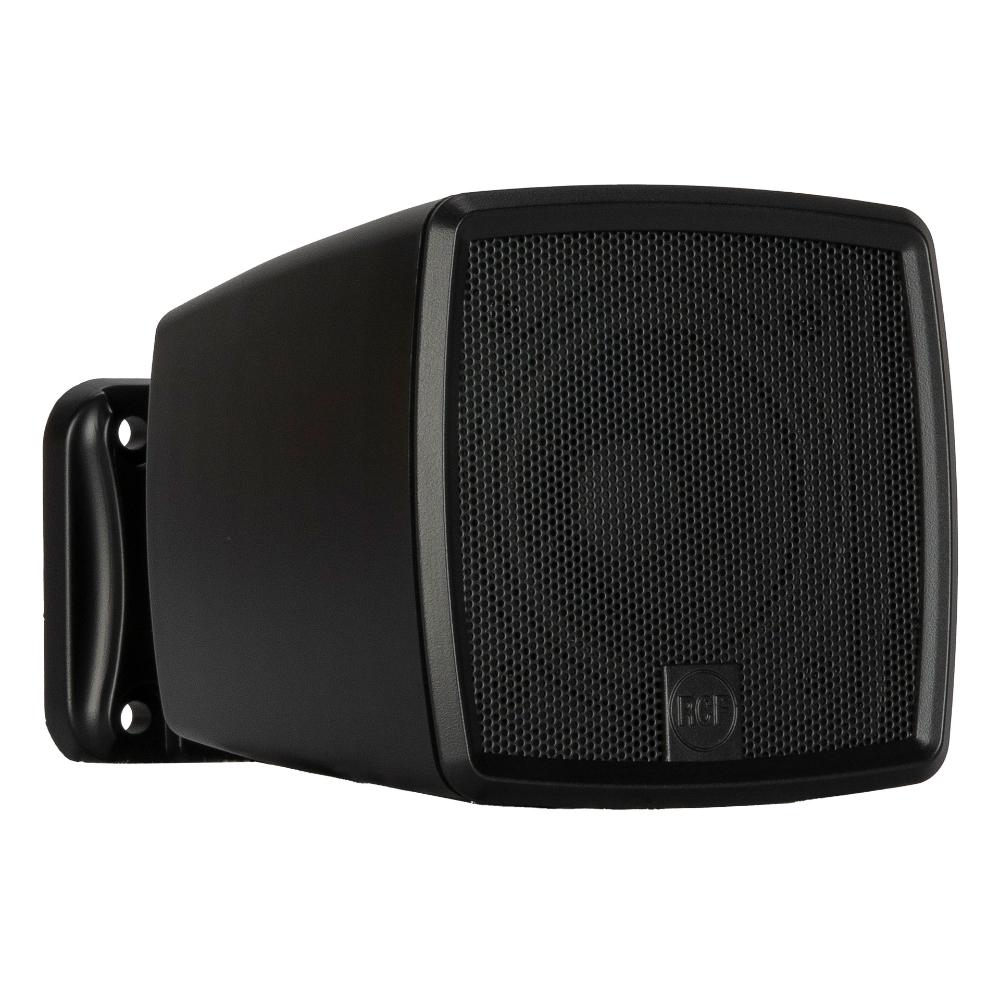

MMR 30T is a full range wall mount monitor speaker, suitable for a wide range of applications, both indoor and outdoor. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 3’’ woofer and 10 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducer guarantees faithful and precise musical reproduction throughout the audio spectrum and allows to reach truly remarkable sound pressure levels for such compact products. The connection is simple and safe thanks to the removable two-pole screw terminals.

NEW

Part number:

13100113

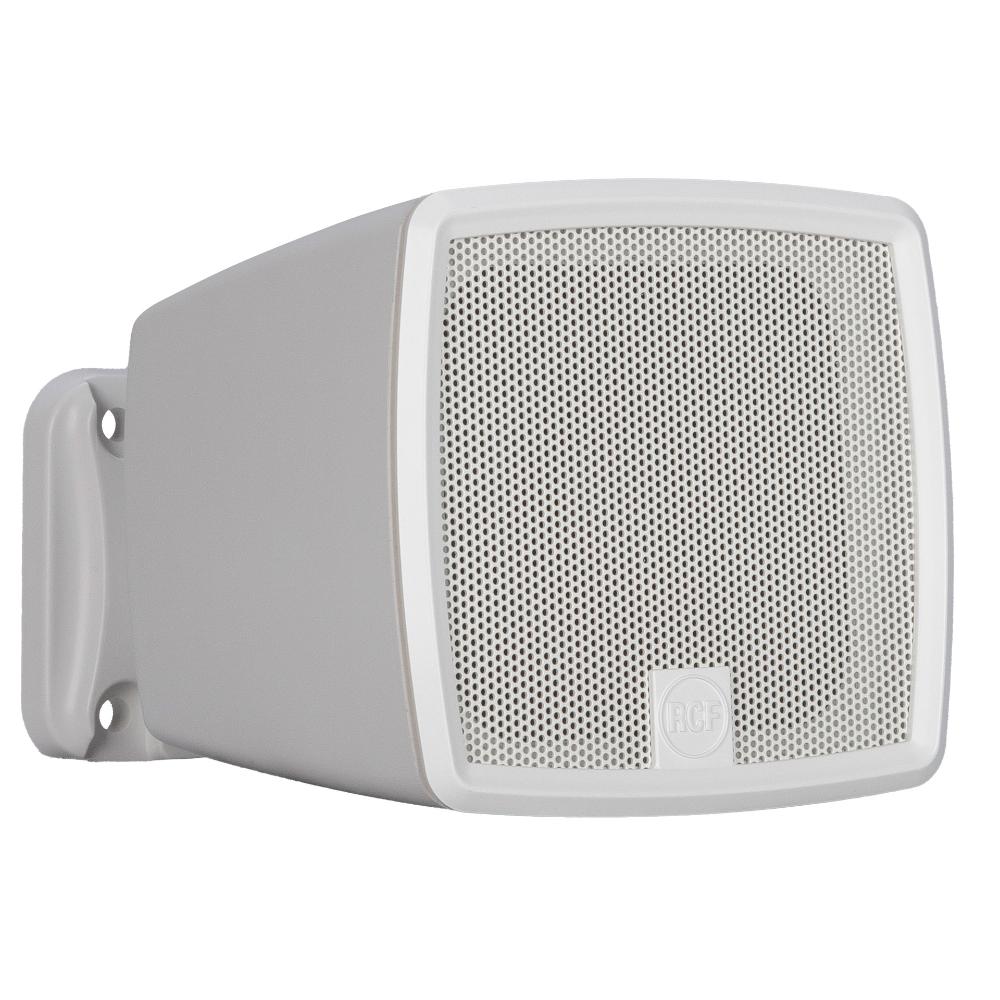

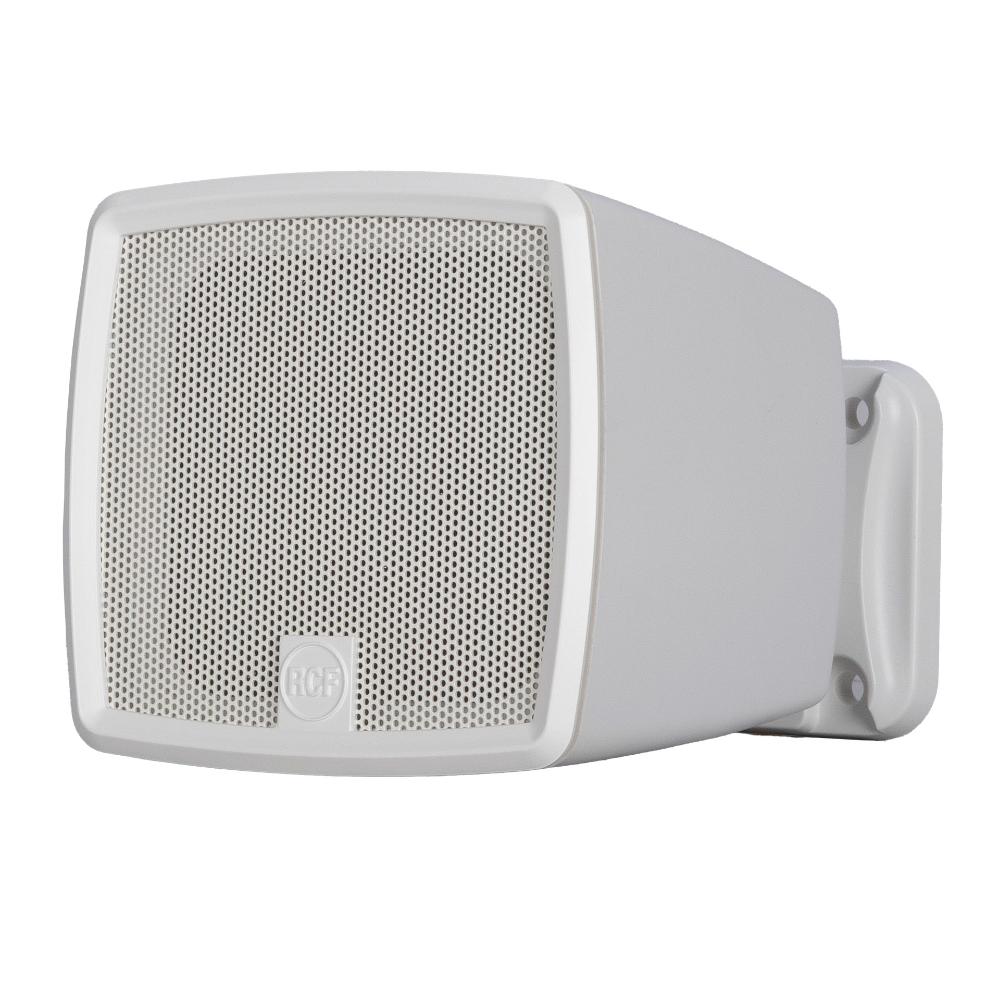

MMR 30T W
White - RAL 9003, EAN 8024530022440

13100114

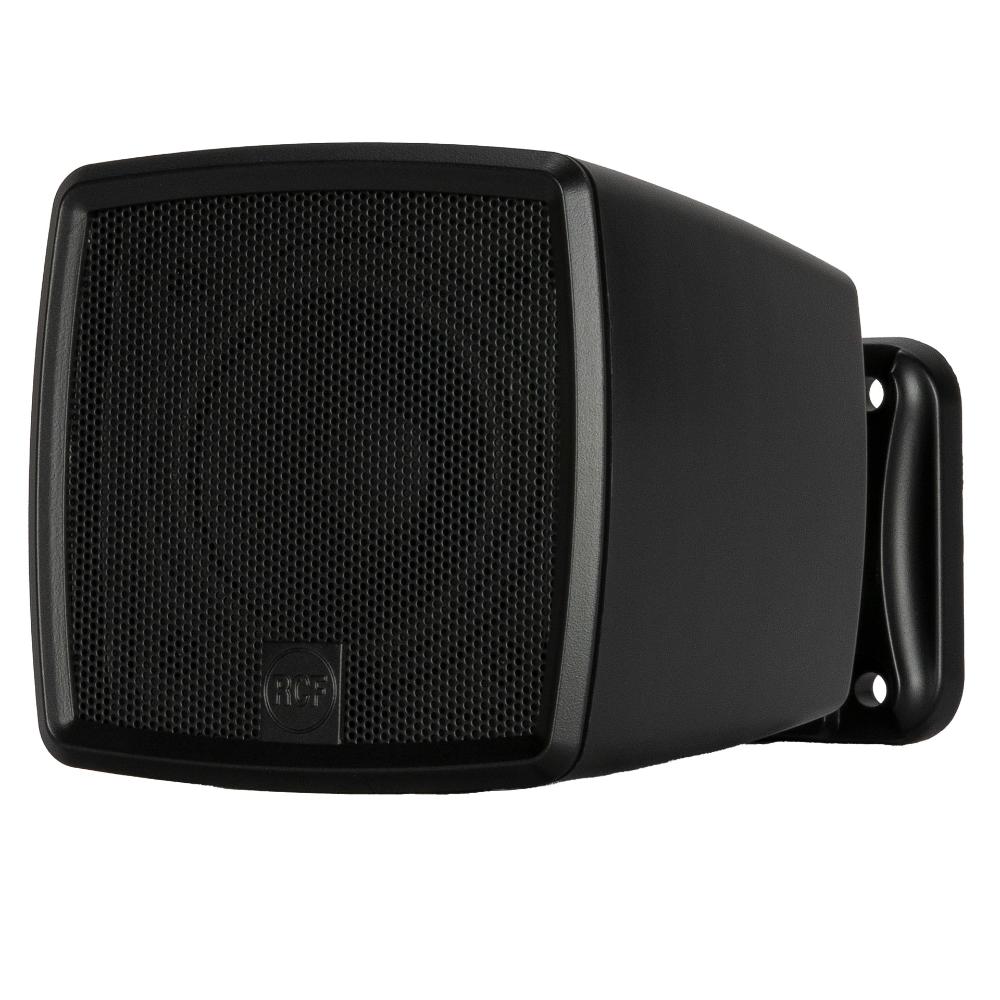

MMR 30T B
Black - RAL 9005, EAN 8024530022457

Multipurpose Sound

With a frequency response from 200 Hz to 20 kHz and a maximum SPL of 101 dB, MMR 30T ensures clear audio for both background music and speech applications.

MMR 30T seamlessly integrates with RCF amplifiers using onboard presets, providing broad compatibility for flexible system configurations.

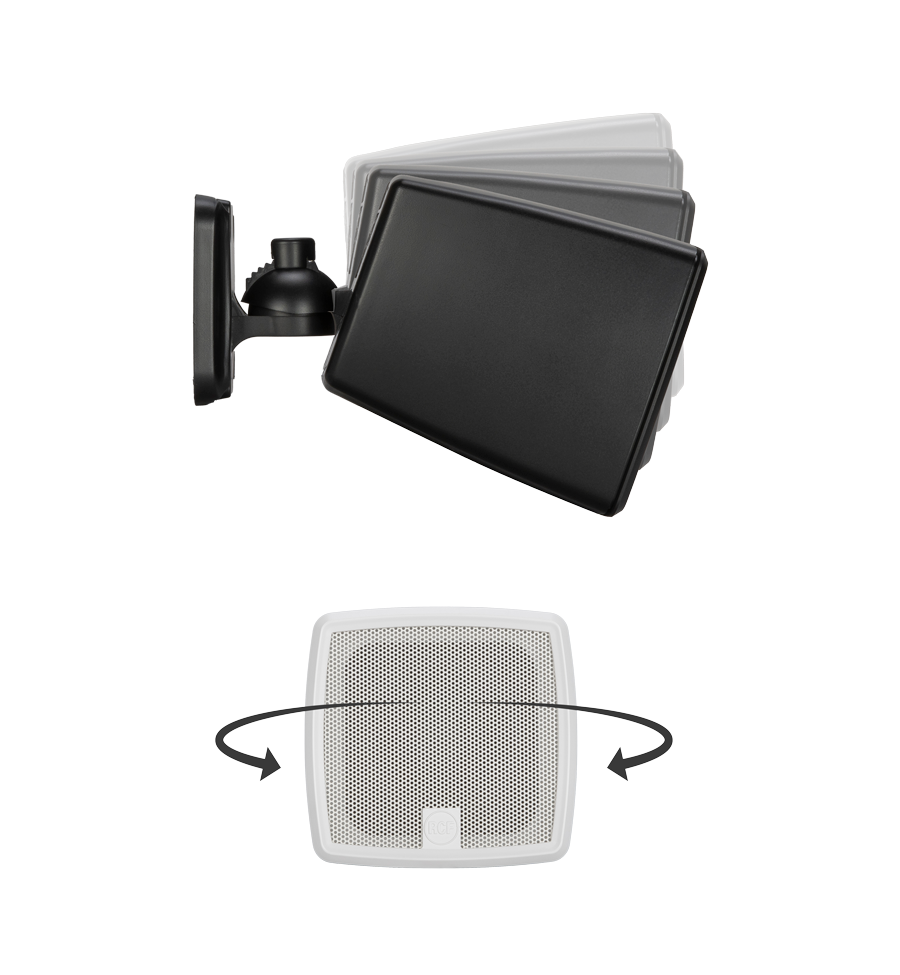

Flexible Wall-Mount Installation

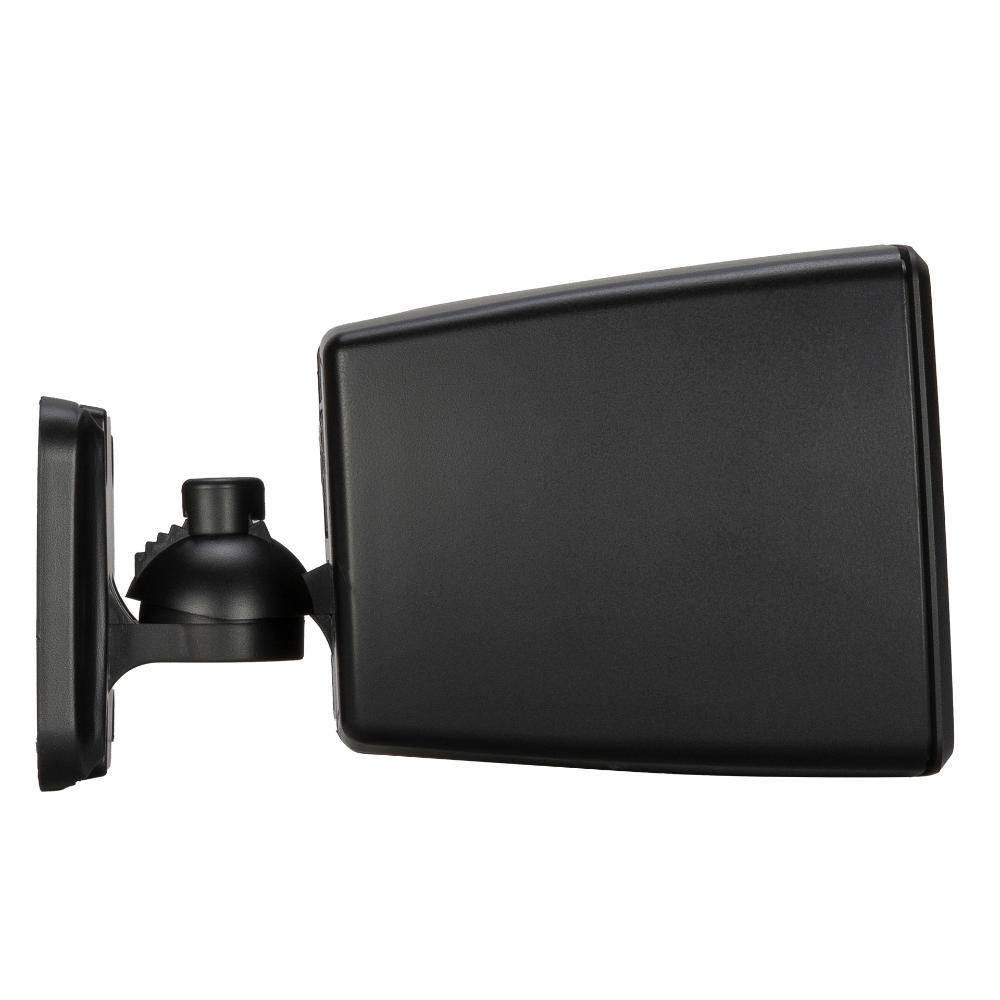

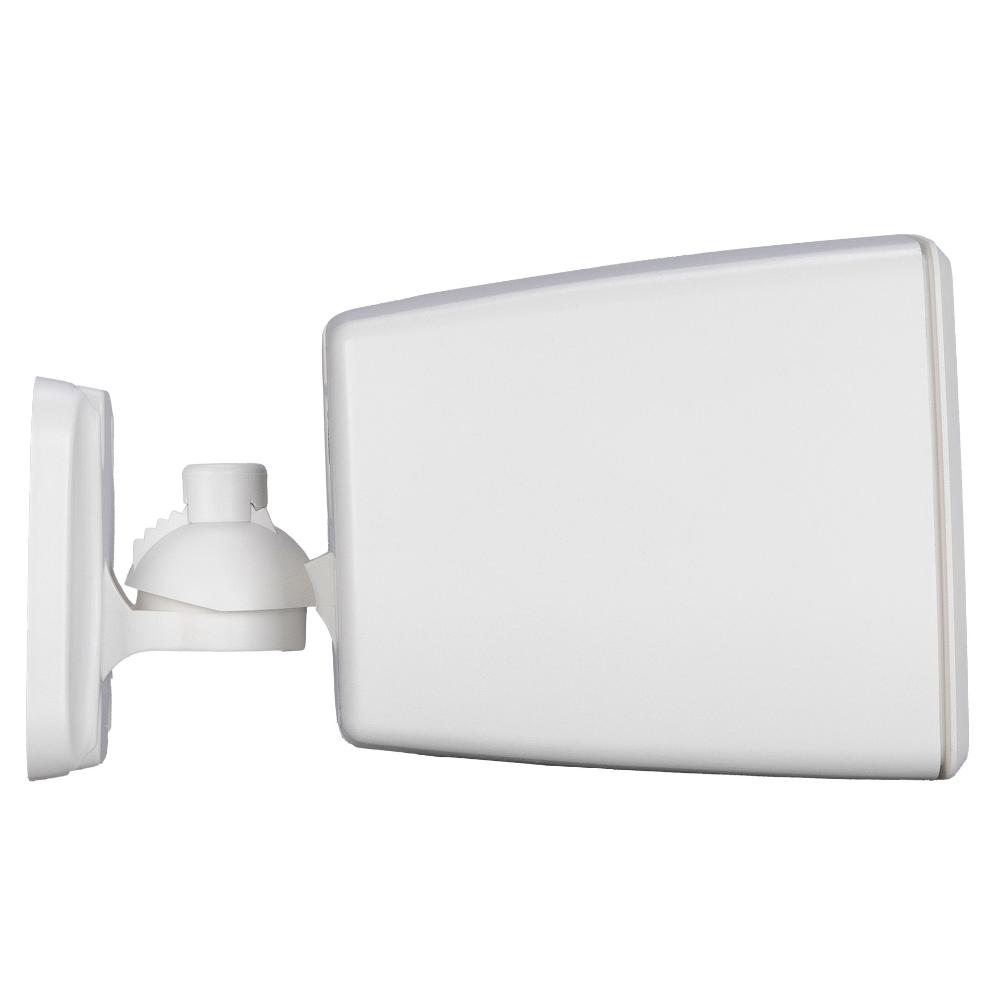

Built with a robust yet lightweight ABS enclosure, MMR 30T is engineered for easy and reliable mounting. Its minimal footprint allows installation in tight spaces without compromising audio quality, while the included wall-mount bracket provides swivel and tilt adjustment for precise orientation.

The Euroblock connector offers straightforward wiring. Available in black RAL 9005 and white RAL 9003, the speaker blends naturally into a wide range of interior and exterior designs.

Flexible Wall-Mount Installation

Built with a robust yet lightweight ABS enclosure, MMR 30T is engineered for easy and reliable mounting. Its minimal footprint allows installation in tight spaces without compromising audio quality, while the included wall-mount bracket provides swivel and tilt adjustment for precise orientation. The Euroblock connector offers straightforward wiring. Available in black RAL 9005 and white RAL 9003, the speaker blends naturally into a wide range of interior and exterior designs.

Uncompromised Performance

Quality components and careful acoustic design ensure high fidelity and impressive dynamics in a variety of installation environments. MMR 30T is built to deliver dependable, long-lasting performance—ideal for hospitality venues, shopping malls, offices, and leisure facilities.

Its sturdy construction, elegant design, and versatility make it an excellent choice wherever premium, reliable sound reinforcement is required.

Lautsprecher in konstantspannungstechnik

In Konstantspannungstechnik betriebene Lautsprecheranlagen, auch bekannt als Hochimpedanz- oder 70-/100-V-Systeme, sind vernetzte Lautsprecher, die mittels Übertragern an eine Audio-Endstufe mit Hochimpedanz-Ausgang angeschlossen werden. Diese Vorgehensweise bietet mehrere Vorteile, wie beispielsweise folgende:

Hohe Spannung (70 V oder 100 V) ermöglicht lange, verlustarme Kabelstrecken zwischen Endstufe und Lautsprechern, während die geringe Stromstärke kleinere Kabeldurchmesser zulässt
Eine große Anzahl von Lautsprechern lässt sich parallel schalten und wird einzig von der verfügbaren Endstufenleistung begrenzt
Verschiedenartige Lautsprecher mit unterschiedlichen Leistungsanforderungen können sich eine Lautsprecherleitung teilen, was die Systemverkabelung vereinfacht
Lautsprecher lassen sich schnell und einfach hinzufügen oder entfernen, ohne dass eine Neuverkabelung des Gesamtsystems erforderlich wäre

Spezifikation

Frequenzgang (-10dB)

200 Hz - 20000 Hz

Max SPL @ 1m:

101 dB

Abdeckungswinkel:

130°

System-Empfindlichkeit

84 dB

Power sektion

Amplification

Full Range

Nominalimpedanz

16 ohm

Leistungsaufnahme

10 W RMS

Paek Power

40 W PEAK

Enpfohlener Verstärker

KPS SERIES

Schallwandler

Woofer

1 x 3.0''

Input/Output sektion

Eingangsbuchsen

Euroblock

Ausgangsanschlüsse

Euroblock

Transformator mit Konstantspannung

100 V

Auswahl der Leistung 1

10 W - 1000 ohm

Auswahl der Leistung 2

5 W - 2000 ohm

Auswahl der Leistung 3

2.5 W - 4000 ohm

Auswahl der Leistung 4

1.25 W - 8000 ohm

Standardkonformität

Safety agency

CE compliant

Physikalische daten

Gehäuse Material

ABS

Gitter

Aluminium

Farbe

Black - RAL 9005, White - RAL 9003

Größe / Gewicht

Höhe

96.3 mm / 3.79 inches

Breite

100.3 mm / 3.95 inches

Tiefe

157.6 mm / 6.2 inches

Gewicht

0.66 kg / 1.46 lbs

Versandinformationen

Verpackung Höhe

126 mm / 4.96 inches

Verpackung Breite

306 mm / 12.05 inches

Verpackung Tiefe

156 mm / 6.14 inches

Verpackungsgewicht

2.1 kg / 4.63 lbs
