AYRA PRO10 SUB

ACTIVE REFERENCE SUBWOOFER

TRUE ACTIVE 300 W RMS CLASS D POWER AMPLIFIER
10" COMPOSITE FIBER WOOFER
30 HZ – 120 HZ FREQUENCY RESPONSE
STEREO INPUT BOARD, STEREO X-OVER OUTPUT

Support

Features

TRUE ACTIVE 300 W RMS CLASS D POWER AMPLIFIER
10" COMPOSITE FIBER WOOFER
30 HZ – 120 HZ FREQUENCY RESPONSE
STEREO INPUT BOARD, STEREO X-OVER OUTPUT
LOW TURBULENCE FRONTAL BASS REFLEX PORT
VARIABLE 2ND ORDER CROSSOVER FROM 50 TO 120 HERTZ

AYRA PRO10 SUB is an active reference subwoofer designed for AYRA PRO studio monitors, also suitable for low-frequency extension on third-party audio systems. With tight and accurate bass reproduction it's ideal for audio recording, mixing, multichannel systems, desktop use, and other creative applications.

ARCHIVED

FEEL THE MIX

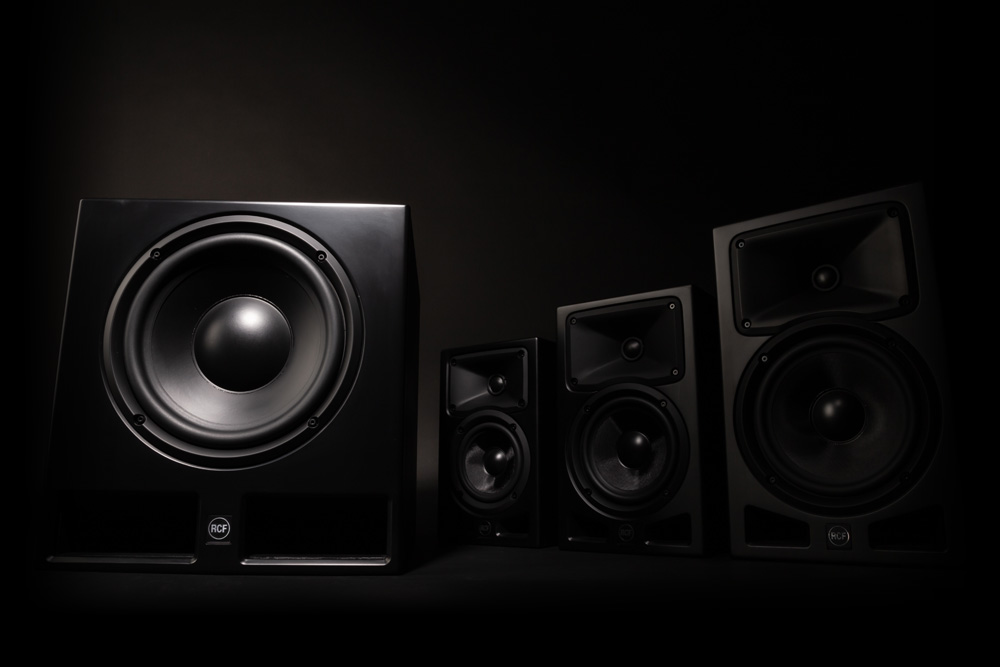

Pairing the AYRA PRO10 SUB with RCF studio monitors delivers an optimized monitoring experience with extended headroom and powerful low-end. With 300 Watts RMS Class-D Amplifier, frequency range from 30 up to 120 Hz and a variable 2nd order crossover from 50 to 120 hertz, you have enough power for any mixing room size. The bypass footswitch disables the high-pass crossover and mutes the subwoofer, providing full range audio to the monitors without switching off the subwoofer.

LOW RESONANCE AND MINIMUM DISTORTION

Drawing from RCF’s 70-plus years knowledge in speaker production, the low-resonance fiberboard box design follows the requests of many professional sound engineers. Undesirable cabinet’s resonances are removed with careful electro-acoustic design.

THE GOOD FLOW

The advanced vented port is a proprietary solution that helps to achieve a good aerodynamic behavior of the air (laminar), gaining efficiency and reducing distortion.

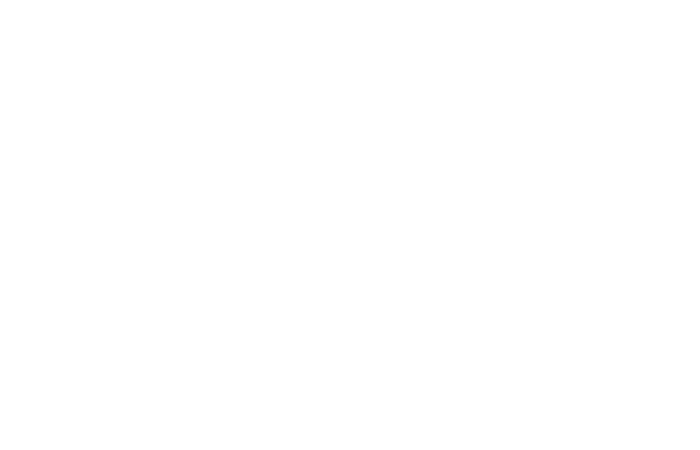

CLASSIC BASS REFLEX PORT
The flow becomes turbulent
and the vortices are evident

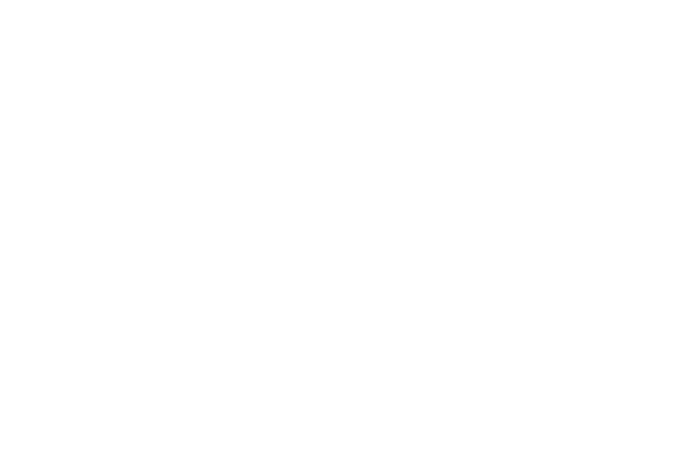

LAMINAR FLOW VENTED PORT
Good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortions

BRING OUT THE LOWS

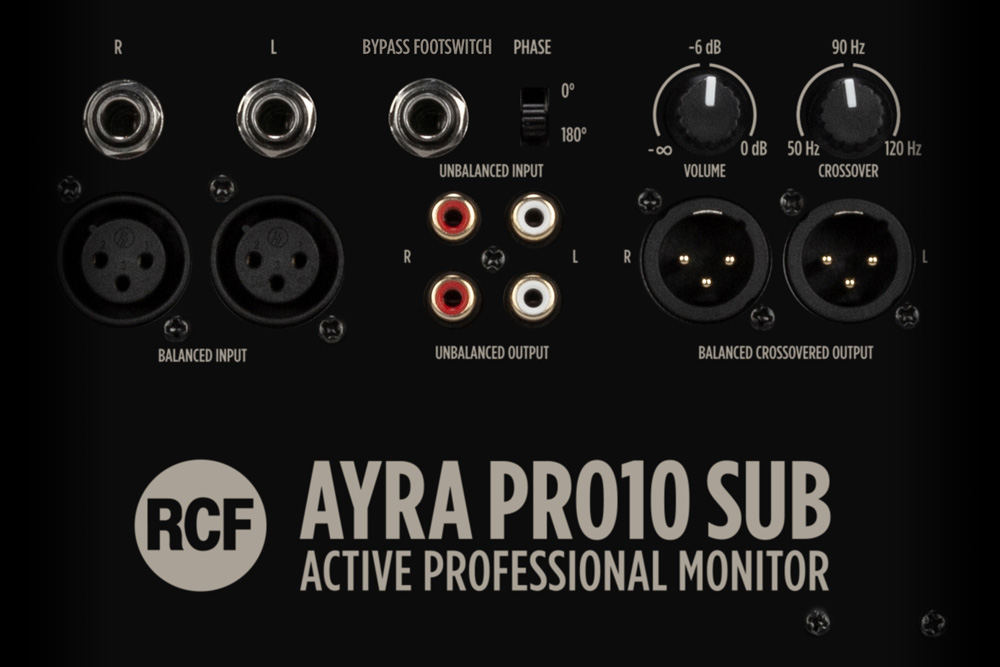

Complete range of analog connectors and controls on the rear panel let you master your monitoring system at its best. The low-frequency behavior of the system is managed carefully with a variable crossovered output for stereo monitors. The low turbulence frontal bass reflex port allows for the best placement flexibility.

Acoustical specifications

Frequency Response

30 Hz - 120 Hz

Max SPL @ 1m

120 dB

Transducers

Woofer

10'', 2.5'' v.c

Input/Output section

Input signal

bal/unbal

Input connectors

XLR, Jack, RCA

Output connectors

XRL Stereo

Input sensitivity

0 dBu

Processor section

Hi-Pass Frequencies

Selectable 50-120Hz

Limiter

Soft Limiter

Controls

Level -inf./0dB
Selectable High-pass filter 50-120Hz
Bypass footswitch
0°/180° phase selector

Power section

Total Power

600 W Peak, 300 W RMS

Low frequencies

600 W Peak, 300 W RMS

Connections

XLR, Jack, RCA

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

MDF

Color

Black - RAL 9005

Size / Weight

Height

400 mm / 15.75 inches

Width

355 mm / 13.98 inches

Depth

390 mm / 15.35 inches

Weight

17.8 kg / 39.24 lbs

Shipping information

Package Height

500 mm / 19.69 inches

Package Width

460 mm / 18.11 inches

Package Depth

500 mm / 19.69 inches

Package Weight

21 kg / 46.3 lbs
