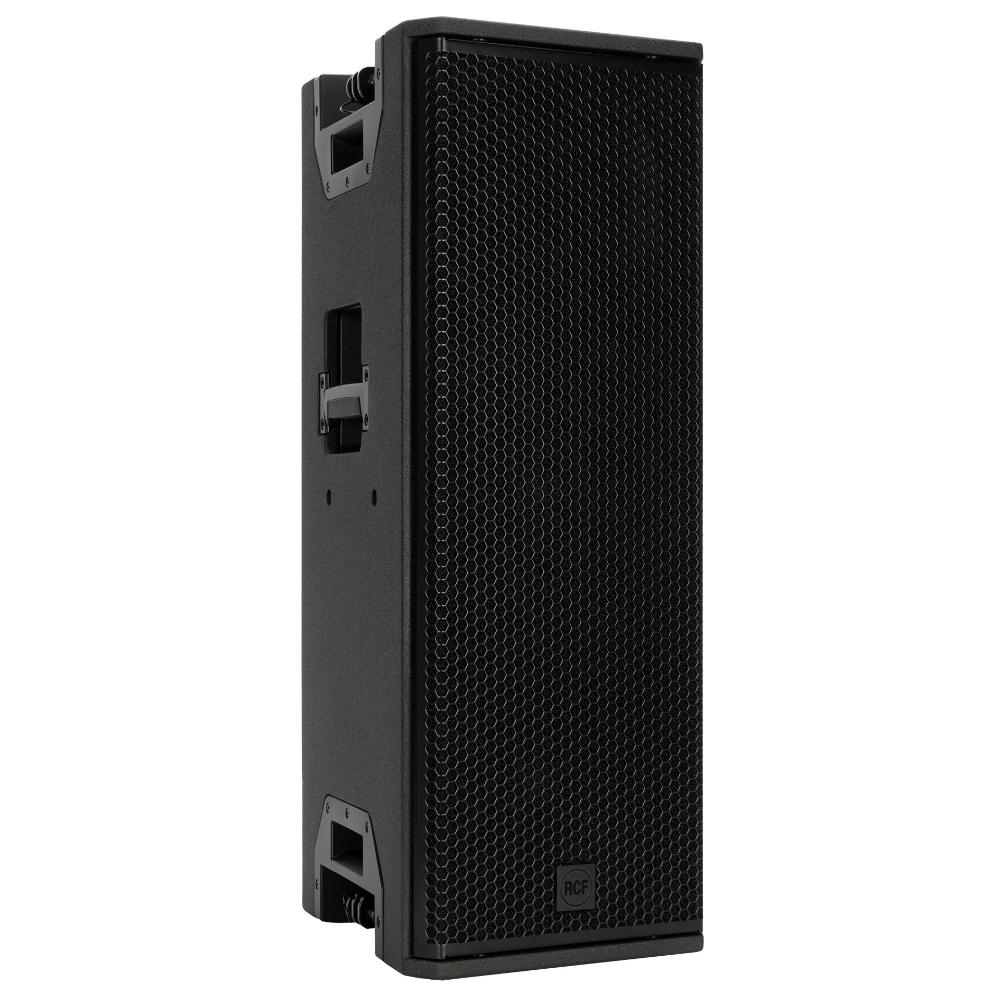

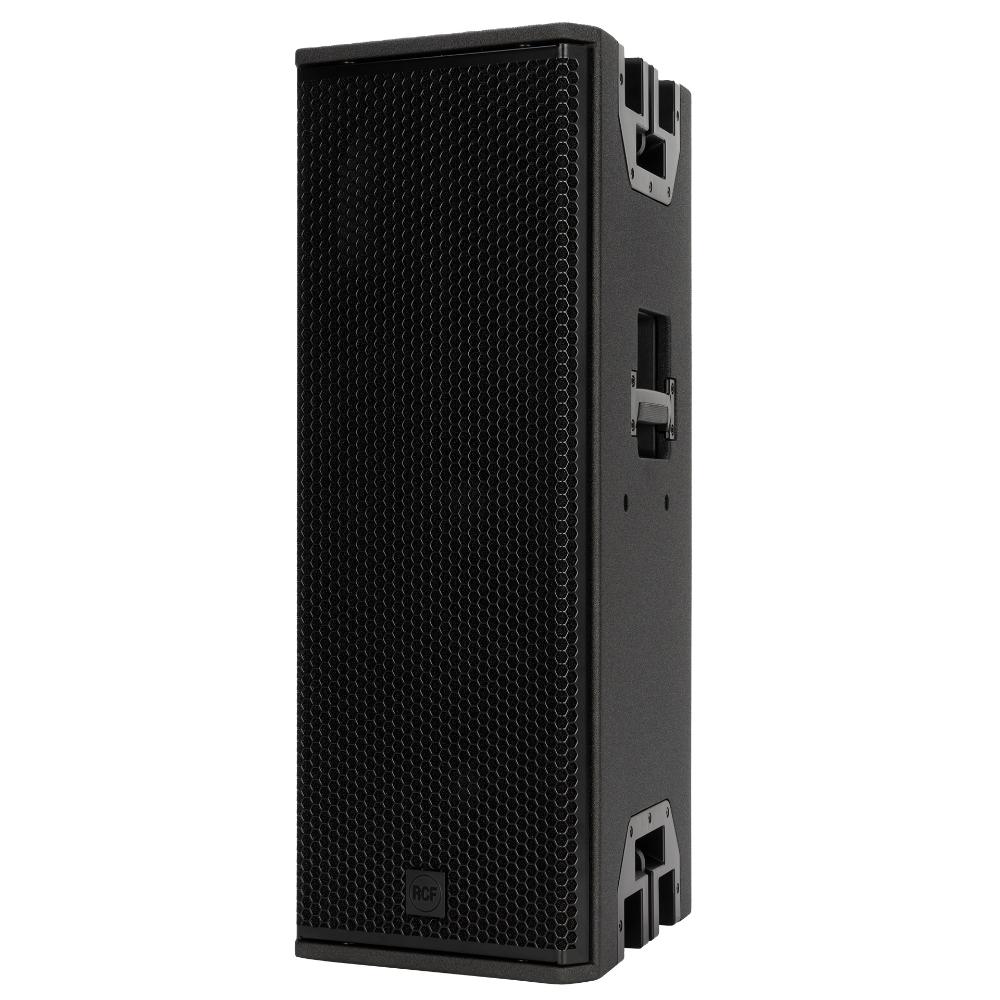

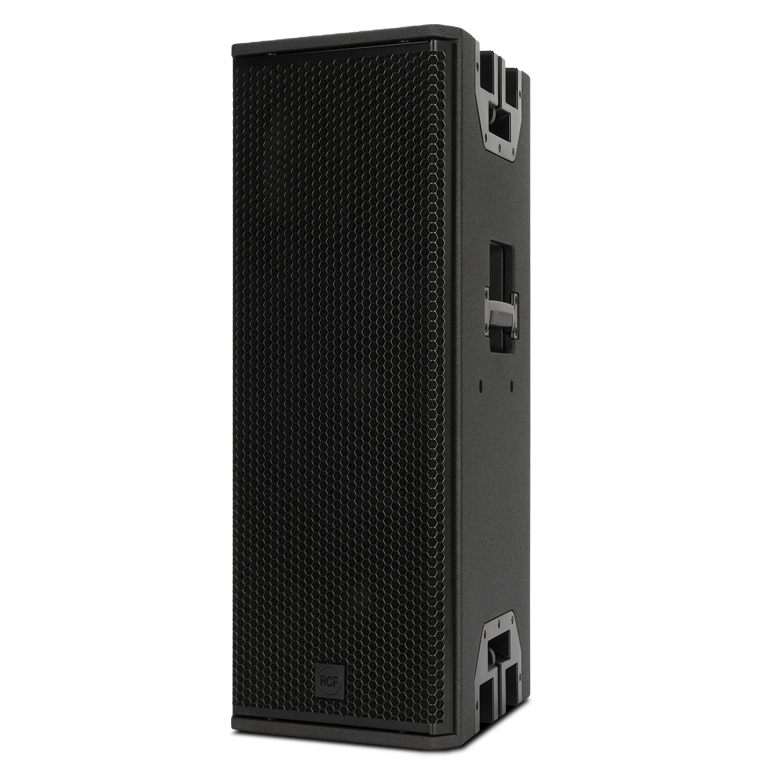

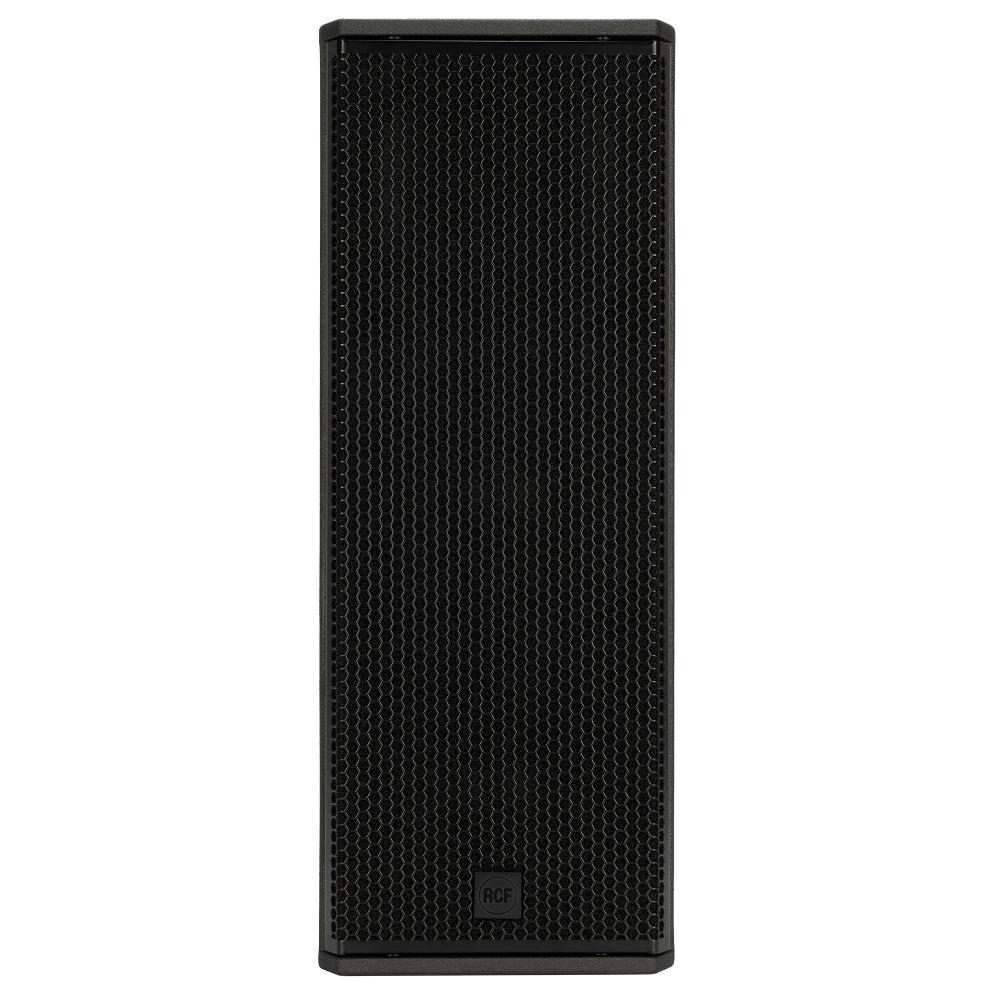

KXW C4-A

WIDE DIRECTIVITY ACTIVE TWO-WAY SPEAKER

134 dB max SPL
2 x Class-D amplifiers, 1600 Watt RMS total power
100° x 50° coverage
Flexible Rigging System

RDNet

FiRPHASE

BASS MOTION CONTROL

Where to buy

Features

134 dB max SPL
100° x 50° coverage
LF 2 x 10’’ neodymium woofer, 3” voice coil
HF Neo comp. driver 4.0” titanium dome
2 x Class-D amplifiers, 1600 Watt RMS total power
45 – 20.000 Hz frequency range
RDNet on board
FiRPHASE 0° linear phase
Flexible Rigging System

The KXW C4-A active speaker module delivers top-quality sound for highly demanding events indoors or outdoors in small to medium-sized areas. It features two 10” woofers and a high-performance 4.0" titanium dome compression driver. The central 100° x 50° rotatable waveguide allows symmetrical coverage and can be swapped with the woofer from the central to the upper position*. This allows the cabinets to be arranged in vertical or horizontal clusters. With game-changing rigging solutions and versatile arrangement of the transducers, its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. * The firmware shall be updated via RDNet

AVAILABLE ON ORDER

Part number:

13000887
KXW C4-A
EAN 8024530022174

13000956
KXW C4-A
EAN 8024530023607
