TOURING

SUB 9006-AS

ACTIVE HIGH POWER SUBWOOFER

142 dB max SPL
7200 Watt Peak power - 3600 Watt RMS
30 Hz - 400 Hz frequency response
2 x 18" Woofer

RDNet

Where to buy

Features

7200 Watt Peak power - 3600 Watt RMS
142 dB max SPL
30 Hz - 400 Hz frequency response
2 x 18" Woofer
DSP controlled Input section with selectable presets
RDNet remote control
Delay control
Baltic birch cabinet

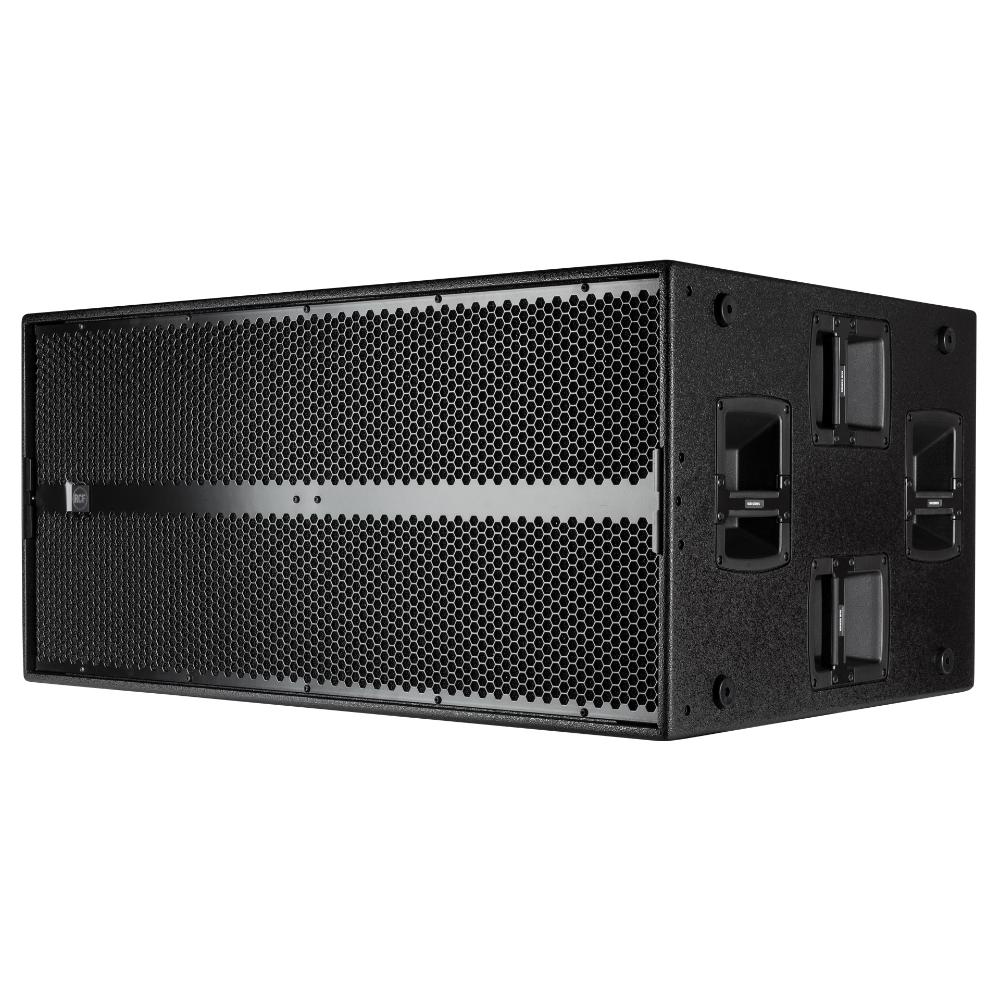

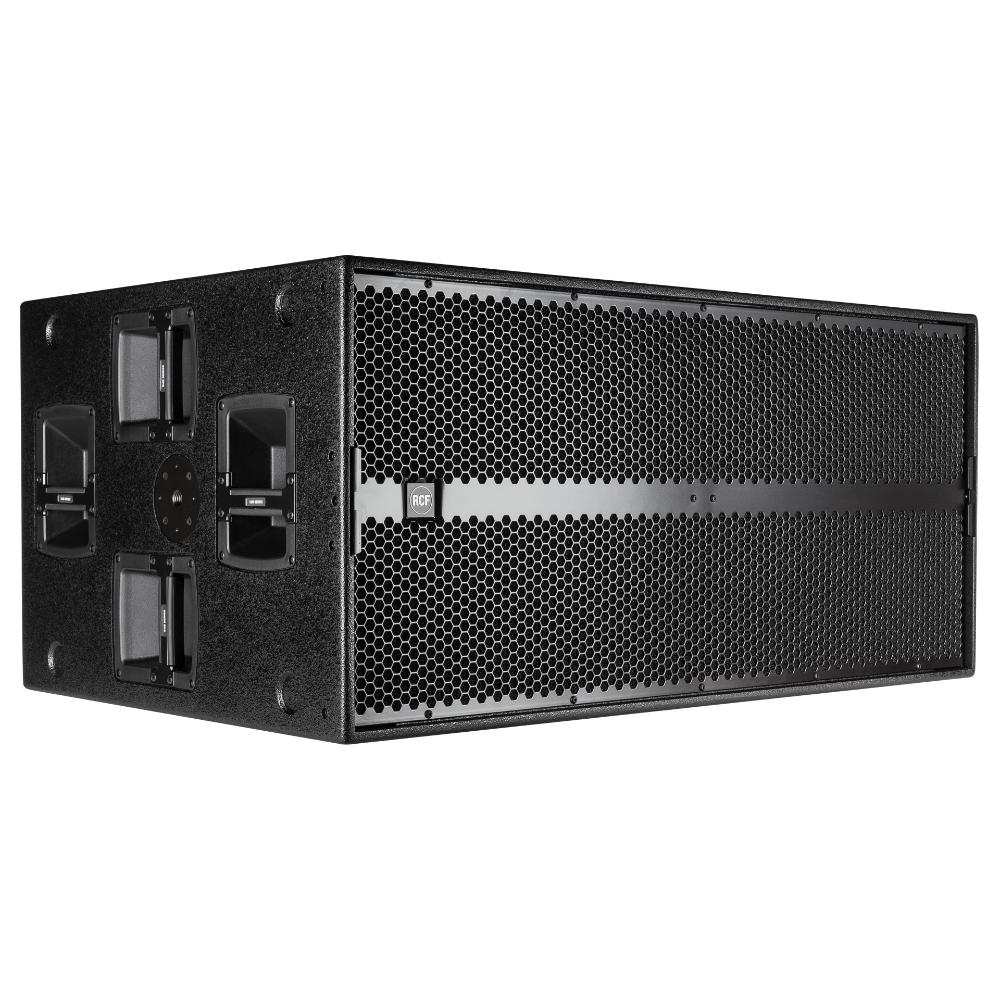

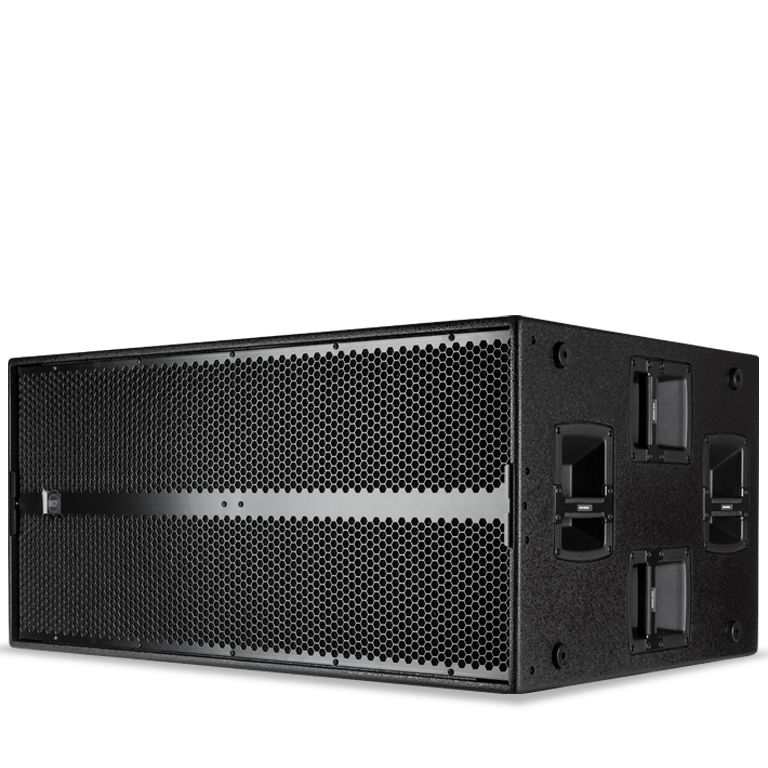

The SUB 9006-AS is one of the most powerful 2x18” subwoofers in the field of live sound. Featuring two high-power hyper-vented 18” neodymium woofers with 4.0” inside-outside voice coils, this cabinet delivers a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9006-AS can perform in the most demanding situations. The housing of the SUB 9006-AS matches the RCF D-Line HDL50-A and HDL10-A array systems, enabling to build stacked systems in a perfect combination.

RDNet Software

Configurations

Part number:

13000494
SUB 9006-AS
90-240V, Black, EU, EAN 8024530014148

13000970
SUB 9006-AS
90-240V, Black, US, EAN 8024530023430

NETWORKED CONTROL AND MUCH MORE

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

Top end electronics

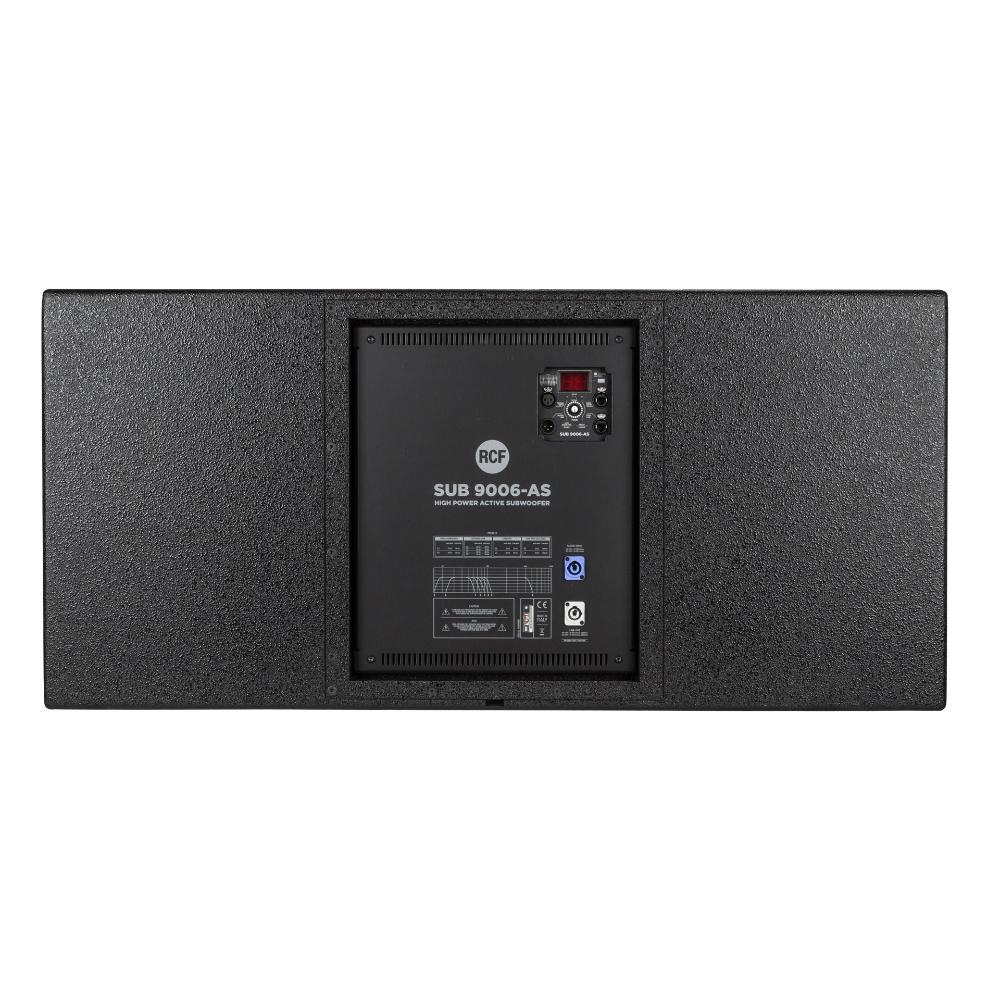

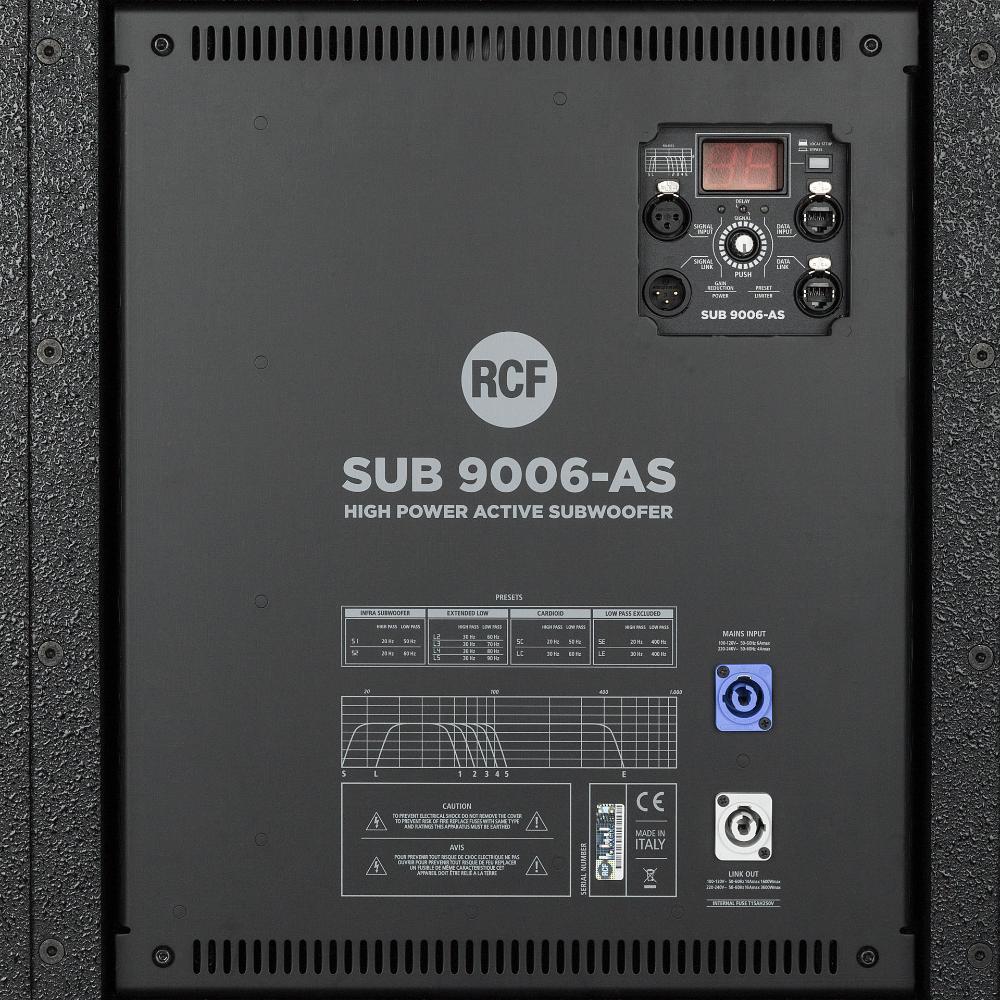

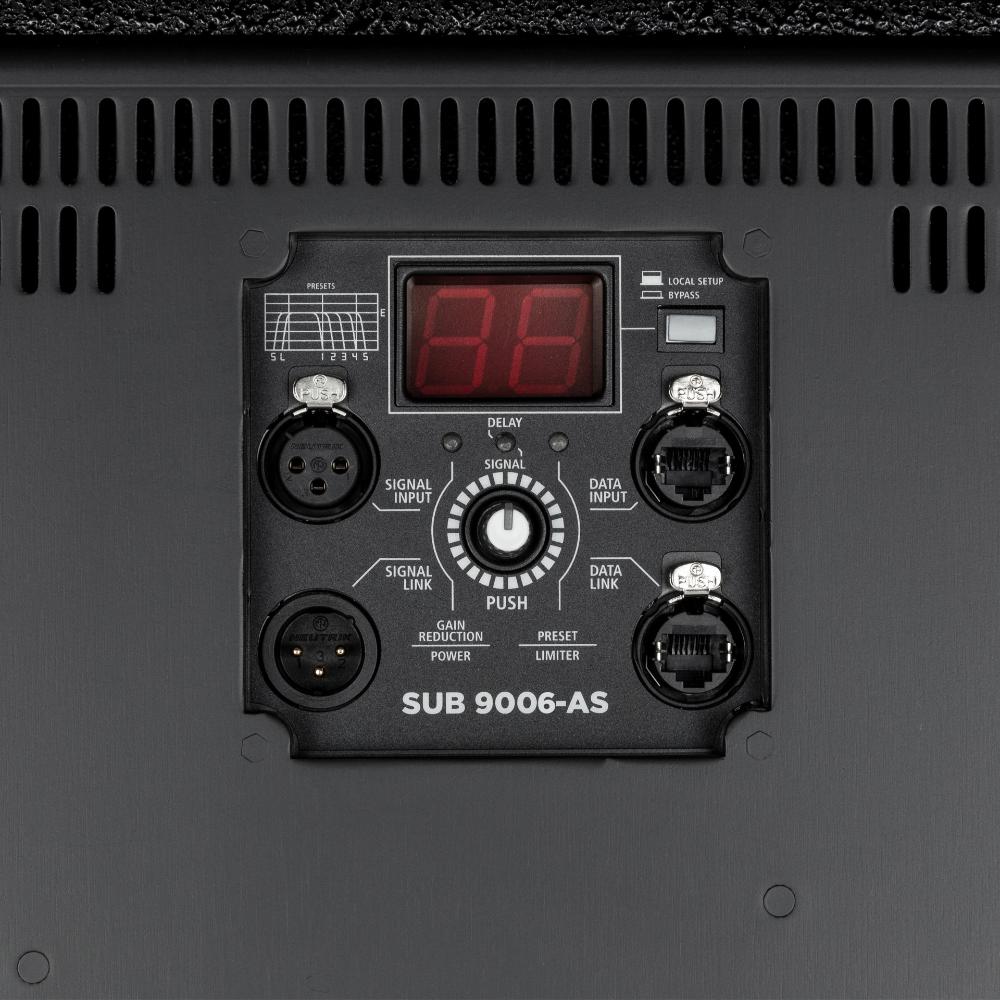

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing and equalisation. All the settings, monitoring and advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts input sensitivity, Low Cut, Xover, volume, bypass, delay and presets selection. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier houses on a unique Vibrostop floating aluminum panel for extra protection during transportation.

Hyper ventilation system

RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. The 4.0" inside/outside voice coil is wounded on a strong fibreglass former and guarantees a more efficient cooling. The former is internally and externally reinforced with Nomex that stiffen the overall structure for a better energy transfer between the voice coil and the body cone. In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.

Stacking HDL 50-A 4K or HDL 10-A

The cabinet is made of high quality birch plywood with every layer glued by a special water-resistant adhesive weatherproofing the cabinet. The heavily braced internal structure of the cabinet survives long-term use and transportation. Two separate acoustic chambers for the woofers and a separate housing for the amplifier guarantee the best components efficiency and reliability. Dual Stacking: horizontal to fit the HDL 50-A 4K while the vertical fits HDL 10-A.

Cabinet

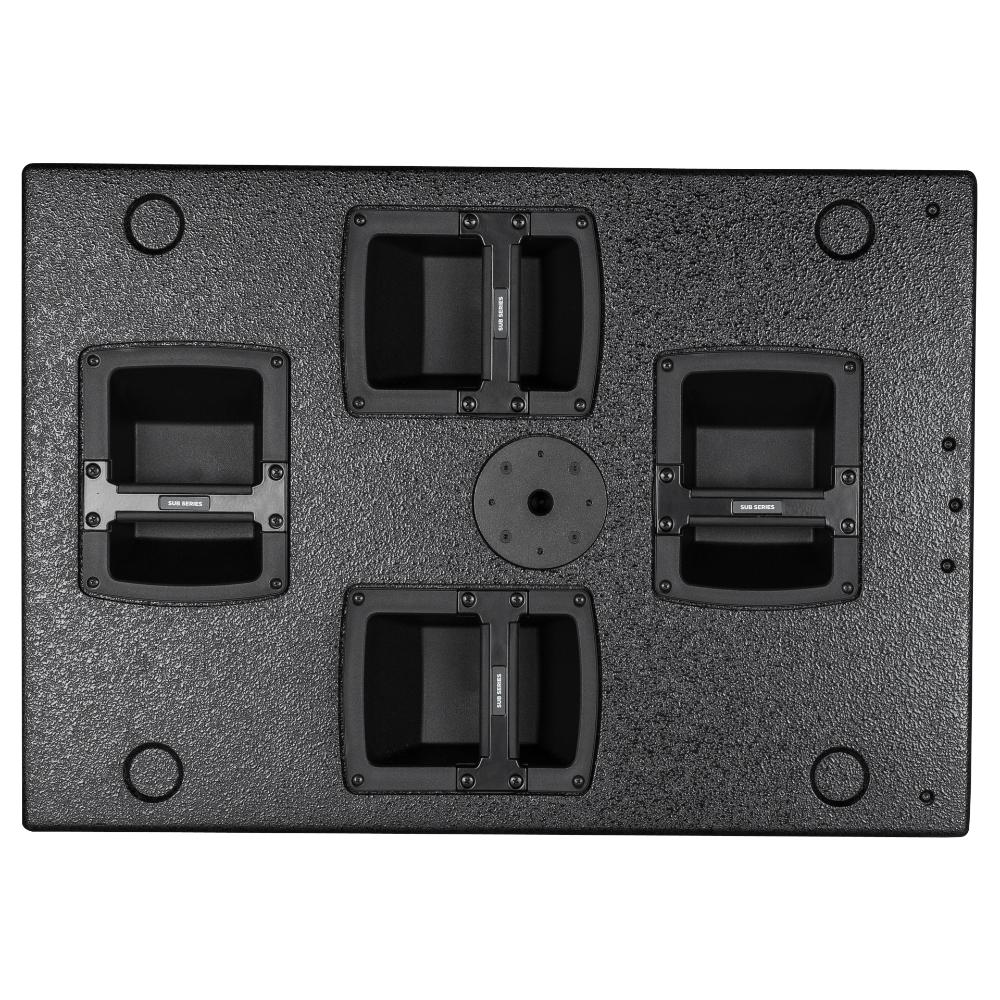

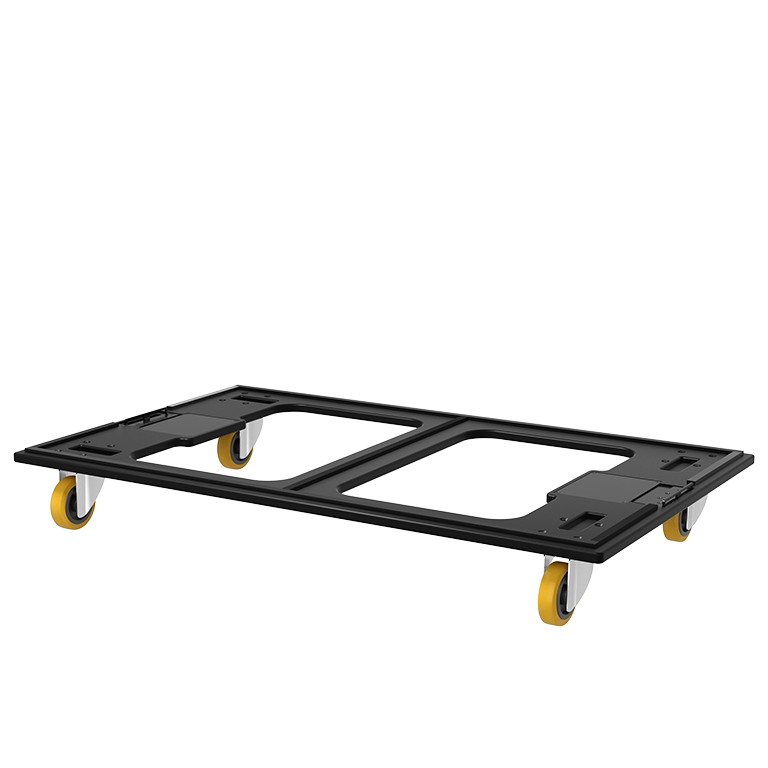

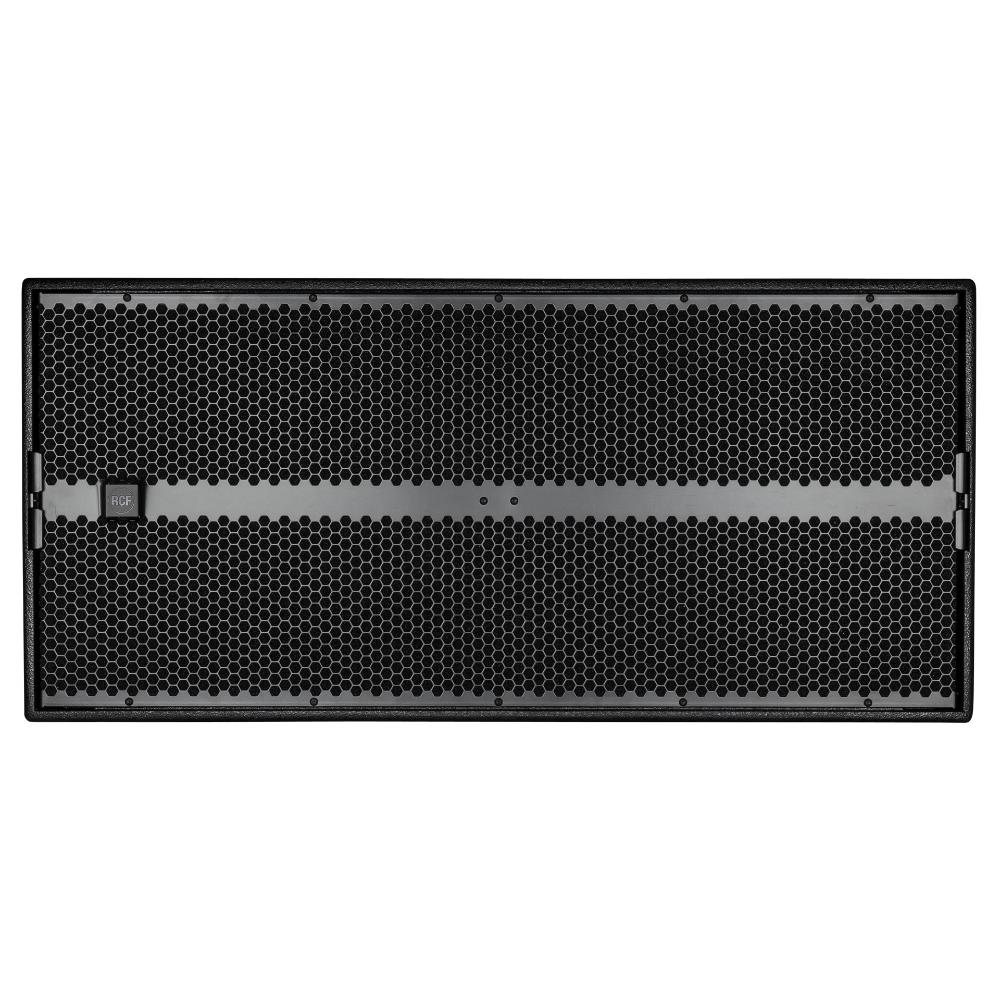

The heavy-duty powder coated front grille integrates a central reinforcement bar and a special transparent-to-sound foam backing on the inside helps to further protect the transducers from dust. The subs are stackable and light-weight, for easy set-up and tear down. The SUB 9007-AS and SUB 9006-AS are equipped with 8 aluminum handles (4 per side) with ergonomic rubber handgrip. The transportation is fast with the detachable Kart kit: a dolly caster-board with rugged tour grade casters and rotating cam mechanism.
