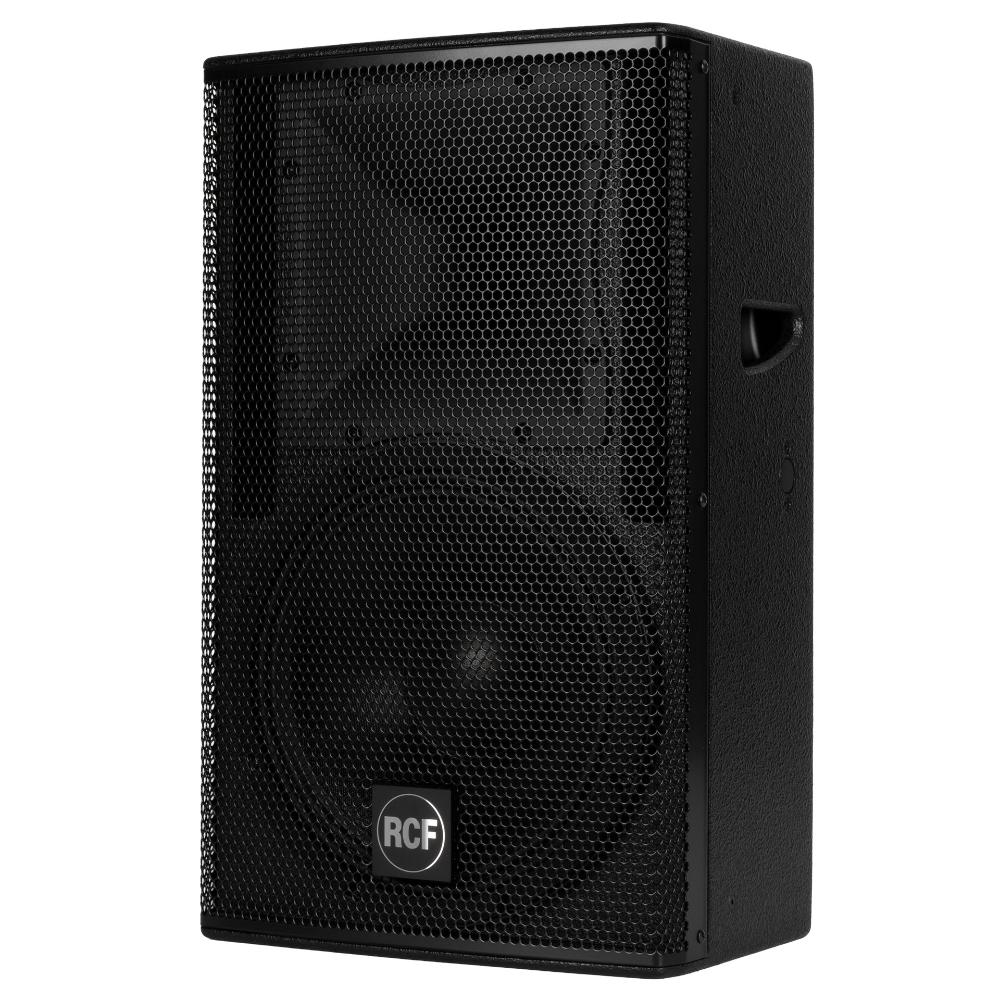

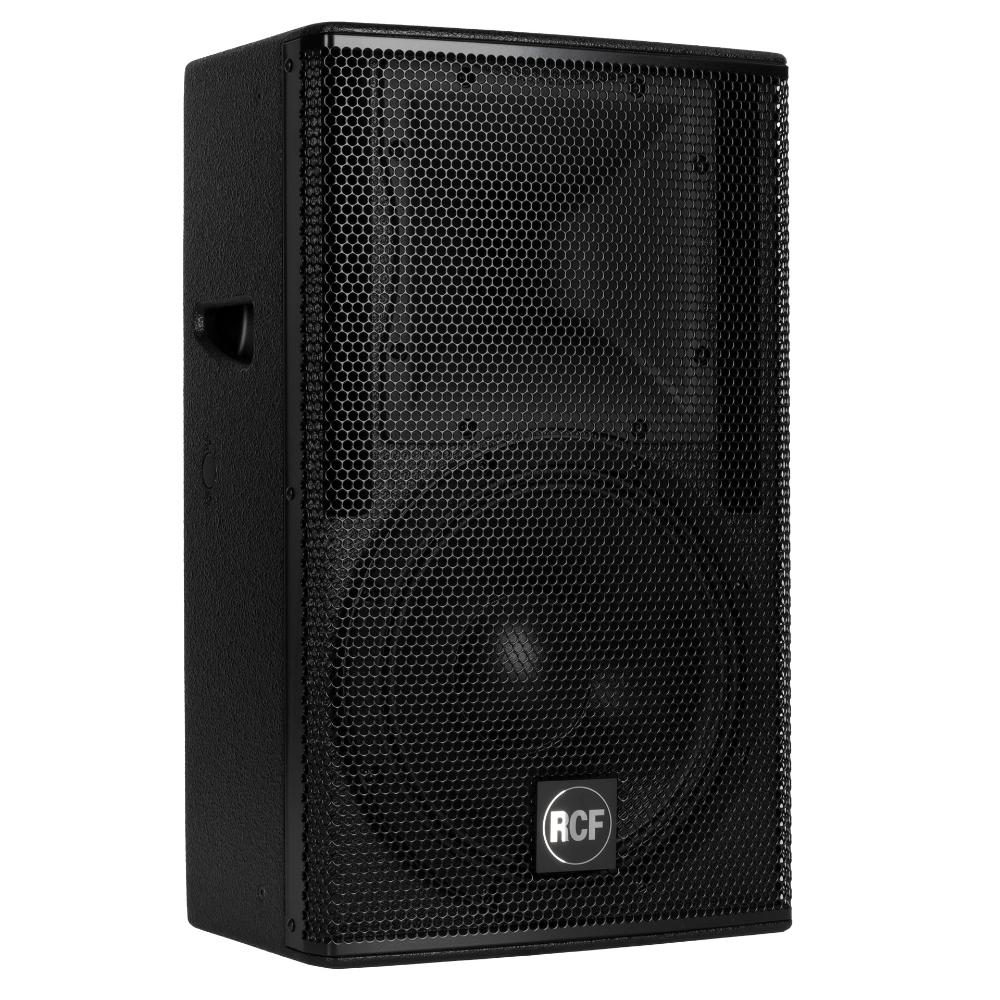

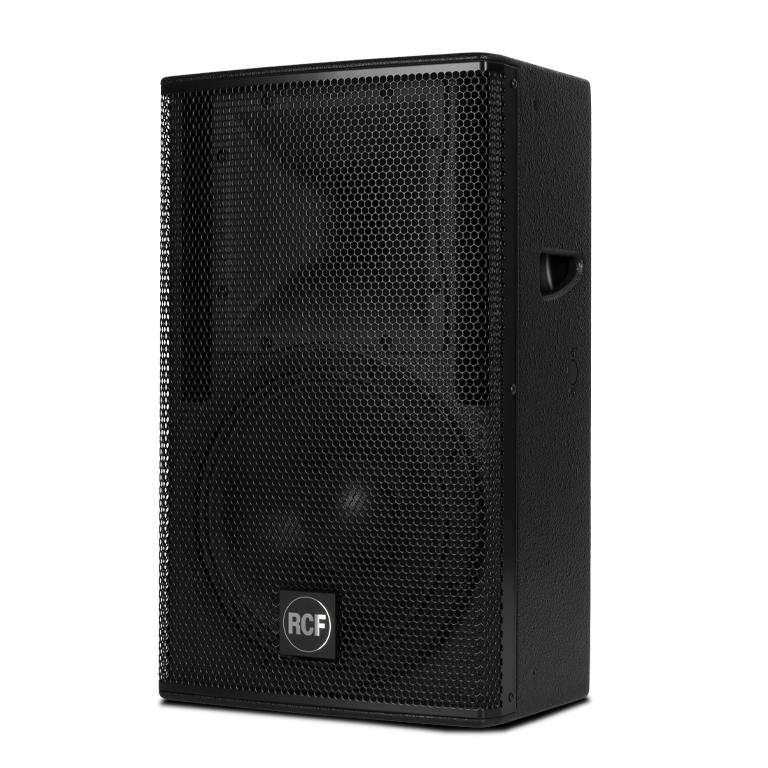

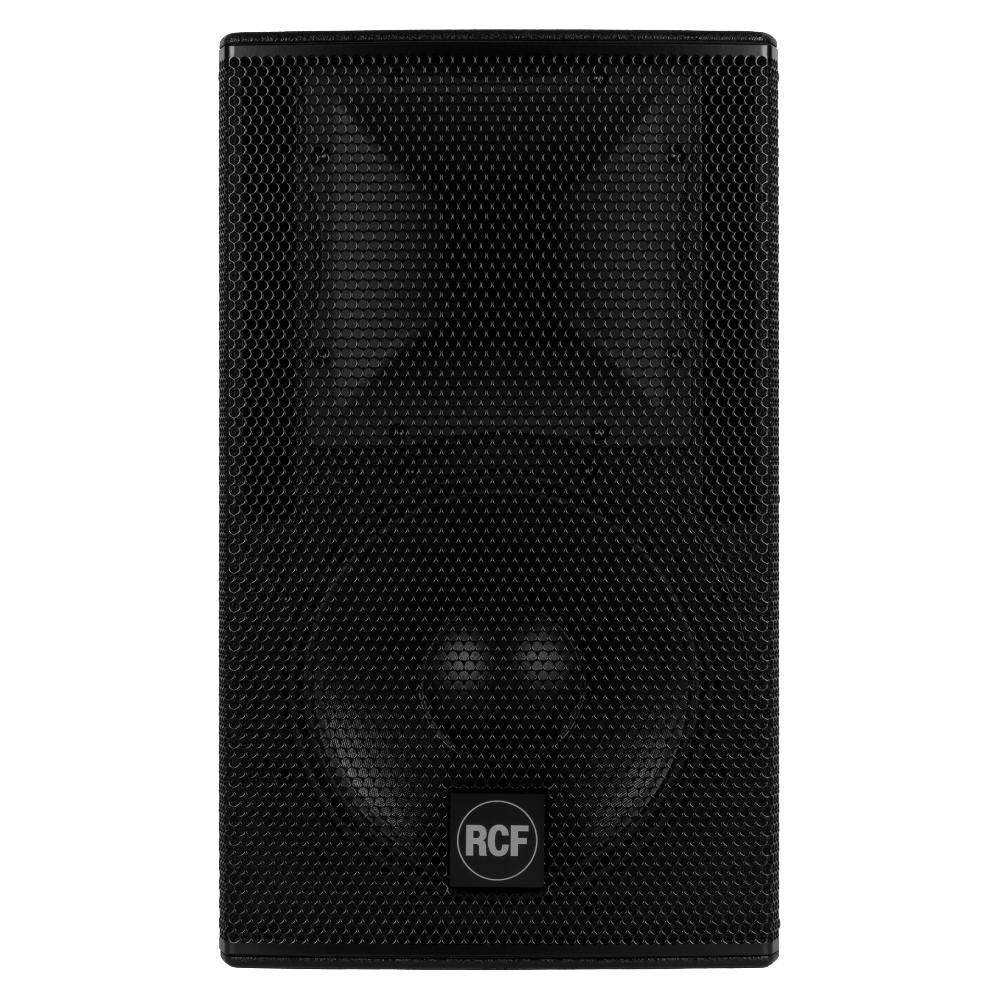

C 5212-W MKIII

TWO-WAY PROFESSIONAL SPEAKER

500 W power handling (RMS)
132 dB max SPL
54 - 20000 Hz frequency range
90° x 40° constant directivity (rotatable horn)

Donde comprar

Características

500 W power handling (RMS)
132 dB max SPL
54 - 20000 Hz frequency range
90° x 40° constant directivity (rotatable horn)
1 x 12" high power woofer
1 x 2.5" v.c. neodymium compression driver
High quality baltic birch plywood cabinet
Steel front grille
Installation points available on top, bottom, rear and side panels
Fullrange or bi-amp amplification design

COMPACT C 5212-W MKIII is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 2.5" voice coil neodymium compression driver, a 12" woofer, and a constant directivity rotatable waveguide produces coherent 90° x 40° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special extra-durable coating and a robust powder-coated grille. Optional mounting accessories allow both horizontal and vertical wall installation. The crossover is easily bypassed for bi-amp via a recessed changeover switch

AVAILABLE ON ORDER

Part number:

13000603
C 5212-W MKIII
EAN 8024530016951

Especificaciones acusticas

Respuesta en frecuencia (-10 dB)

54 Hz - 20000 Hz

SPL máx. a 1 m

132 dB

Ángulo de cobertura horizontal

90°

Ángulo de cobertura vertical

40°

Índice de directividad (Q)

Sensibilidad del sistema

99 dB

Sección de potencia

Amplification

Full Range

Impedancia nominal

8 ohm

Manejo de potencia

500 W

Manejo de potencia pico

2000 W PEAK

Protecciones

Dynamic active mosfet

Frecuencias de cruce

1200 Hz

Amplificador recomendado

QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K

Transductores

Motor de compresión

1 x 1.4'' neo, 2.5'' v.c

Altavoz de bajos

1 x 12'', 3.0'' v.c

Sección de entrada/salida

Conectores de entrada

Speakon® NL4

Conectores de salida

Speakon® NL4

Cumplimiento estándar

Safety agency

CE compliant

Especificaciones físicas

Material del gabinete/de la caja

Baltic birch plywood

Hardware

9 x M10 inserts

Montaje en barra/tapa

35 mm insert

Rejilla

Steel

Color

Black - RAL 9005

Tamaño / Peso

Altura

601 mm / 23.66 inches

Ancho

364 mm / 14.33 inches

Profundidad

385 mm / 15.16 inches

Peso

23 kg / 50.71 lbs

Informaciones de envío

Altura de paquete

670 mm / 26.38 inches

Anchura de paquete

470 mm / 18.5 inches

Profundidad de paquete

490 mm / 19.29 inches

Peso de paquete

27 kg / 59.52 lbs
