S 29 WP

HIGH-POWER WEATHERPROOF SUBWOOFER

Up to 3000 W power handling
143 dB max SPL
25 ÷ 200 Hz frequency range
2 x 19" HyperVented Neodymium Woofer with 4’’ v.c.

WEATHERPROOF

Where to buy

Features

Up to 3000 W power handling
143 dB max SPL
25 ÷ 200 Hz frequency range
2 x 19" HyperVented Neodymium Woofer with 4’’ v.c.
High-quality polyurea-coated multi-ply cabinet
Steel grille with water-repellent protection
Integrated M20 threaded pole mount on top
2 x Amphenol eco|mate IP 67 connectors

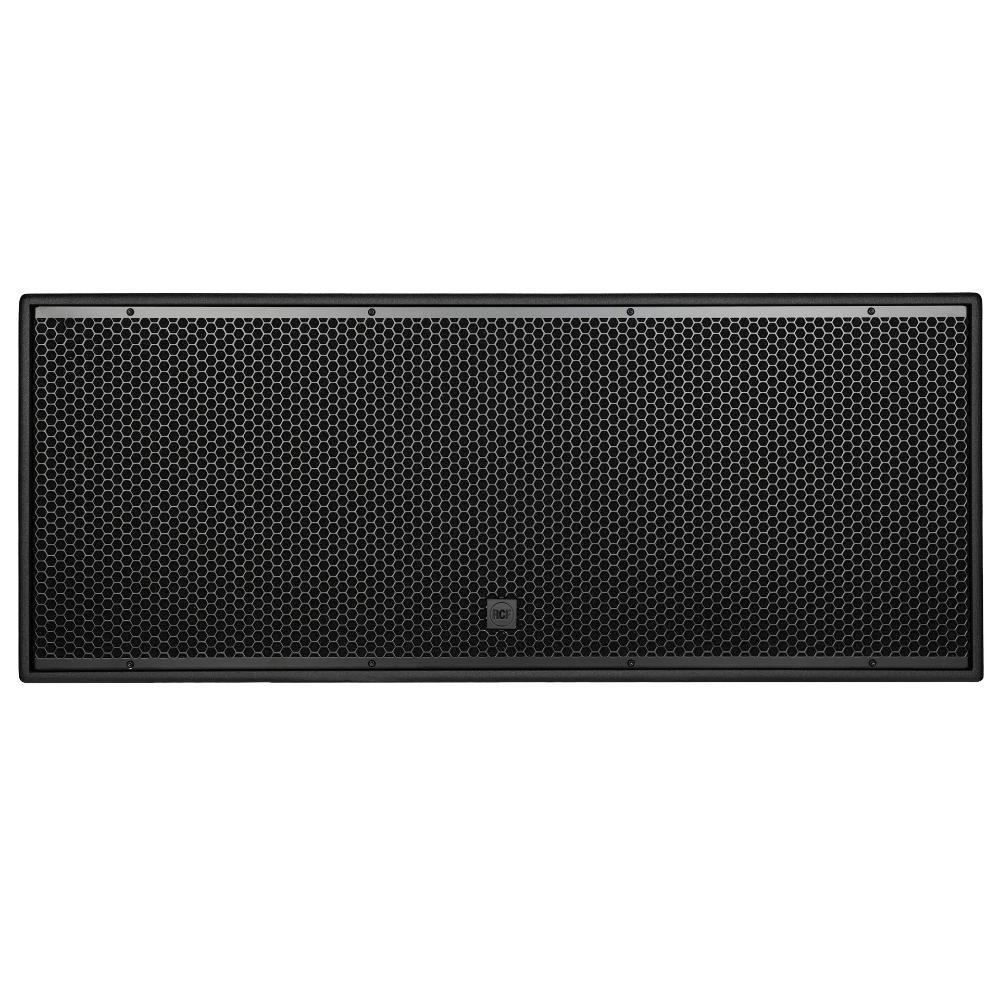

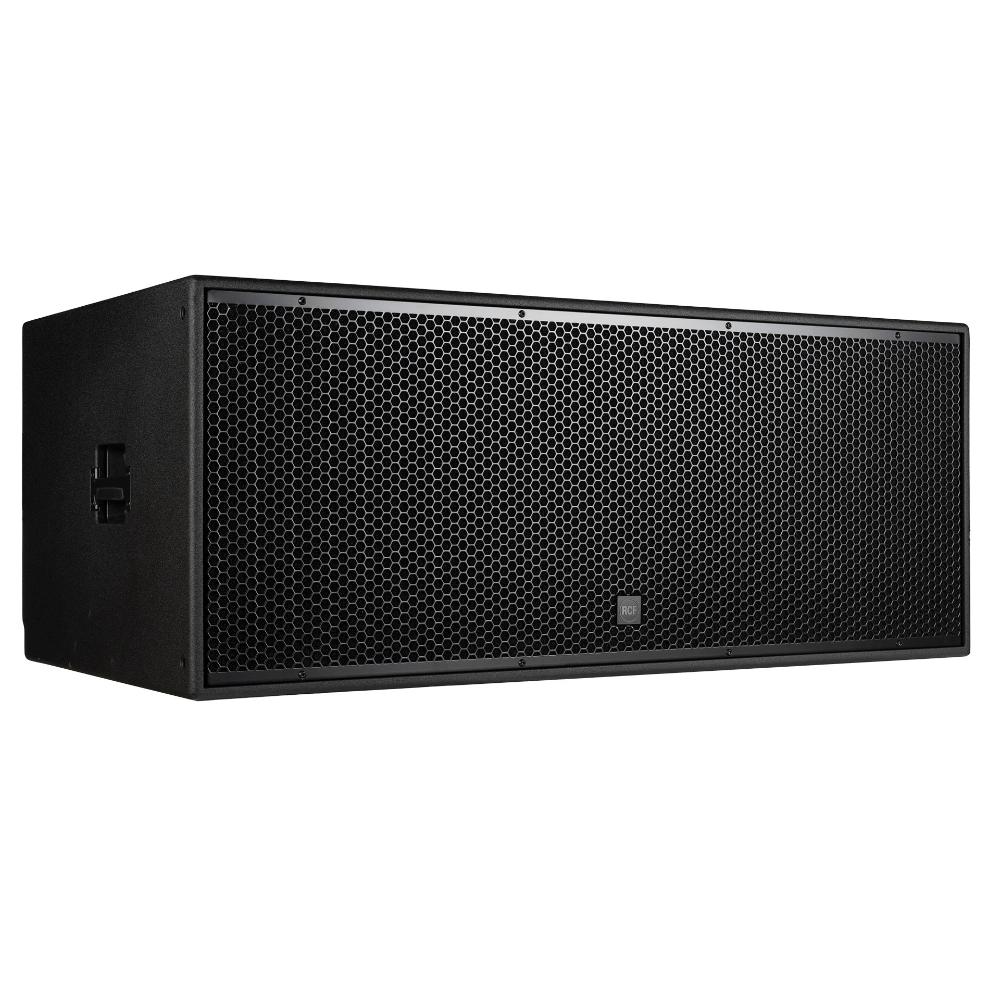

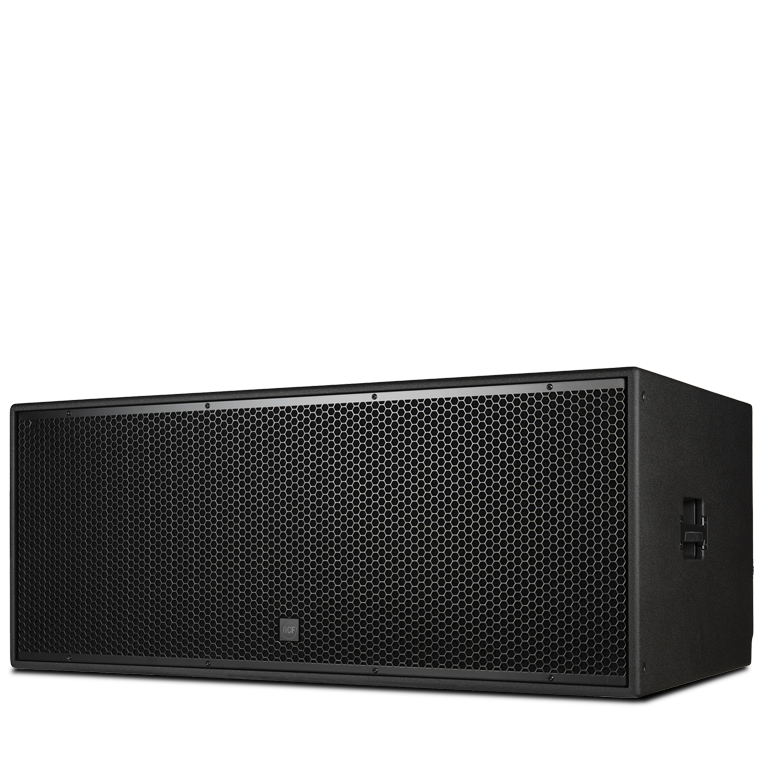

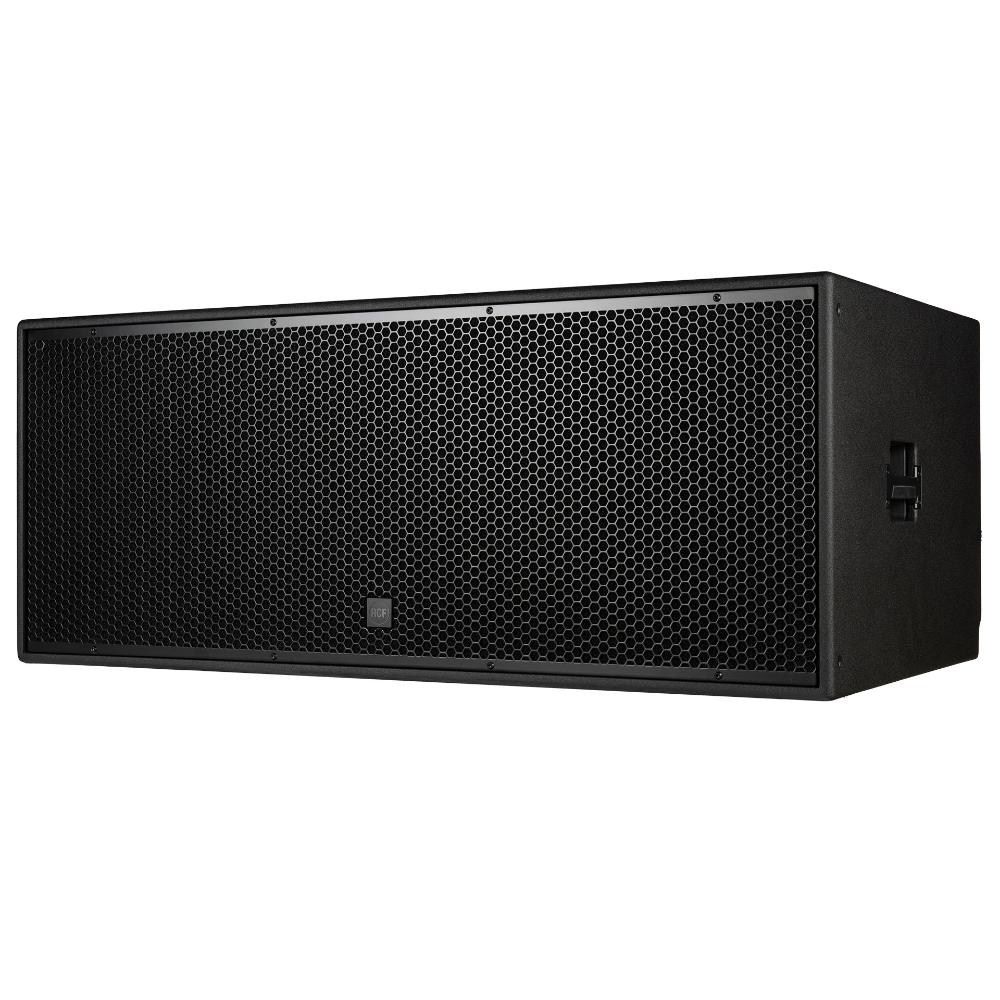

S 29 WP is a high-power dual 19” cone subwoofer suitable for high-powered outdoor applications. The bass-reflex design ensures an efficient acoustic response down to 25 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. An M20 pole mount adapter is provided on top of the cabinet, with handles on both sides. The enclosure can be ground-stacked and cardioid-arrayable for improved rear rejection. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric discreetly embedded within the grille assembly and IP67 Amphenol Ecomate power connectors.

NEW

Part number:

13100108
S 29 WP
EAN 8024530022334

Recommended Power Amp

XPS SERIES

4 x 4000 W

Class D continuous power
at 2.7 Ohms

40-bit Floating-point
Processing at 96 kHz

Ready-to-Use
Configurations and presets
for RCF speakers

2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O

Advanced Fault Protections
for each amplifier channel and power supply

DISCOVER xps sERIES

Advanced Transducer Technology

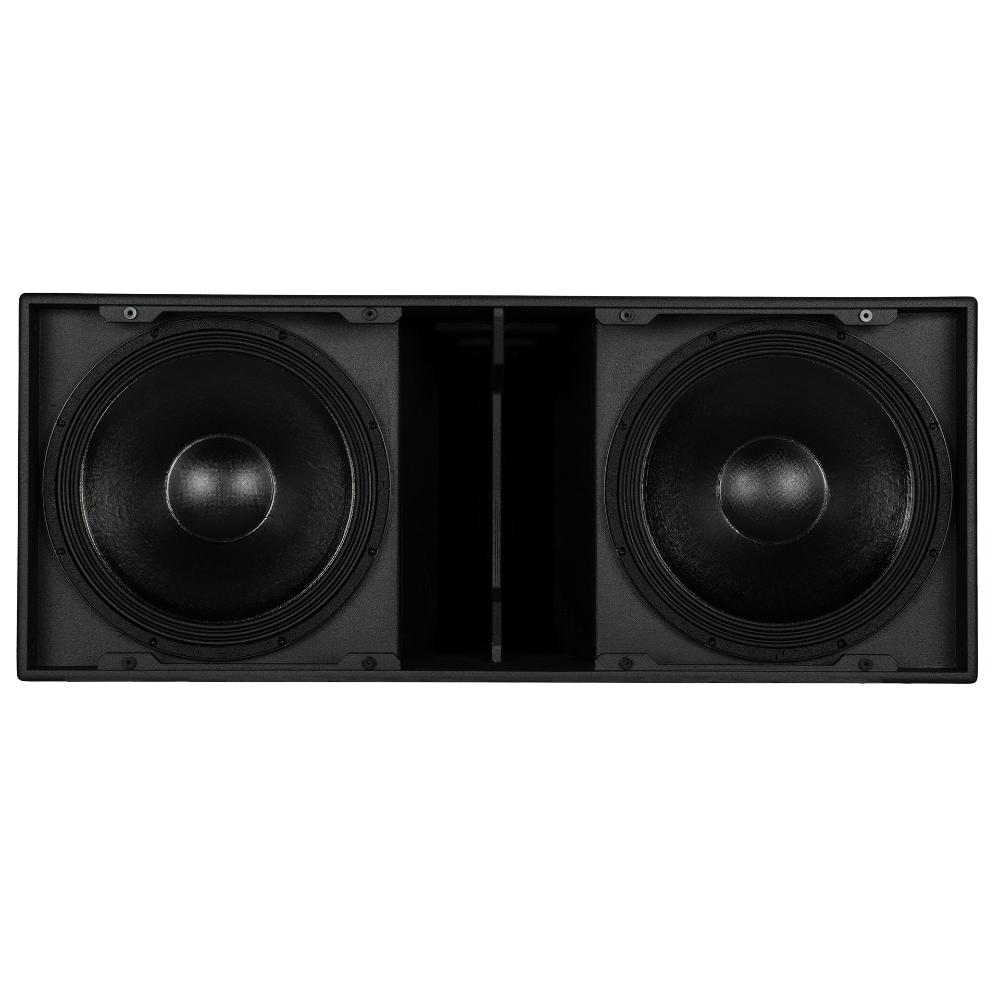

S Series subwoofers incorporate the latest transducer technology from our labs. The 19-inch cone size is the ideal balance between the traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) gains high power with fast acceleration. Despite their small and lightweight footprints, S 29 and S 19 produce powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.

Weatherproof. Impact-Resistant. Built to Last.

S Series enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection. The coating also withstands abrasion, impacts, mechanical stress, and its high elasticity maintains flexibility even in low temperatures. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric seamlessly integrated into the powder-coated metal grille assembly, along with IP67-rated Amphenol eco|mate power connectors on the back panel.

Acoustical specifications

Frequency Response (-10dB)

25 Hz ÷ 200 Hz

Max SPL @ 1m

143 dB

Power section

Amplification

Full Range

Nominal Impedance

4 ohm

Power Handling

3000 W

Peak Power Handling

12000 W PEAK

Recommended Amplifiers

XPS 16K, XPS 16KD

Transducers

Woofer

2 x 19'' neo, 4.0'' v.c

Input/Output section

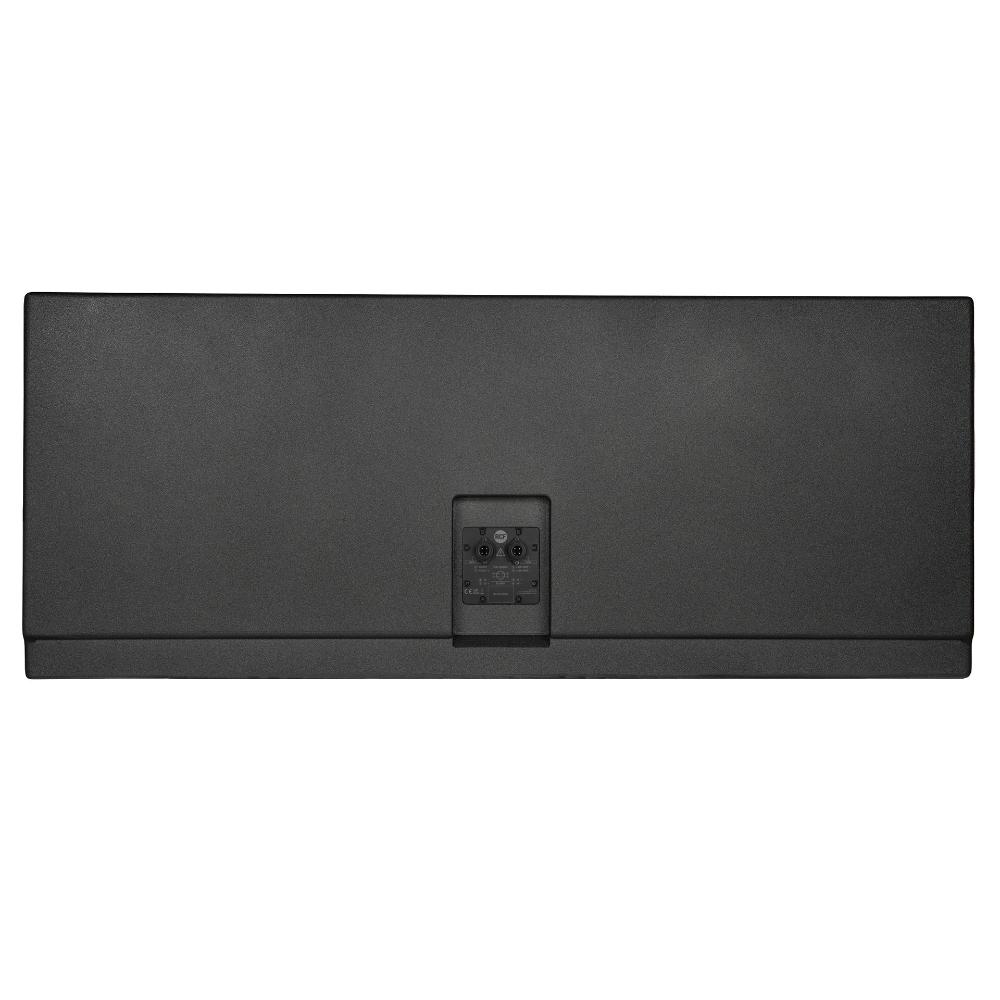

Input connectors

Amphenol eco/mat IP 67

Output connectors

Amphenol eco/mat IP 67

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Plywood

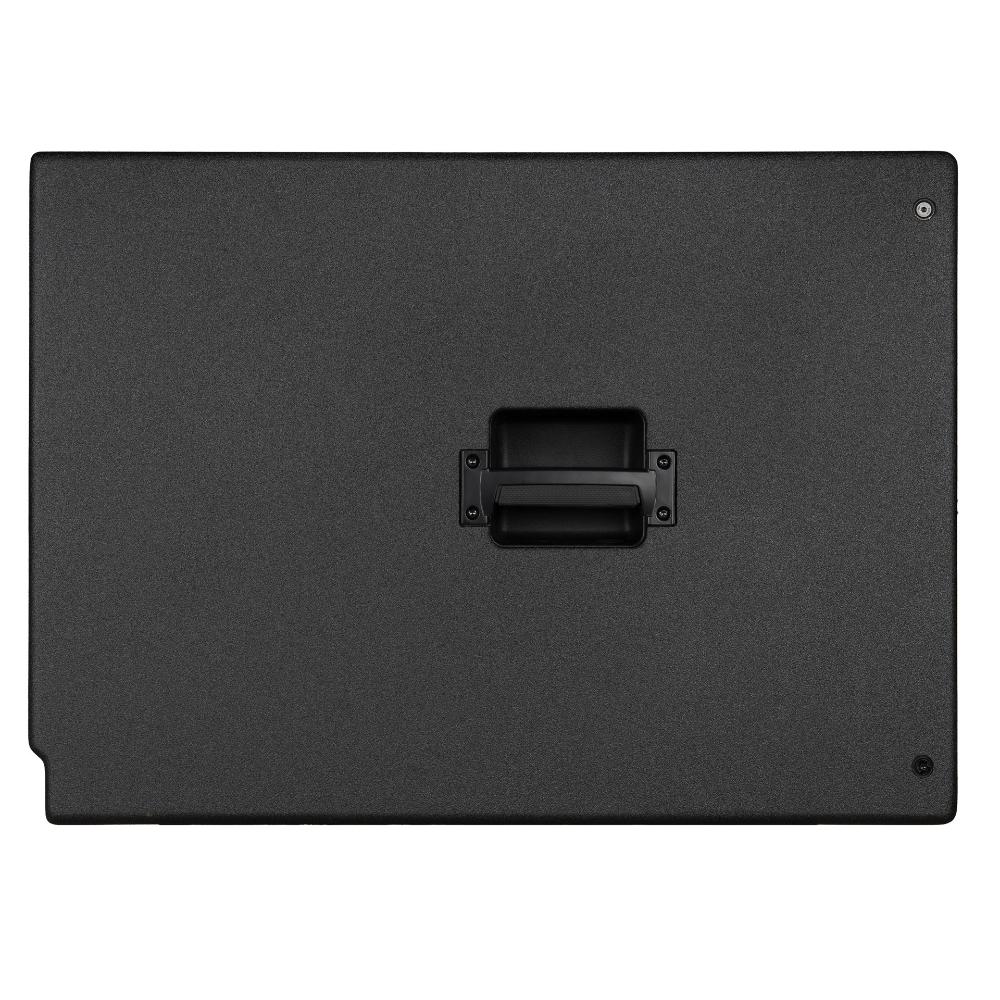

Handles

2 side

Pole mount/Cap

M20 thread

Grille

Steel grille with water-repellent protection

Size / Weight

Height

534 mm / 21.02 inches

Width

1300 mm / 51.18 inches

Depth

730 mm / 28.74 inches

Weight

85 kg / 187.39 lbs

Shipping information

Package Height

620 mm / 24.41 inches

Package Width

1360 mm / 53.54 inches

Package Depth

800 mm / 31.5 inches

Package Weight

90 kg / 198.42 lbs

S 29 WP HIGH-POWER BASS REFLEX SUBWOOFER
