TT+ TOURING

TT 10-A

ACTIVE TWO-WAY HIGH DEFINITION SPEAKER

130 dB SPL Max
1000W RMS, two-way Class-D amplifier
Rotatable 90° x 70° Constant Directivity Horn
Quick Fit Bracket Socket

RDNet

FiRPHASE

BASS MOTION CONTROL

Where to buy

Features

130 dB SPL Max
1000W RMS, two-way Class-D amplifier
Rotatable 90° x 70° Constant Directivity Horn
Quick Fit Bracket Socket
FiRPHASE

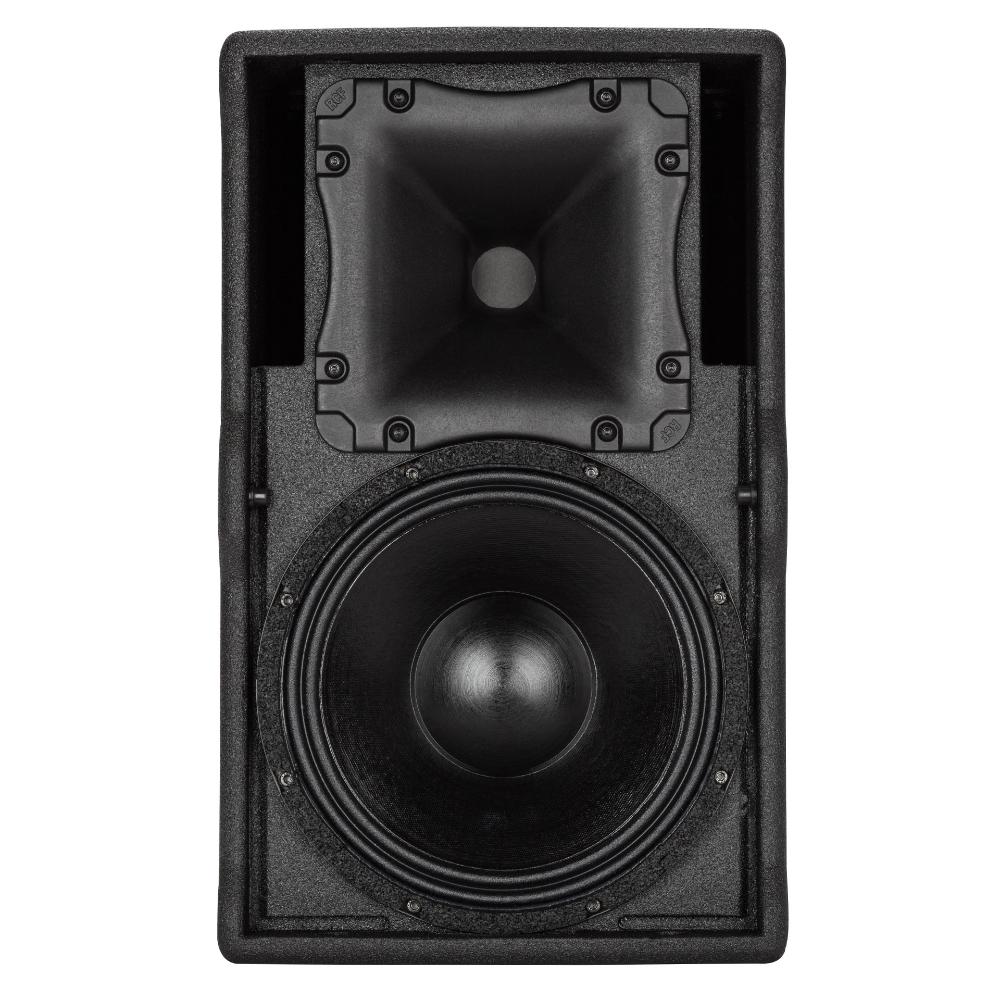

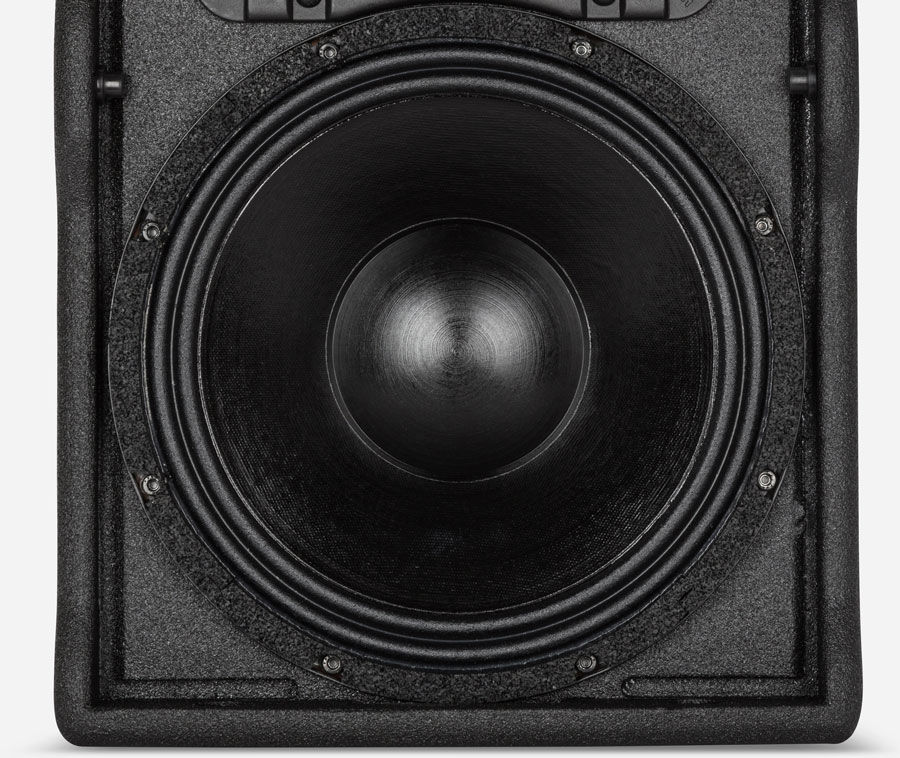

10’’ neodymium Woofers, 2.5’’ voice coil
Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
RDNet Networked Management
60 ÷ 20000 Hz Frequency Range

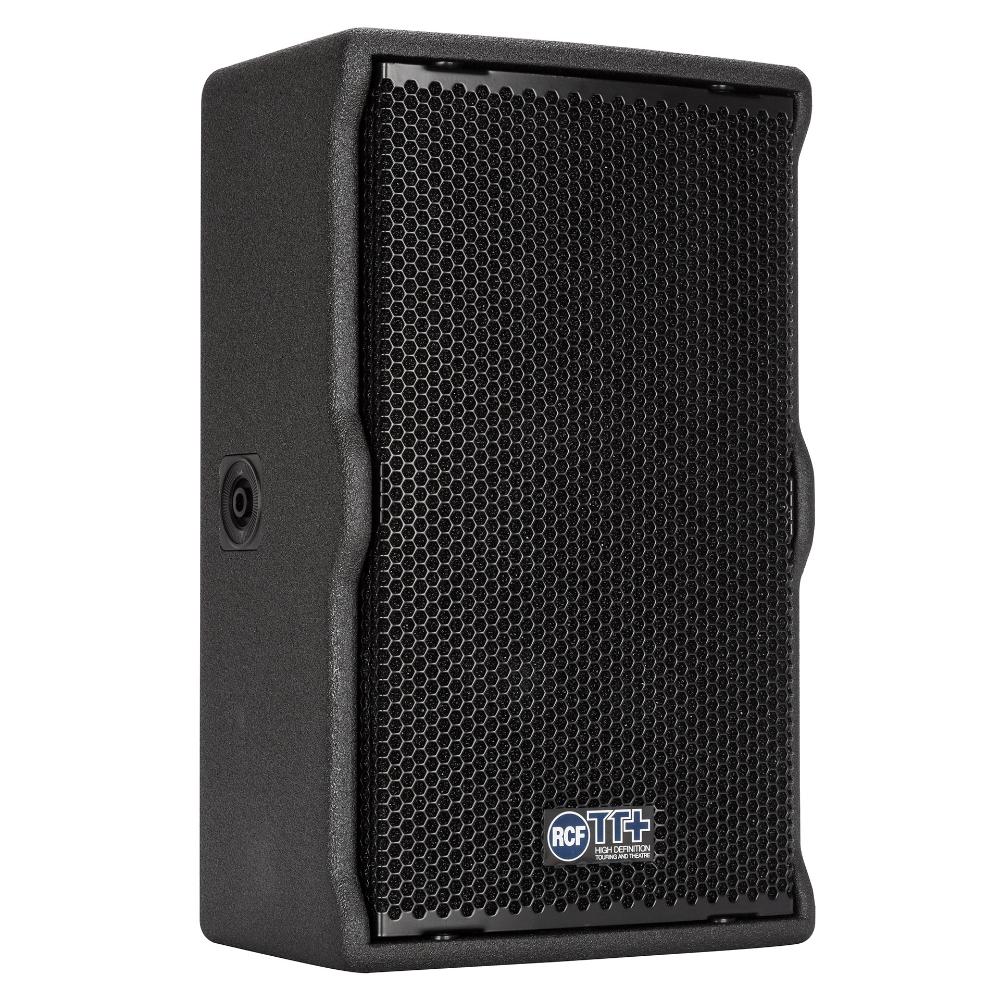

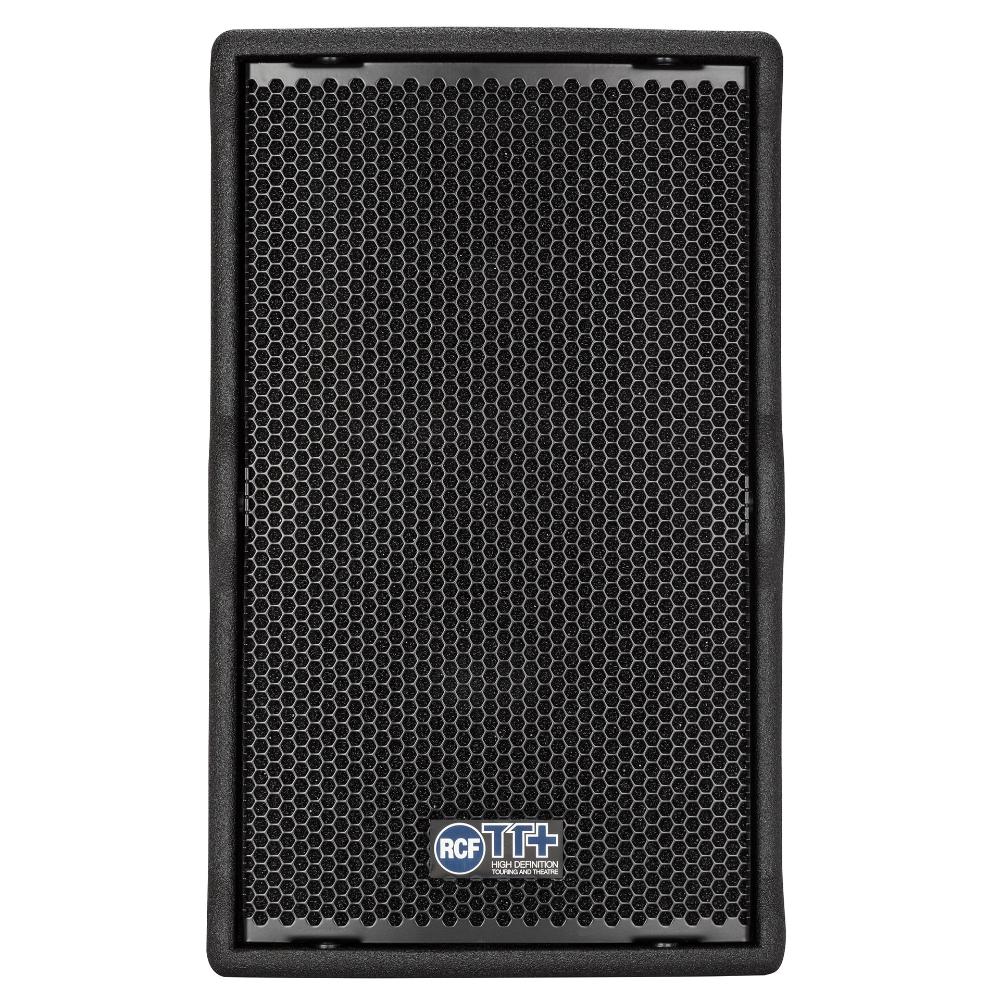

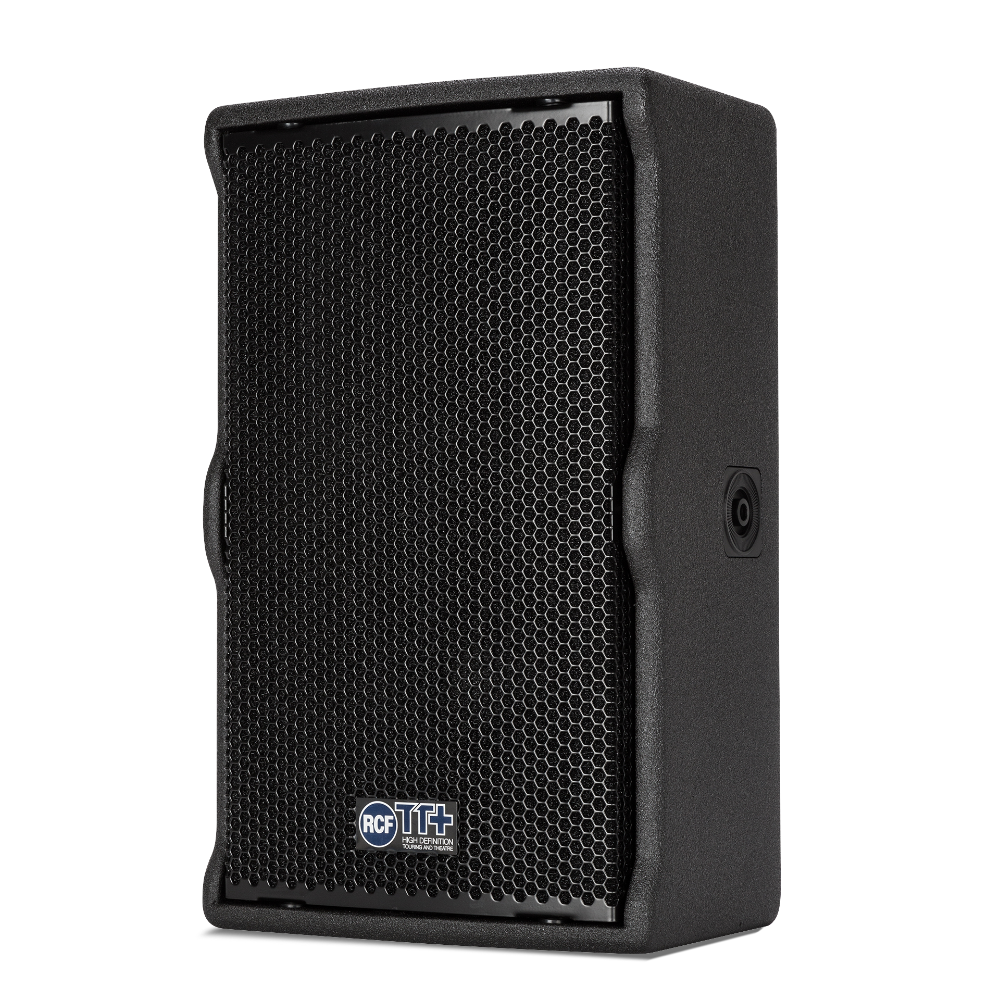

With 130 dB SPL power and a small footprint, the active two-way RCF TT10-A speaker saves the day when you need top quality sound power and unobtrusive size. Though remarkably compact and lightweight, the TT10-A offers the distinguished high-end TT+ sound quality, DSP capabilities, networked control, rugged hardware and a complete set of rigging options.

RDNet Software

Part number:

13000549
TT 10-A
220-240V, EAN 8024530017125

13000559
TT 10-A
115V, EAN 8024530017200

NETWORKED CONTROL AND MUCH MORE

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

Touring & theatre performance

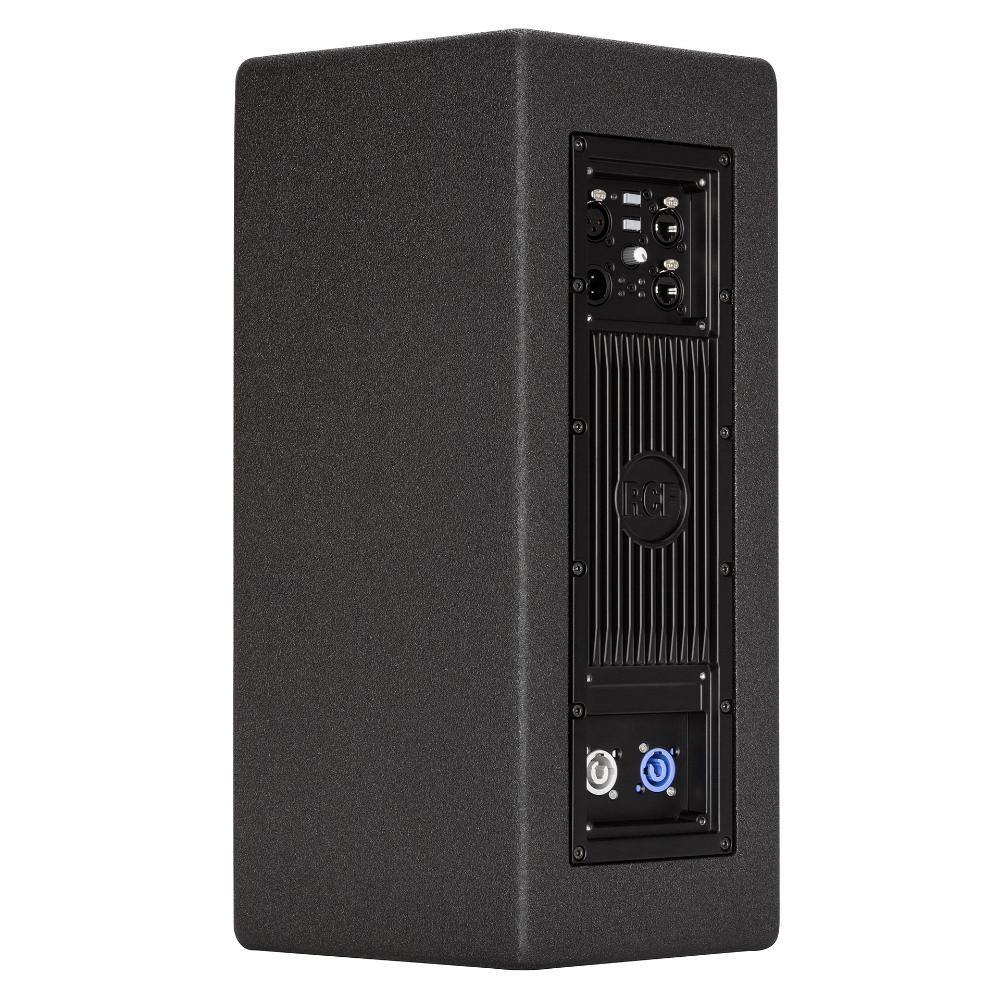

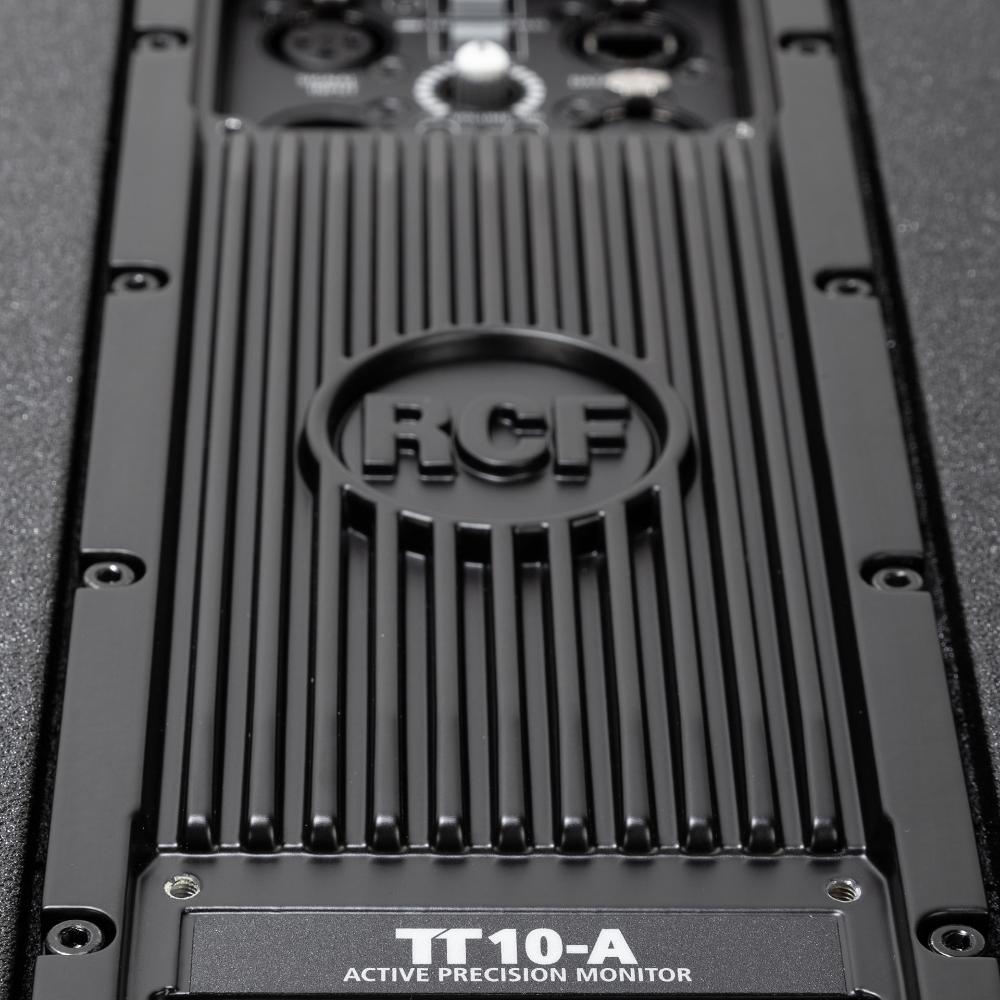

The innovative transducer design ensures extreme power-handling, making the TT 10-A the right choice for top demanding applications. The onboard DSP provides linear phase filters and crossover, system equalization, polarity control, fast limiter, RMS limiter and configuration control from the back panel or advanced management via RDNet.

Mutliple applications

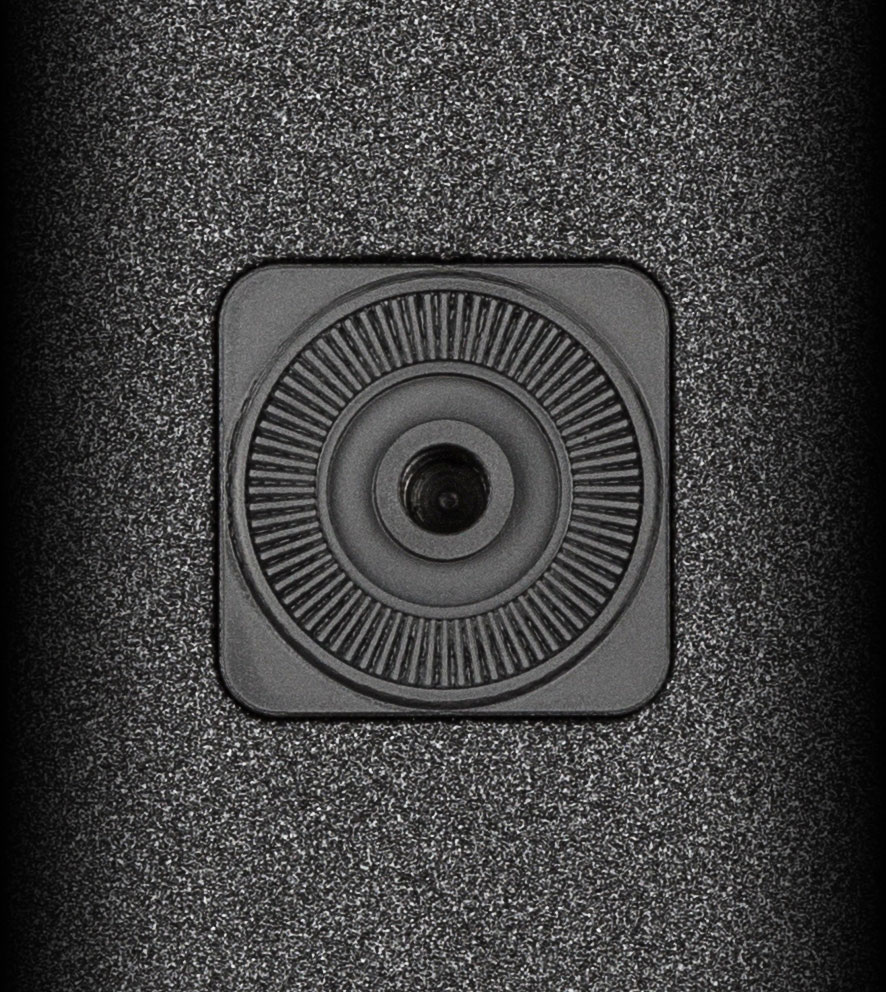

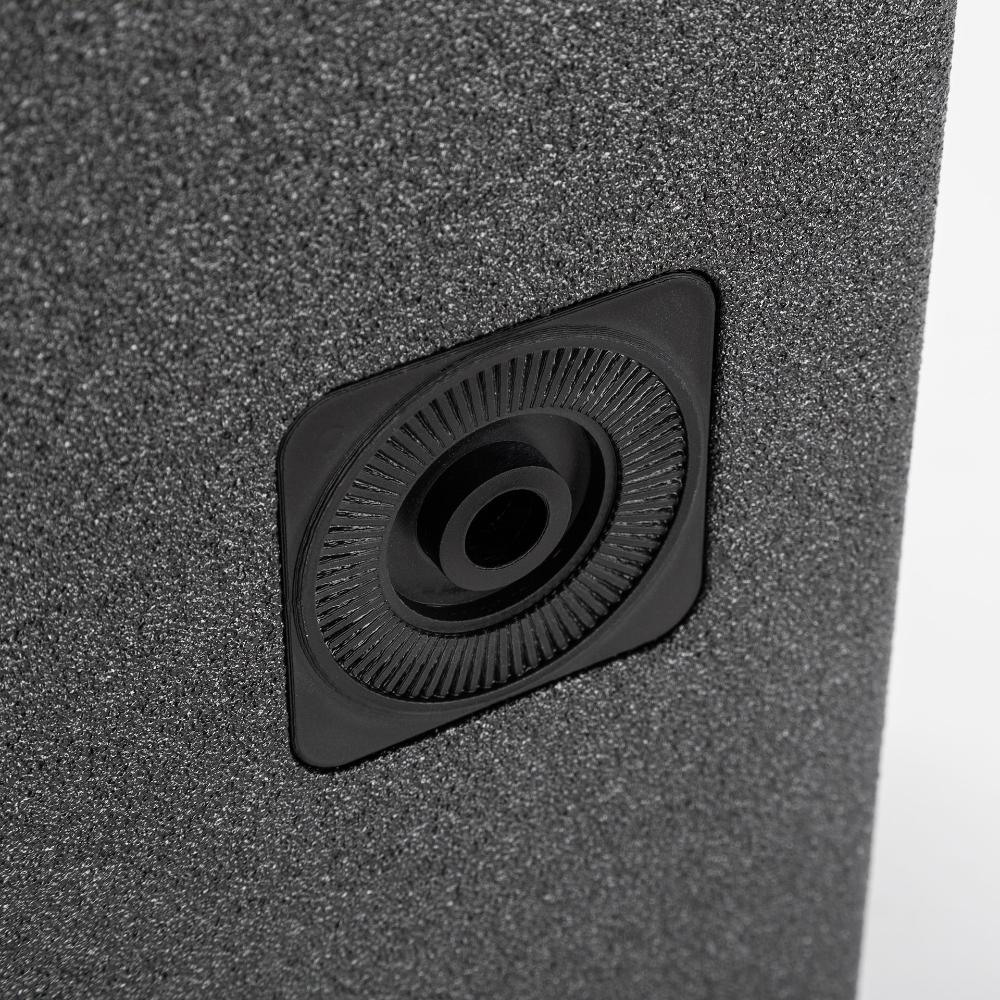

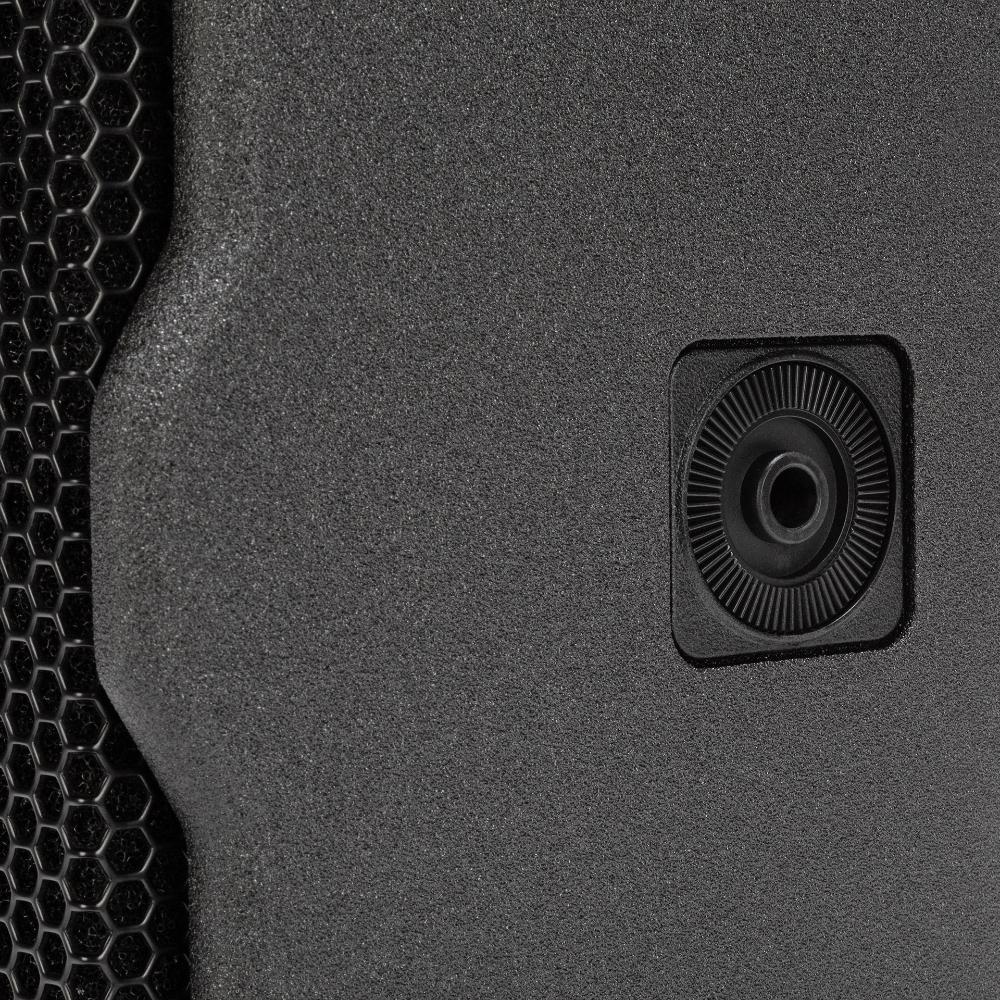

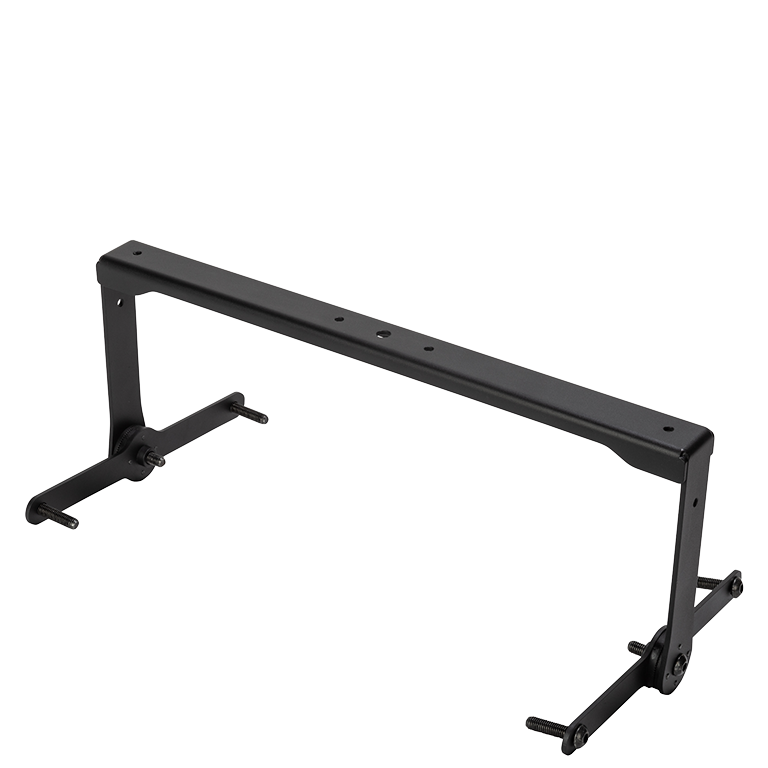

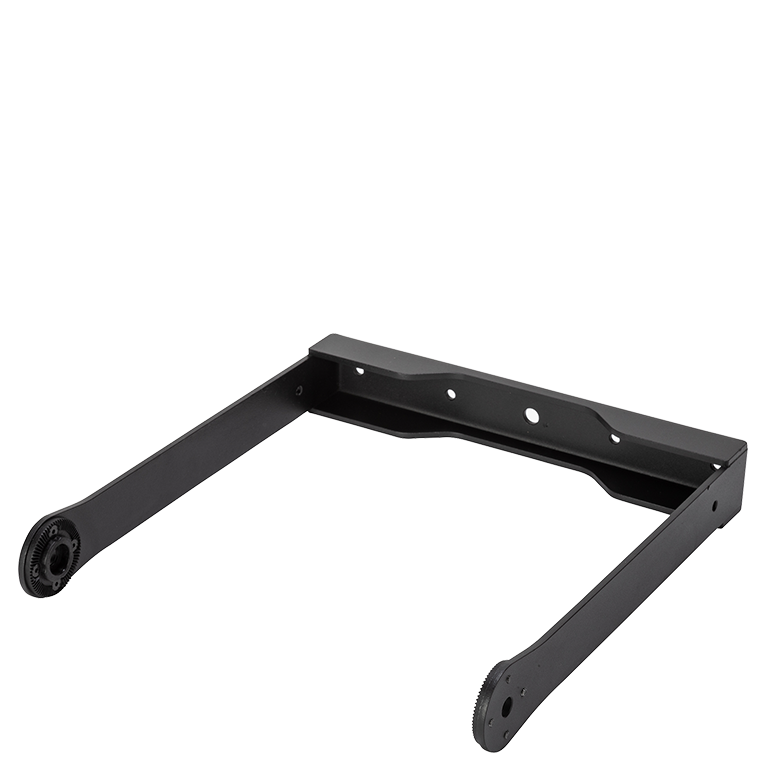

Innovative quick fit bracket socket for easy set-up and stable rigging.

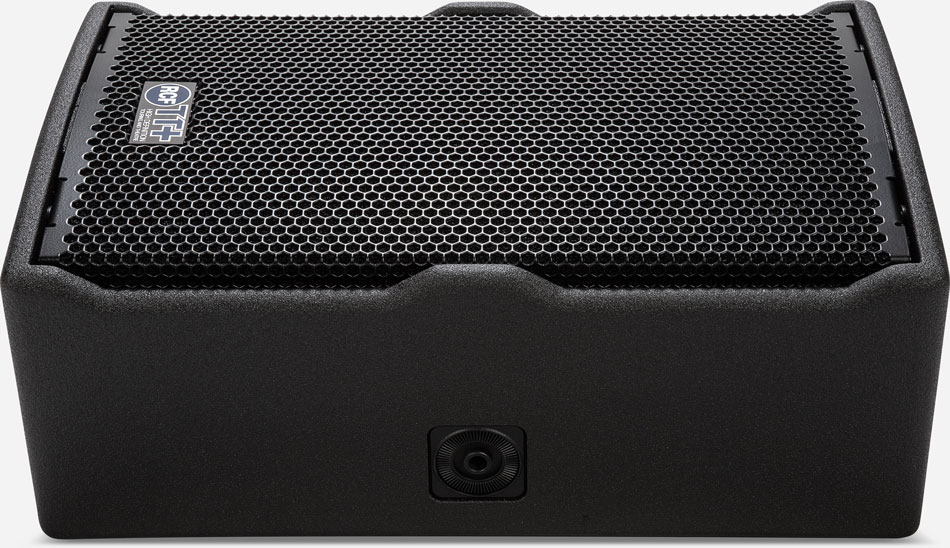

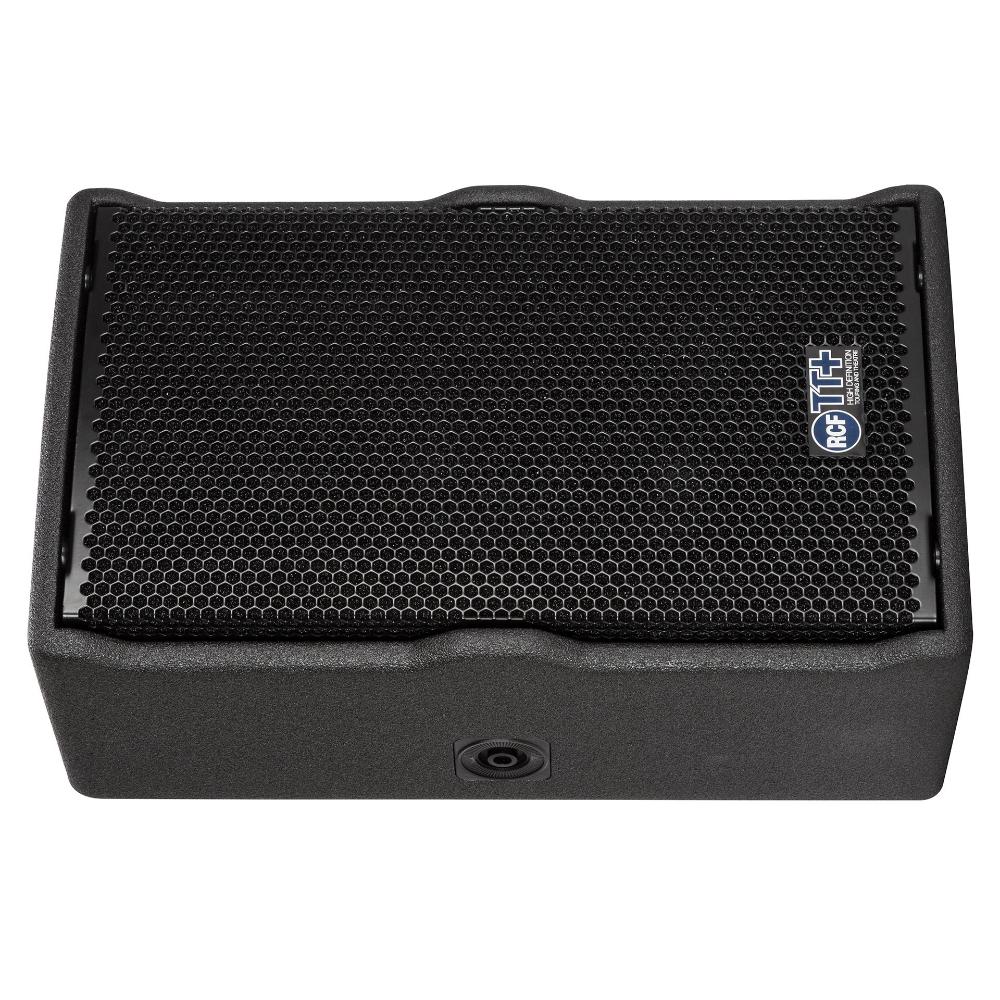

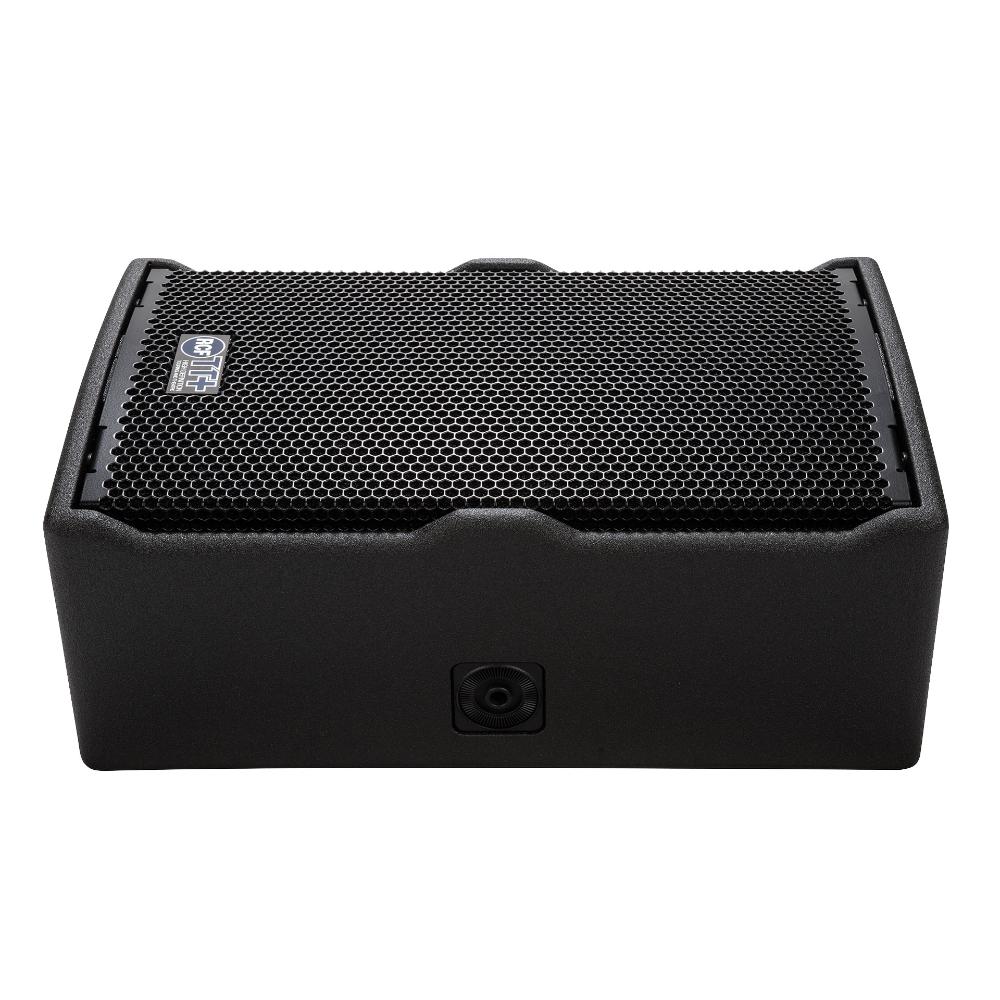

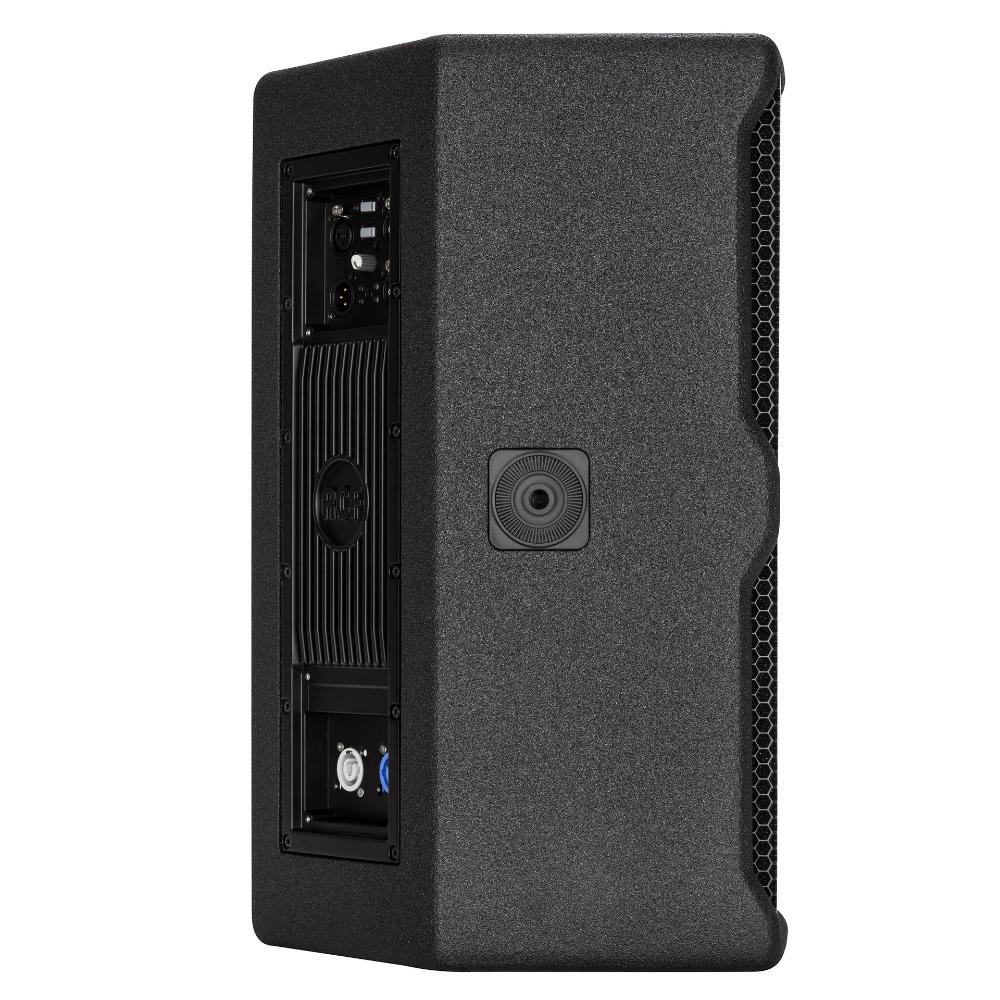

Pole mount, top and bottom M10 suspension points, quick fit bracket side sockets and a forged aluminum handle with rubber handgrip on top: the TT 10-A cabinet it is fully equipped for every application. One side of the cabinet presents a 35° angle, perfect for stage monitoring.

Durable and sturdy

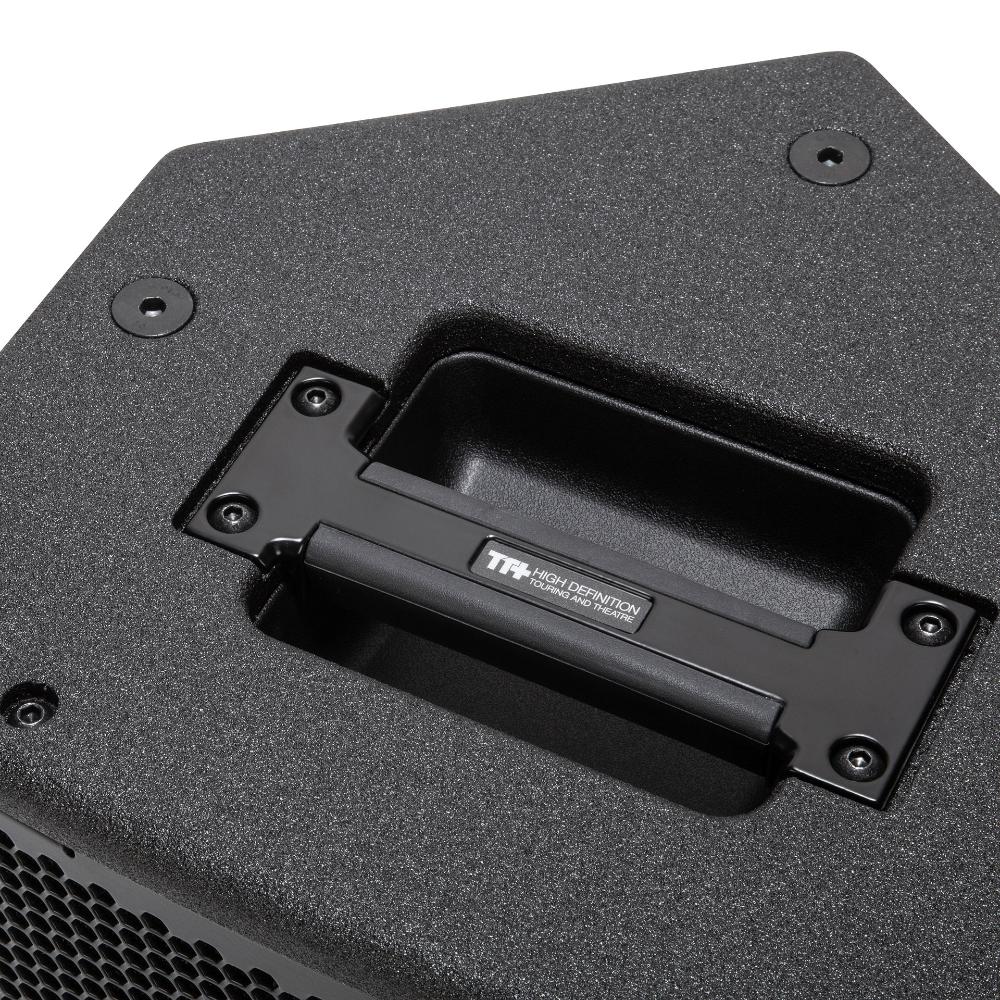

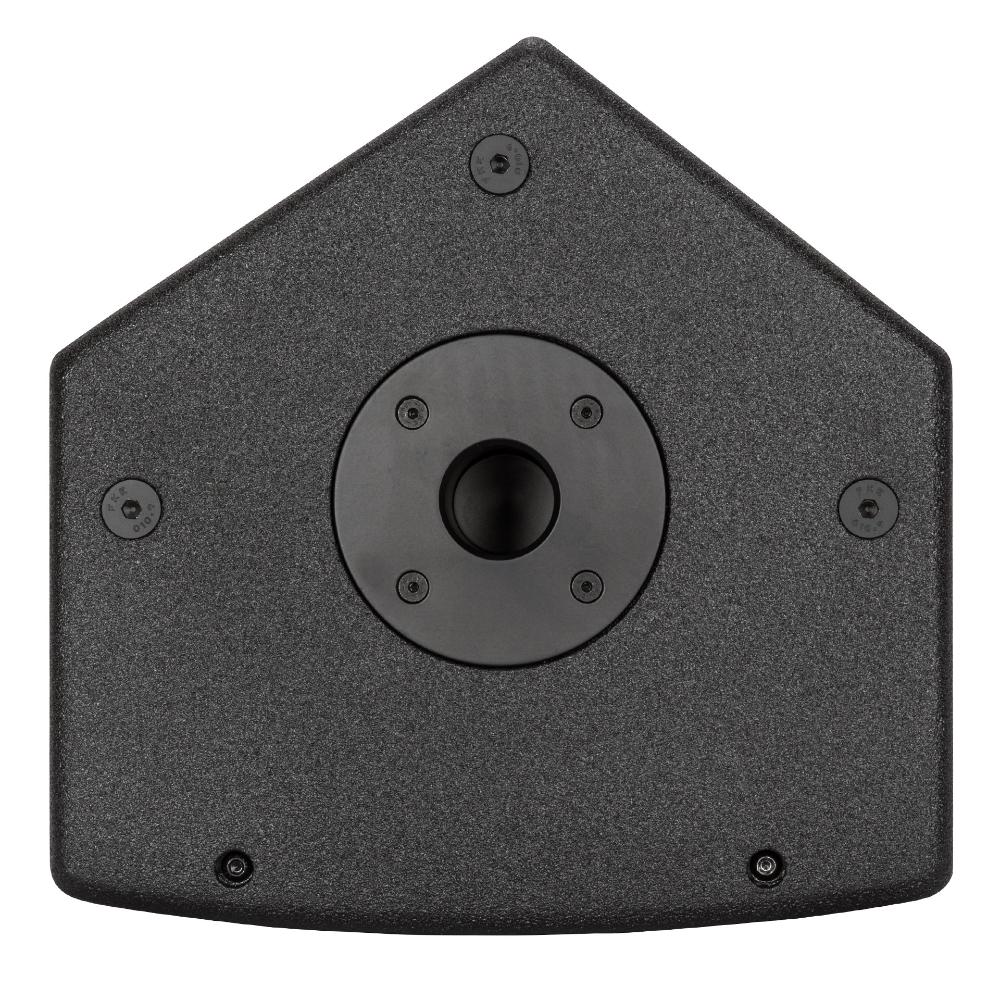

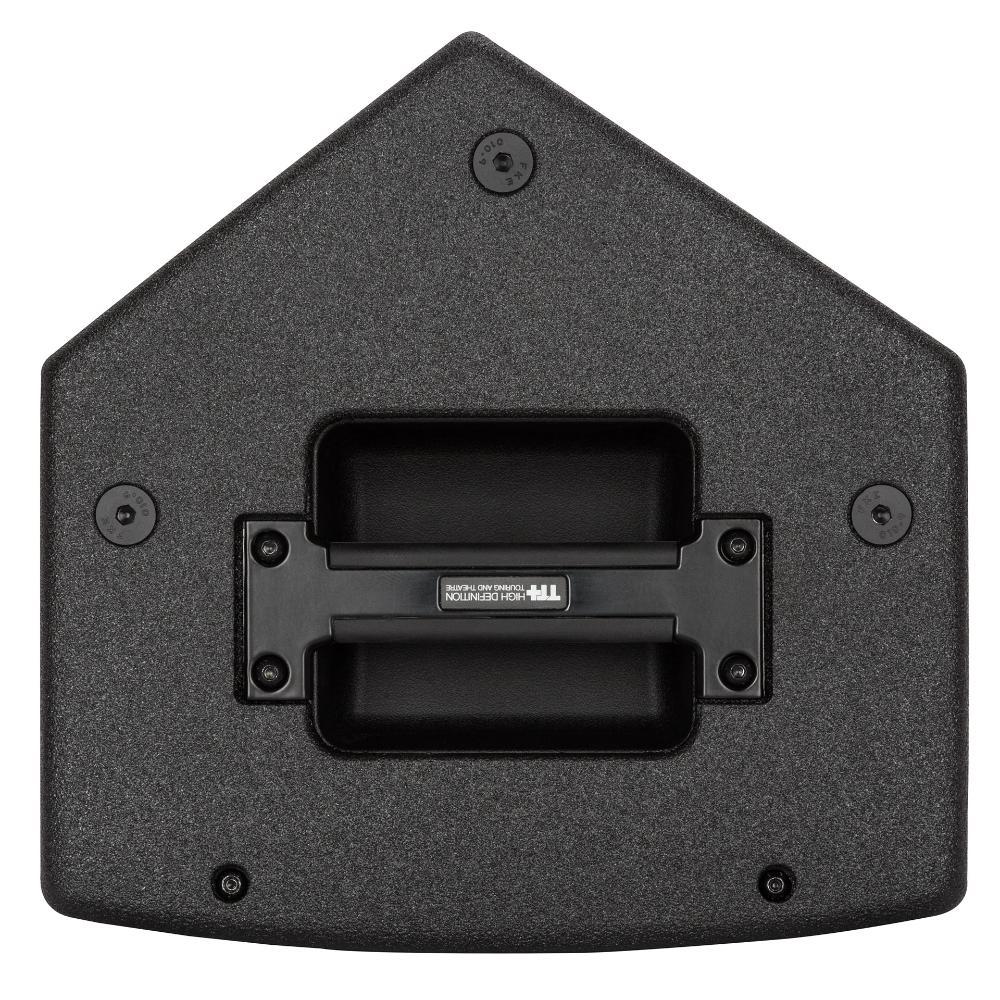

The cabinets feature an aluminum top handle designed to facilitate transport positioning and loading operations. A bottom pole socket allows the use as a point source sound system on a stand or subwoofer pole. The speaker cabinet is made of high-quality Baltic birch plywood with a special adhesive to glue every layer; this makes the cabinet completely water resistant even before the special polyurea paint, applied to make it highly resistant to scratches and bumps.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
