TT+ TOURING

TT 22-A II

ACTIVE HIGH OUTPUT TWO-WAY SPEAKER

1100 W Class D Amplifier
12" neo woofer, 3.5" mm voice coil
1.5 " neo c. driver, 3.0" mm voice coil
Onboard RDNet Control

RDNet

FiRPHASE

BASS MOTION CONTROL

Where to buy

Features

1100 W Class D Amplifier
90 x 60 constant directivity coverage angle
12" neo woofer, 3.5" mm voice coil
1.5 " neo c. driver, 3.0" mm voice coil
DSP Processing
Onboard RDNet Control
Multifunctional cabinet
Very high output

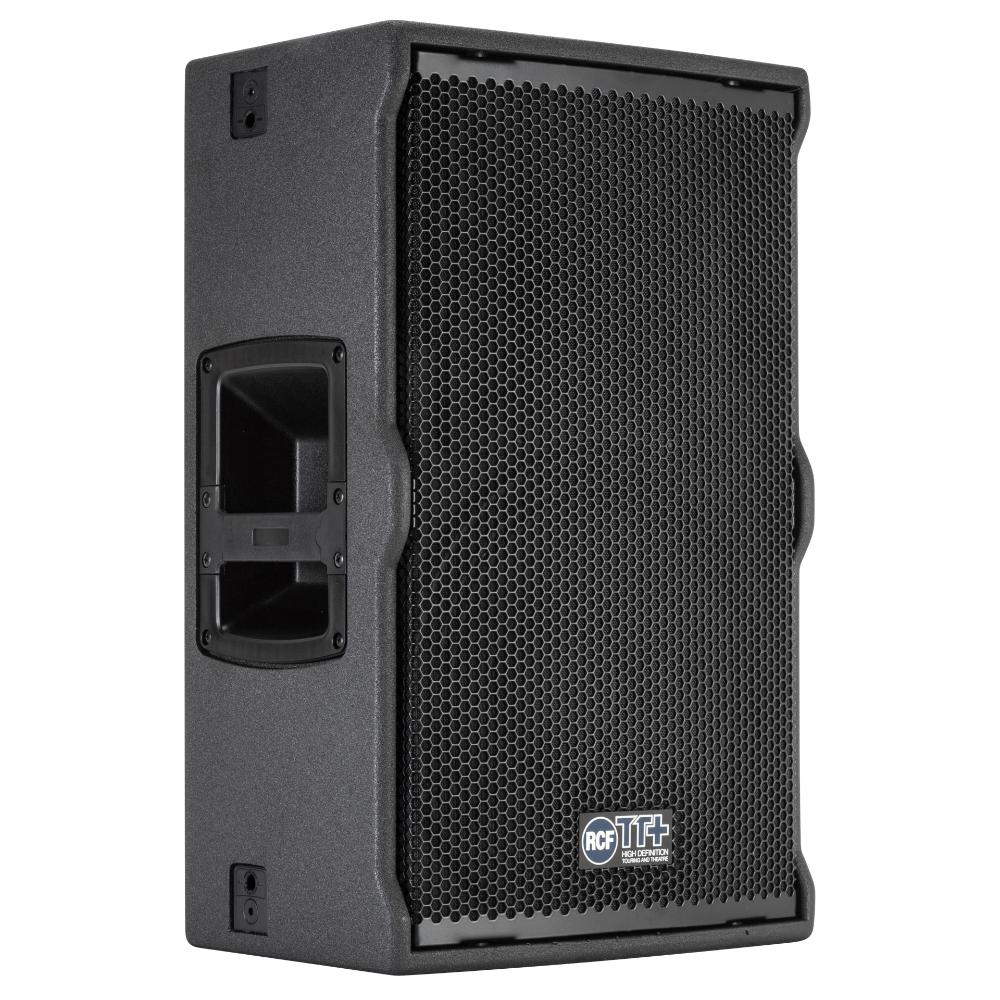

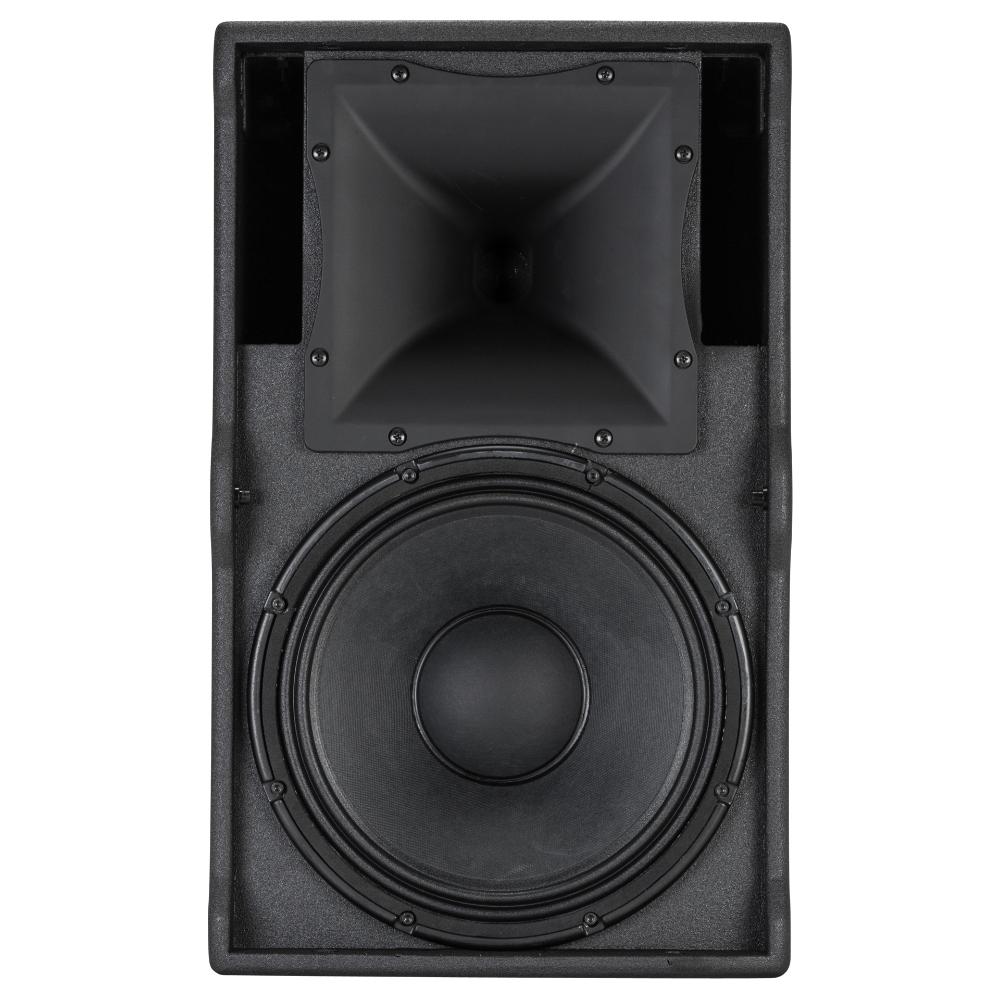

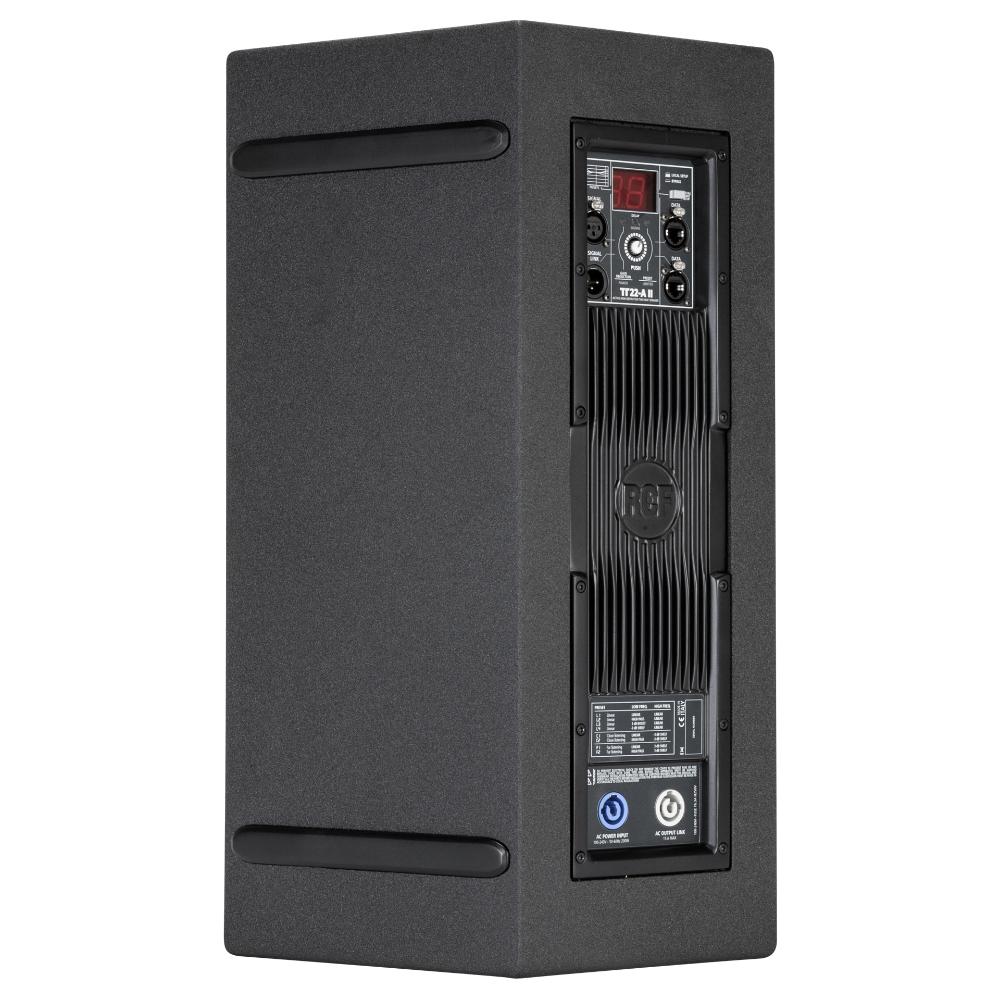

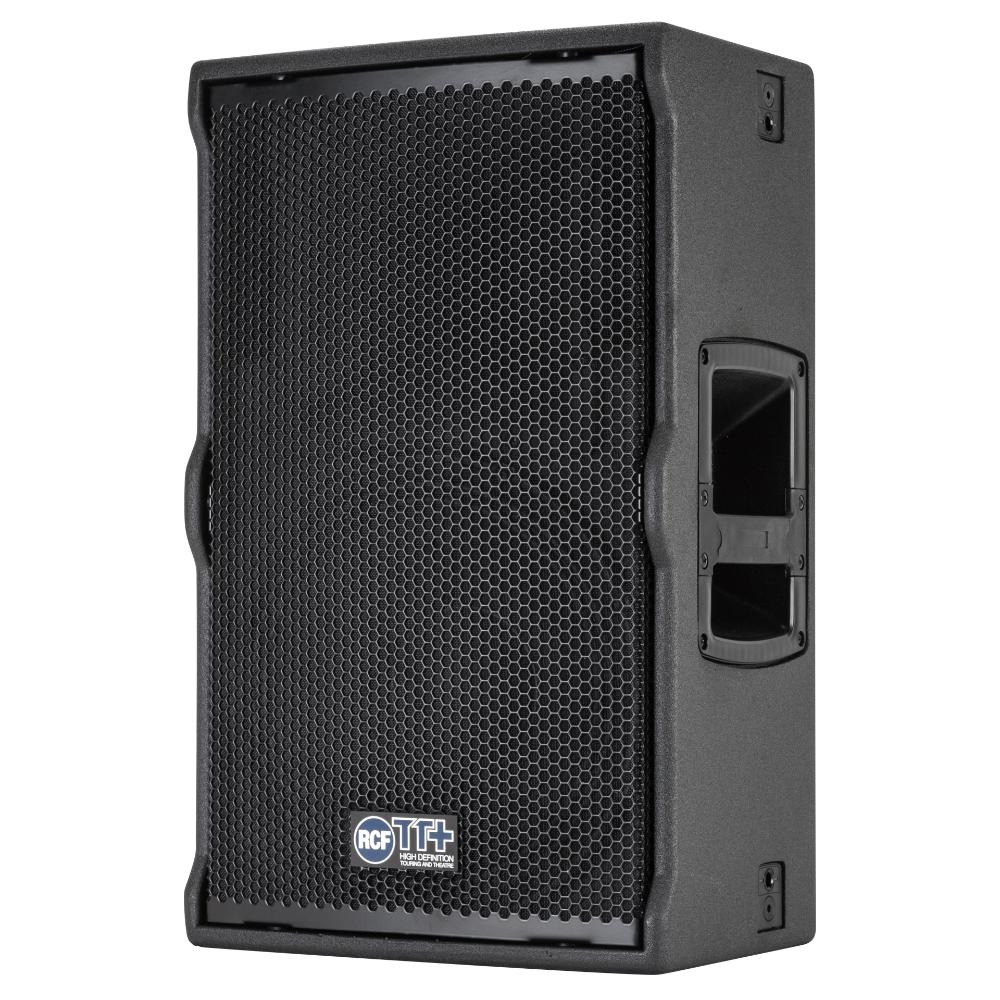

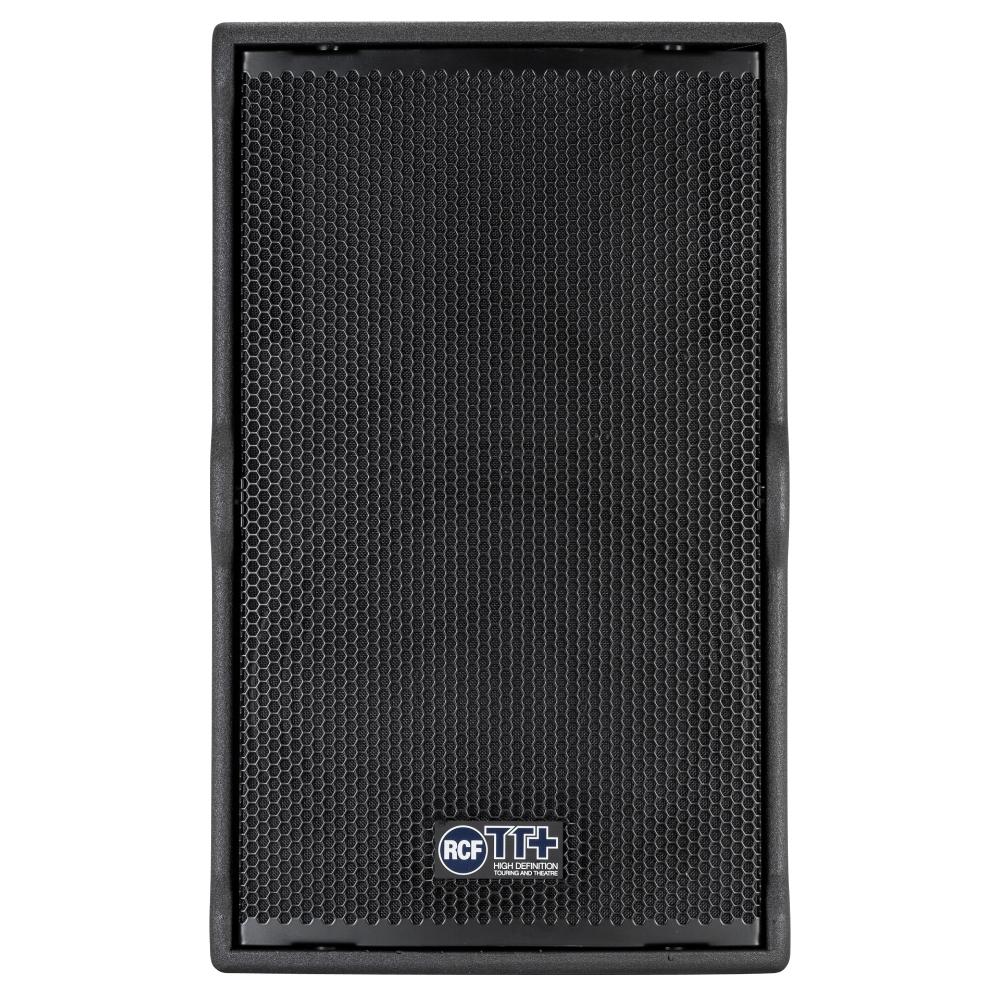

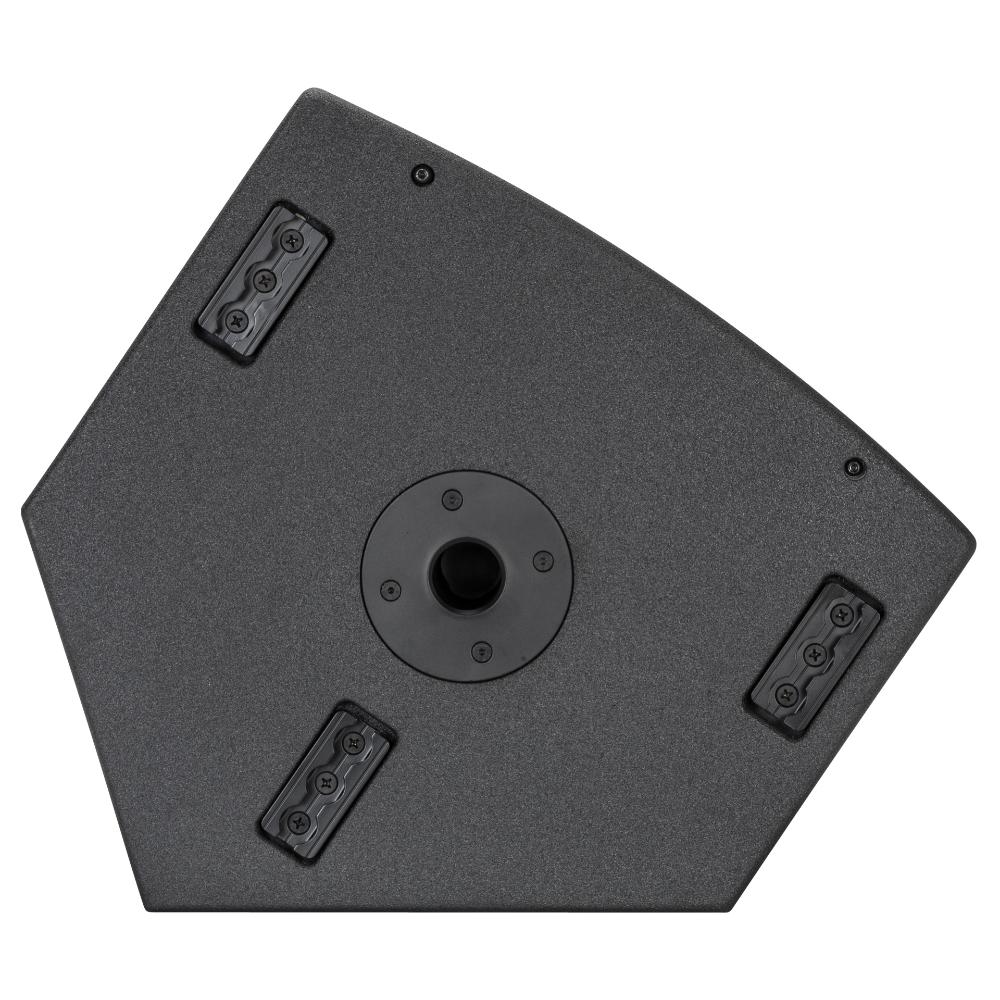

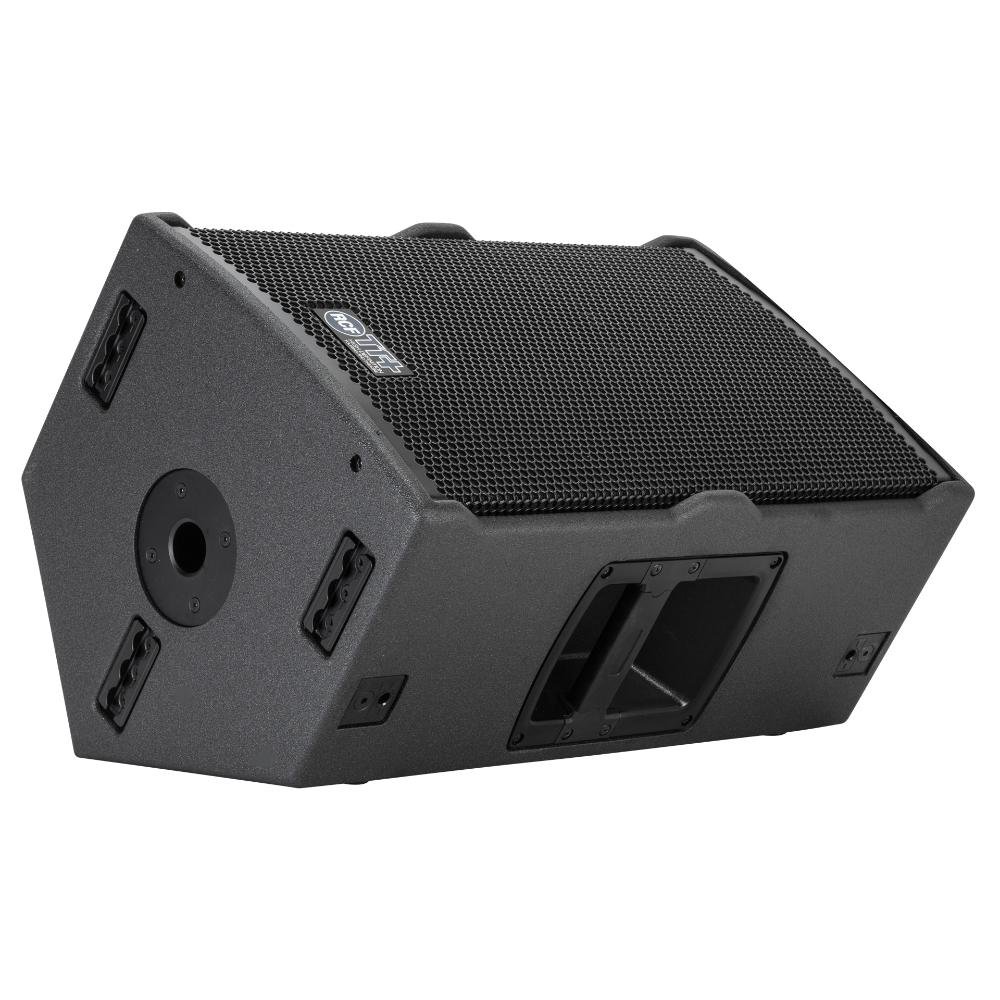

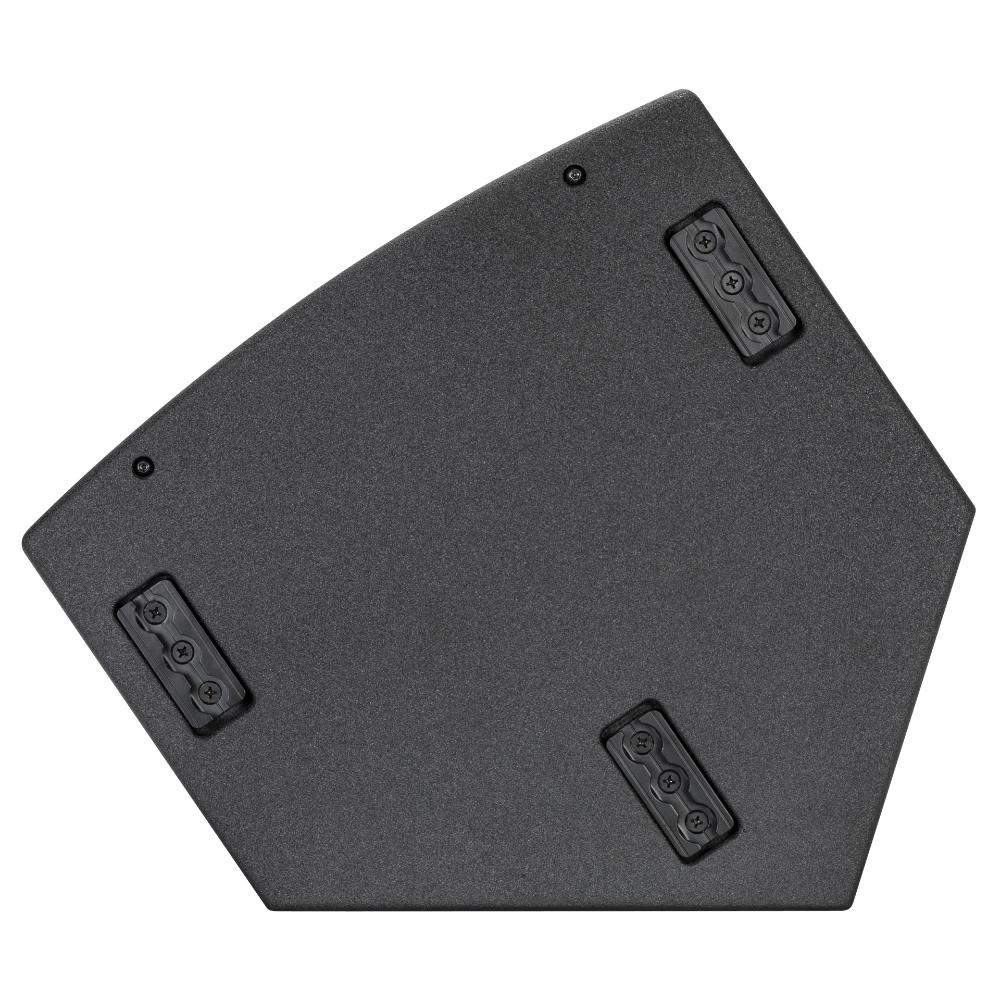

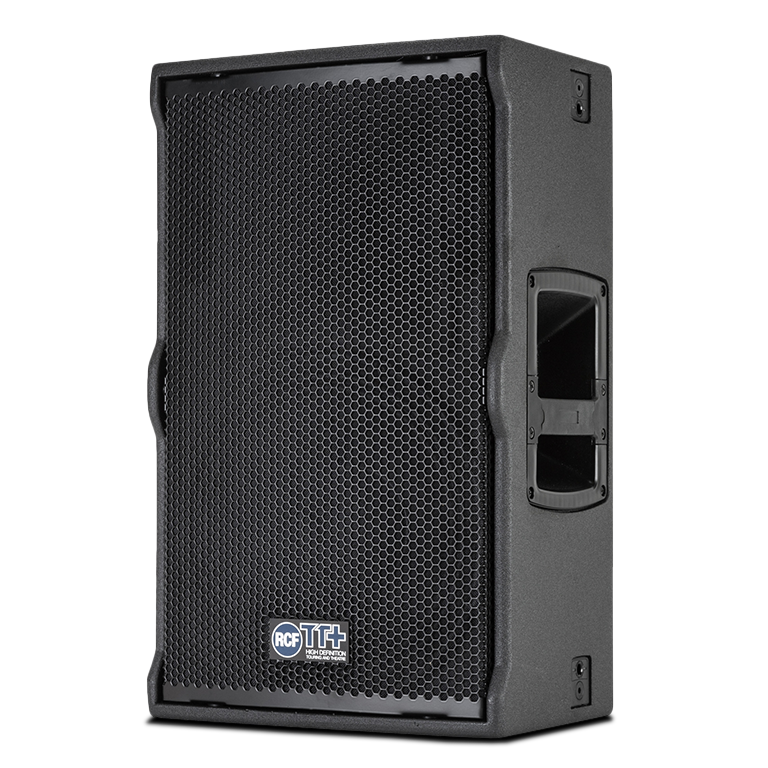

TT22-A II is a 2-way active system featuring a 12” neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4” exit, 75 mm voice coil neo compression driver. An extremely careful acoustic design plus the highest quality transducers and a powerful amplifier make the TT22-A II speaker system the perfect solution from live sound situations to playback and monitoring. The amplifier section features 1100 watt power – 800 watt low frequency, 300 watt high frequency. The cabinet is made of marine Baltic birch plywood and features high-resistance polyurea coating. The cabinets has 2 side handles, 6 x fly-track rigging points, quick lock pin receptacles and a steel pole mount.

RDNet Software

Part number:

13000444
TT 22-A II
220-240V, EAN 8024530012991

13000445
TT 22-A II
115V, EAN 8024530013219

NETWORKED CONTROL AND MUCH MORE

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
