COMMERCIAL INSTALLED

COMPACT C 32

TWO-WAY PROFESSIONAL SPEAKER

600 W power handling (RMS)
137 dB max SPL
54 ÷ 20000 Hz frequency range
100° x 50° constant directivity coverage angle

EN 54

Where to buy

Features

600 W power handling (RMS)
137 dB max SPL
54 ÷ 20000 Hz frequency range
100° x 50° constant directivity coverage angle
1 x 12" high power neodymium woofer
1 x 3.0" v.c. neodymium compression driver
High quality birch plywood cabinet
Steel front grille with clothing
Installation points available on top, bottom, rear and side panels
SPEAKON in/out connectors

COMPACT C 32 is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 3" neodymium compression driver, a 12" neodymium woofer, and a constant directivity rotatable waveguide produces coherent 100° x 50° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special polyurea coating and a robust powder-coated grille with protective foam. Optional mounting accessories allow for wall or ceiling installation. EN 54-24:2008 technical data available in the user manual.

Part number:

13000642
COMPACT C 32
Black - RAL 9005, EAN 8024530020279

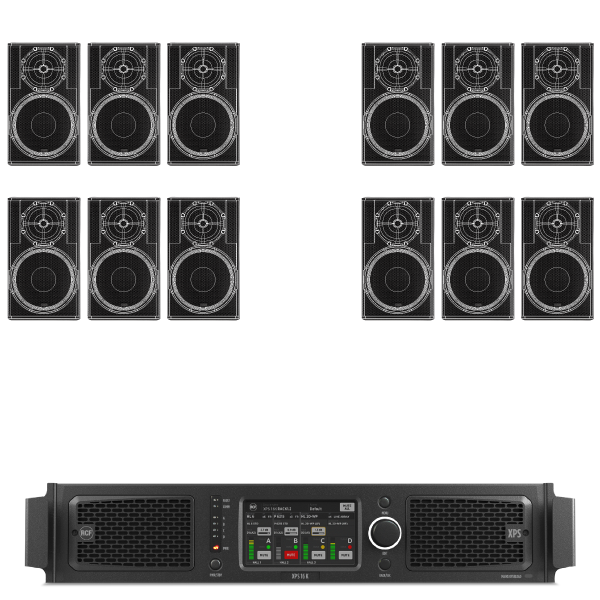

Recommended Power Amp

XPS SERIES

4 x 4000 W

Class D continuous power
at 2.7 Ohms

40-bit Floating-point
Processing at 96 kHz

Ready-to-Use
Configurations and presets
for RCF speakers

2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O

Advanced Fault Protections
for each amplifier channel and power supply

DISCOVER xps sERIES

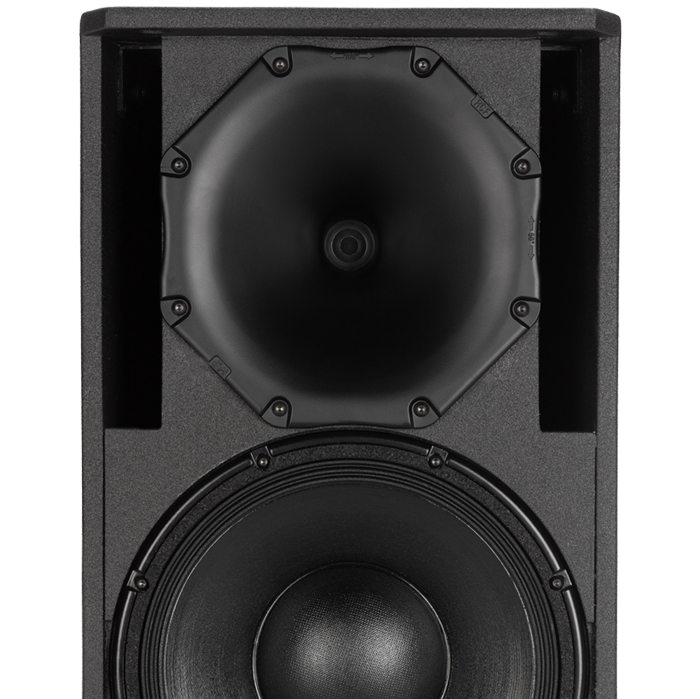

High Frequencies

The compression driver voice-coil design with titanium dome provides very natural sound with high power handling and the best durability over time. This allows lowering the usual crossover point for a perfect vocal performance at mid frequencies, also improving coupling with the low-frequency transducer.

Low Frequencies

Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.

Constant Directivity Waveguide

The special waveguide design allows the deployment of COMPACT C speakers with accurate control of the directional characteristics. In difficult acoustic environments, intelligibility is significantly increased. The speaker also features a 100° x 50° rotatable constant directivity waveguide. Using the optional HN-KIT COMPACT C 32 C 45 accessory, it is possible to replace the speaker horn with two different horns and change directivity to 100° x 25° or 60° x 25°.

The Solution for Impressively Powerful Sound

COMPACT C flexibility makes it a smart choice for a wide range of applications. Combining high-quality birch plywood cabinets with a 100° x 50° rotatable constant directivity waveguide, the speaker can be installed either horizontally or vertically. The sleek cabinet features a robust polyurea coating and is easy to be flown-, wall-, or truss-mounted using the multiple rigging points available and optional accessories. The back panel provides two ‘Neutrik Speakon NL4’ (4-pole) plugs.

CERTIFIED SYSTEM UNDER EN 54-24:2008

Leveraging decades of experience in large-scale installations in critical venues such as stadiums, arenas, amusement parks, and motor racing circuits, RCF provides high-performance audio solutions serving concurrently as sound reinforcement and voice alarm systems. Our EN 54-certified point-source and line-array loudspeakers, derived directly from live concert technologies, deliver exceptional sound quality and excellent performance during emergency situations.

Compact C Series

Compact C Series is composed of two-way point source speakers for near and mid-distance high power applications. Each model combines a compact size with very high output for accurate speech and music reproduction. All cabinets are made with high-quality birch plywood, house a neodymium woofer with a titanium/neodymium compression driver, and a 100° x 50° rotatable constant directivity horn. Speakers can be installed either horizontally or vertically, with optional mounting accessories for walls or ceilings.
