INSTALLED

S 19

HIGH-POWER BASS REFLEX SUBWOOFER

Up to 1500 W power handling
139 dB max SPL
30 ÷ 200 Hz frequency range
19" HyperVented Neodymium Woofer with 4’’ v.c.

Where to buy

Features

Up to 1500 W power handling
139 dB max SPL
30 ÷ 200 Hz frequency range
19" HyperVented Neodymium Woofer with 4’’ v.c.
High-quality polyurea-coated multi-ply cabinet
Steel front grille with clothing
M20 standard pole mount in top end of cabinet
Speakon NL4 connectors

S 19 is a high-power single 19" subwoofer suitable for RCF Installed Sound systems. The bass-reflex design ensures an efficient acoustic response down to 30 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. The recessed input panel features two Speakon NL4 connectors, allowing a quick and safe connection. A M20 pole mount adaptor on top of the cabinet and handles on both sides are provided. Both models can be ground-stacked and are cardioid-arrayable for improved rear rejection.

Part number:

13100096
S 19
EAN 8024530021740

Recommended Power Amp

XPS SERIES

4 x 4000 W

Class D continuous power
at 2.7 Ohms

40-bit Floating-point
Processing at 96 kHz

Ready-to-Use
Configurations and presets
for RCF speakers

2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O

Advanced Fault Protections
for each amplifier channel and power supply

DISCOVER xps sERIES

Advanced Transducer Technology

S Series subwoofers incorporate the latest transducer technology from our labs. The 19-inch cone size is the ideal balance between the traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) gains high power with fast acceleration. Despite their small and lightweight footprints, S 29 and S 19 produce powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.

Polyurea Coating

S Series enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection. The coating also withstands abrasion, impacts, mechanical stress, and its high elasticity maintains flexibility even in low temperatures. It also exhibits strong chemical resistance and does not emit any VOCs (volatile organic compounds), making it environmentally friendly and safe for human health.

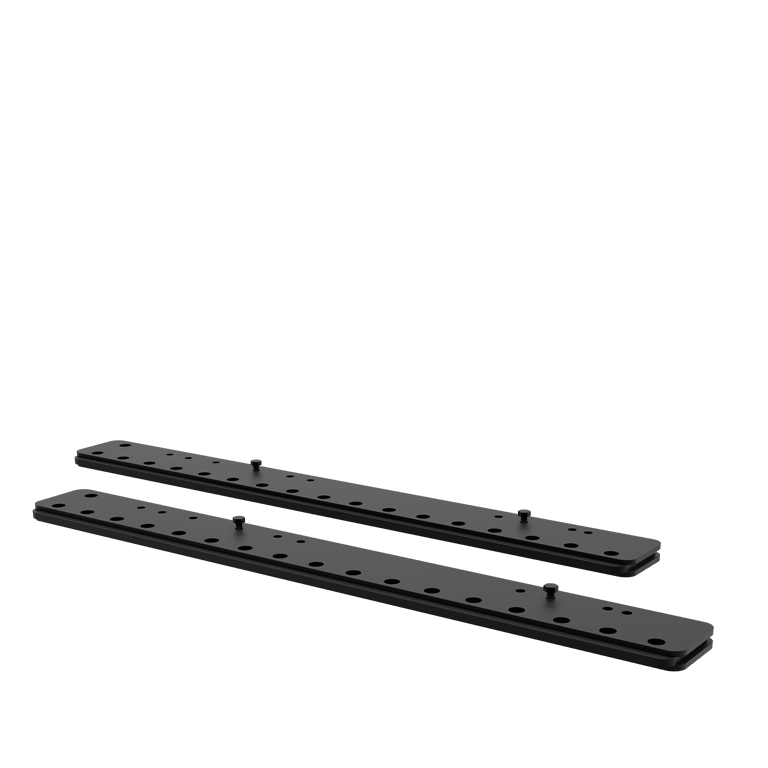

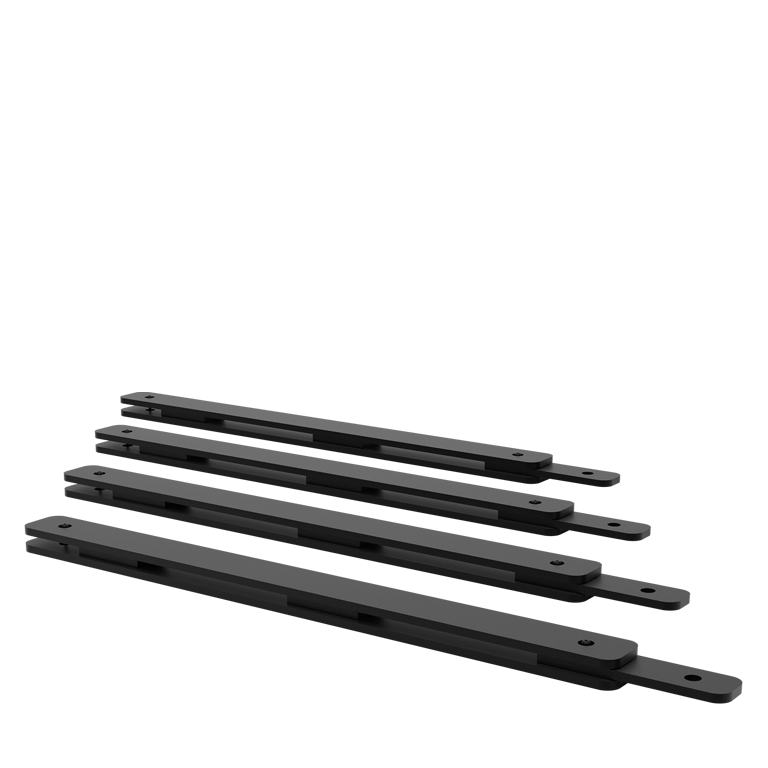

Modular Suspension Kit

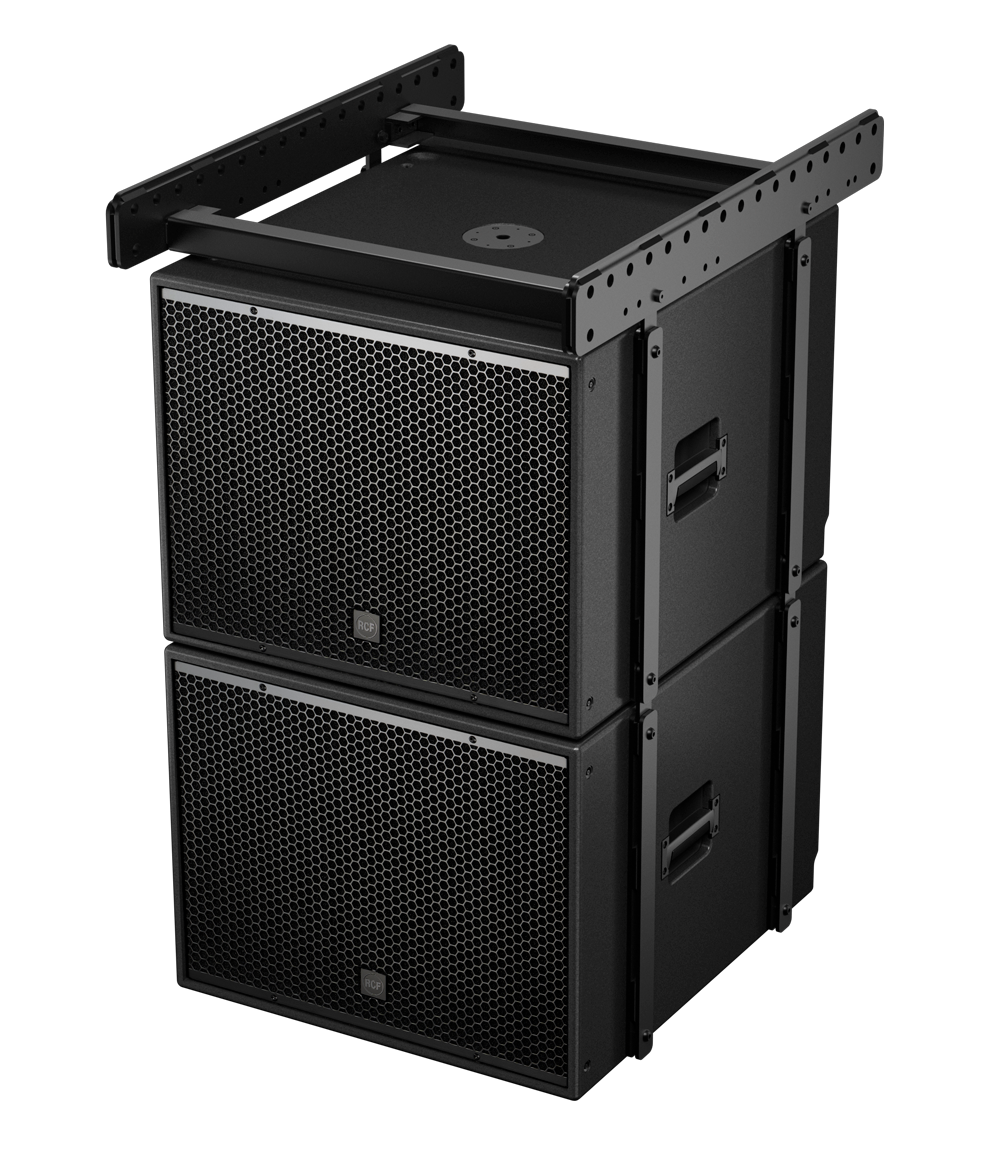

The modular Subwoofer Suspension Kit is engineered for extreme flexibility and safety in flown subwoofer configurations. Designed with high-strength steel components and compatible with various subwoofer models, the system supports secure suspension of up to 9 units while also enabling adaptability for cardioid configurations.

For specific part numbers, consult the Subwoofer Suspension Kit Reference Guide in the download section.

download guide
