TTS 18-A II

ACTIVE HIGH POWER SUBWOOFER

137 dB SPL Max
30-400 Hz Frequency Range
1 x 18" Hyper Vented woofer, 4" Voice Coil
1400W RMS Class-D Amplifier

RDNet

Where to buy

Features

137 dB SPL Max
30-400 Hz Frequency Range
1 x 18" Hyper Vented woofer, 4" Voice Coil
DSP Controlled Input Section with selectable presets (e.g.cardioid)
1400W RMS Class-D Amplifier
RDNet remote monitoring and control

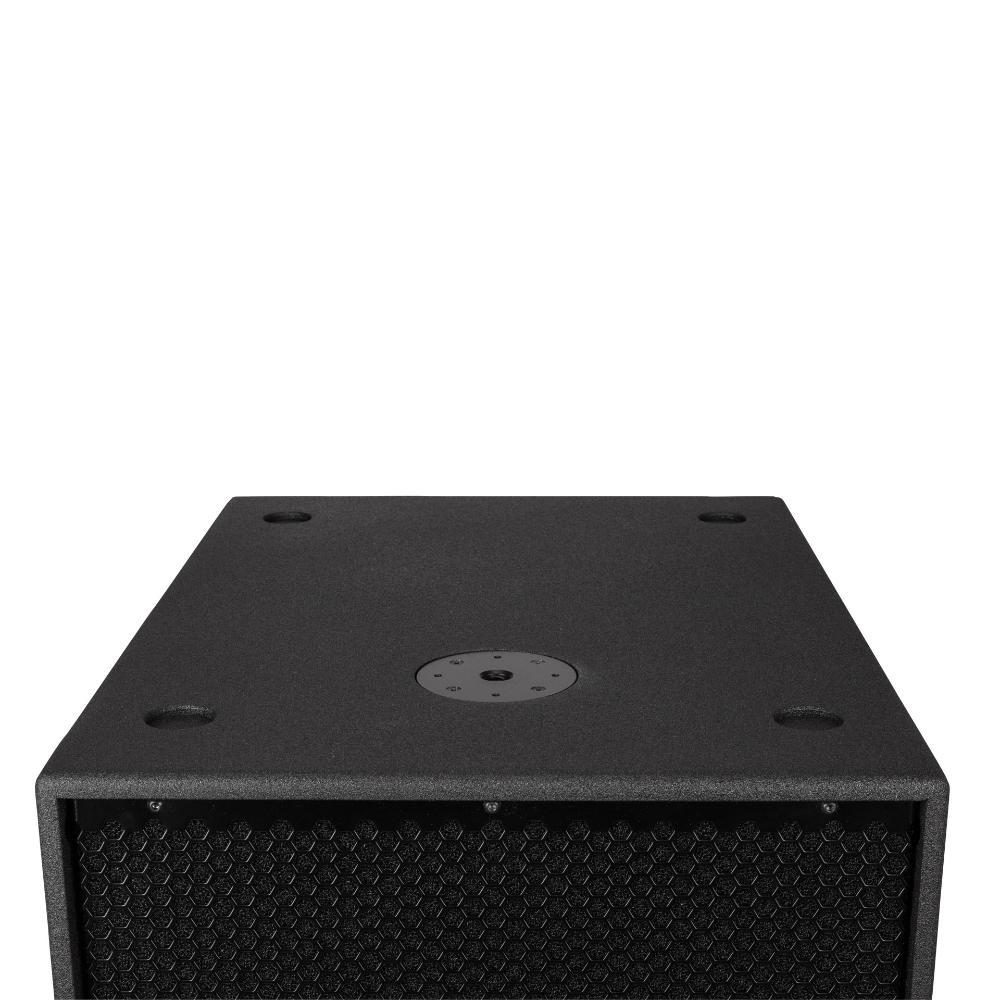

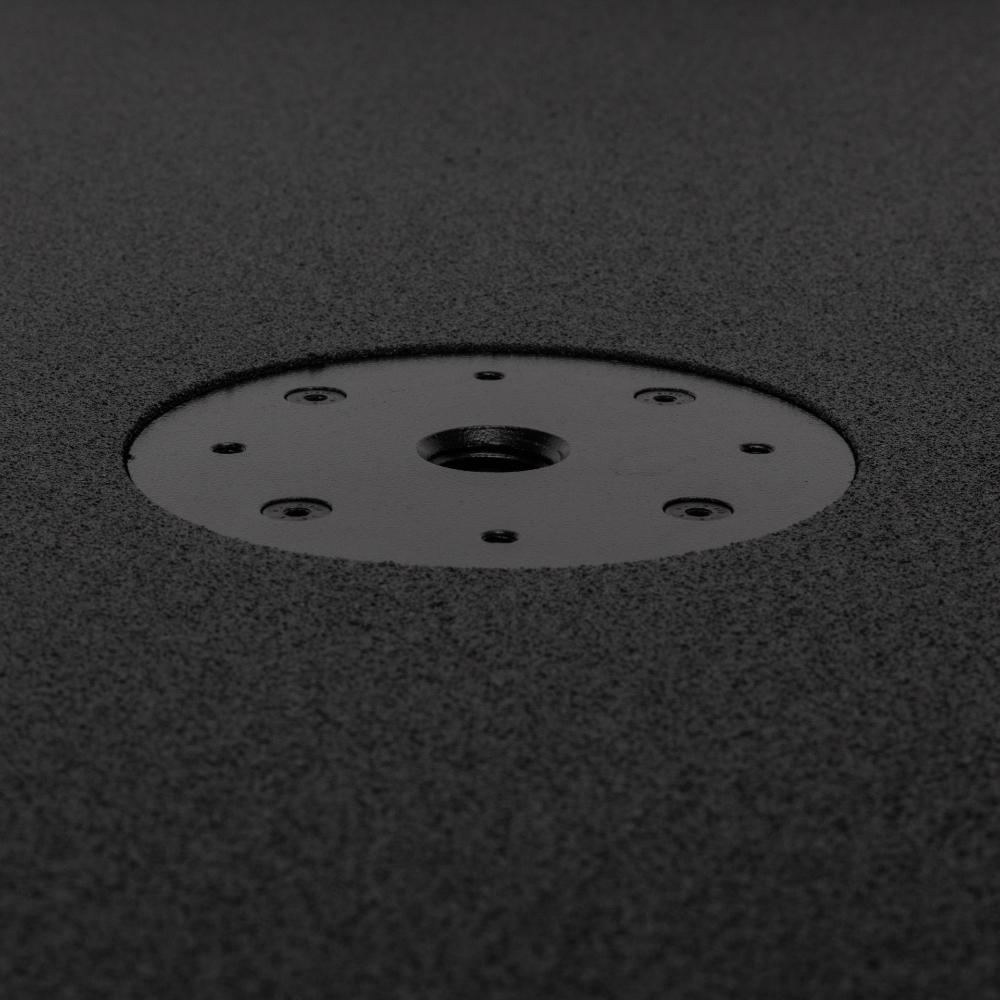

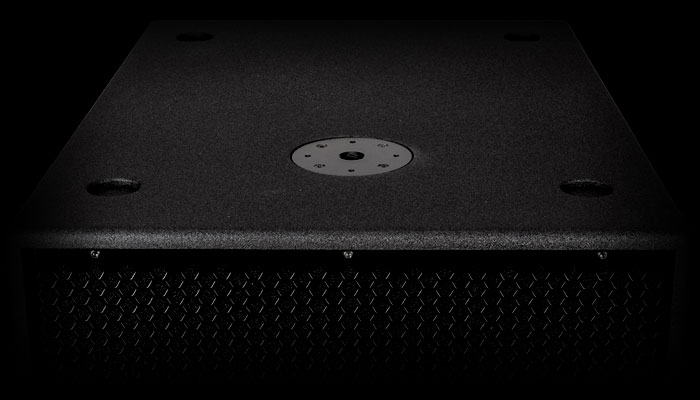

Vertical and horizontal placement with M20 pole receptacle on top and side
Baltic Birch Cabinet

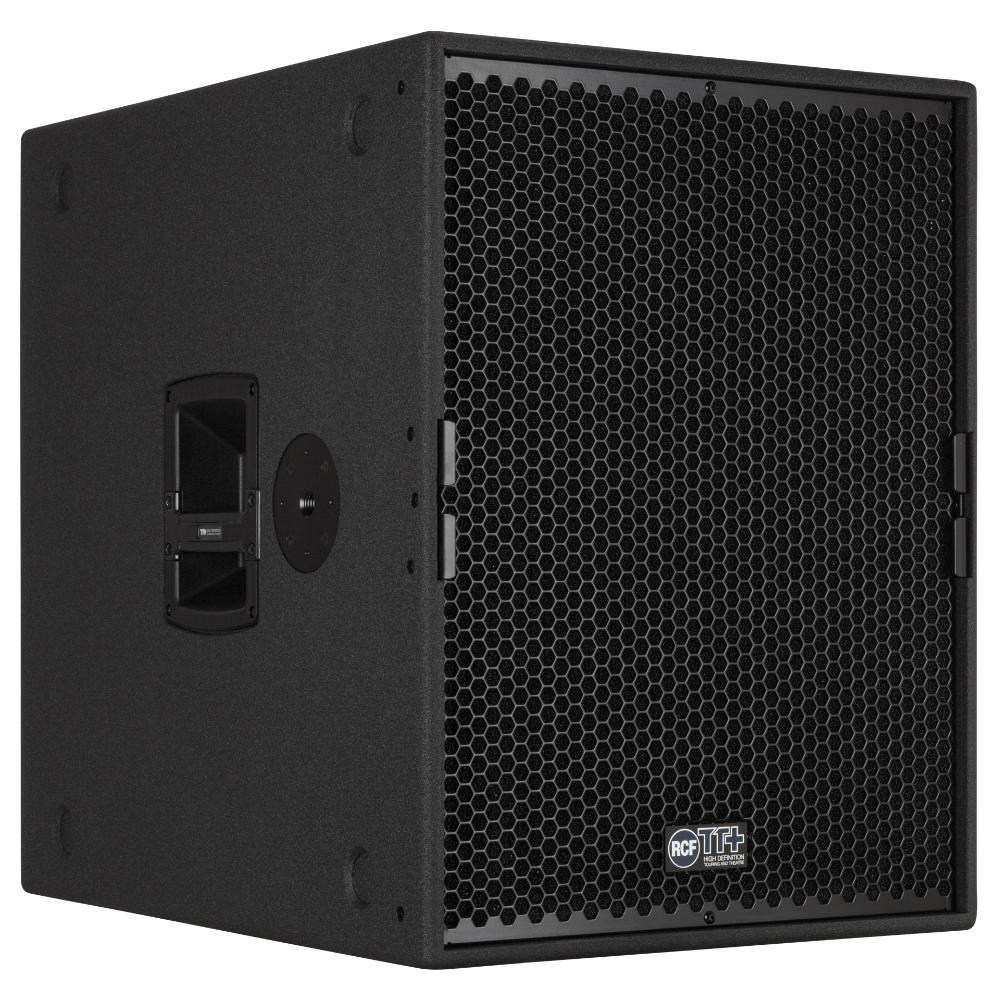

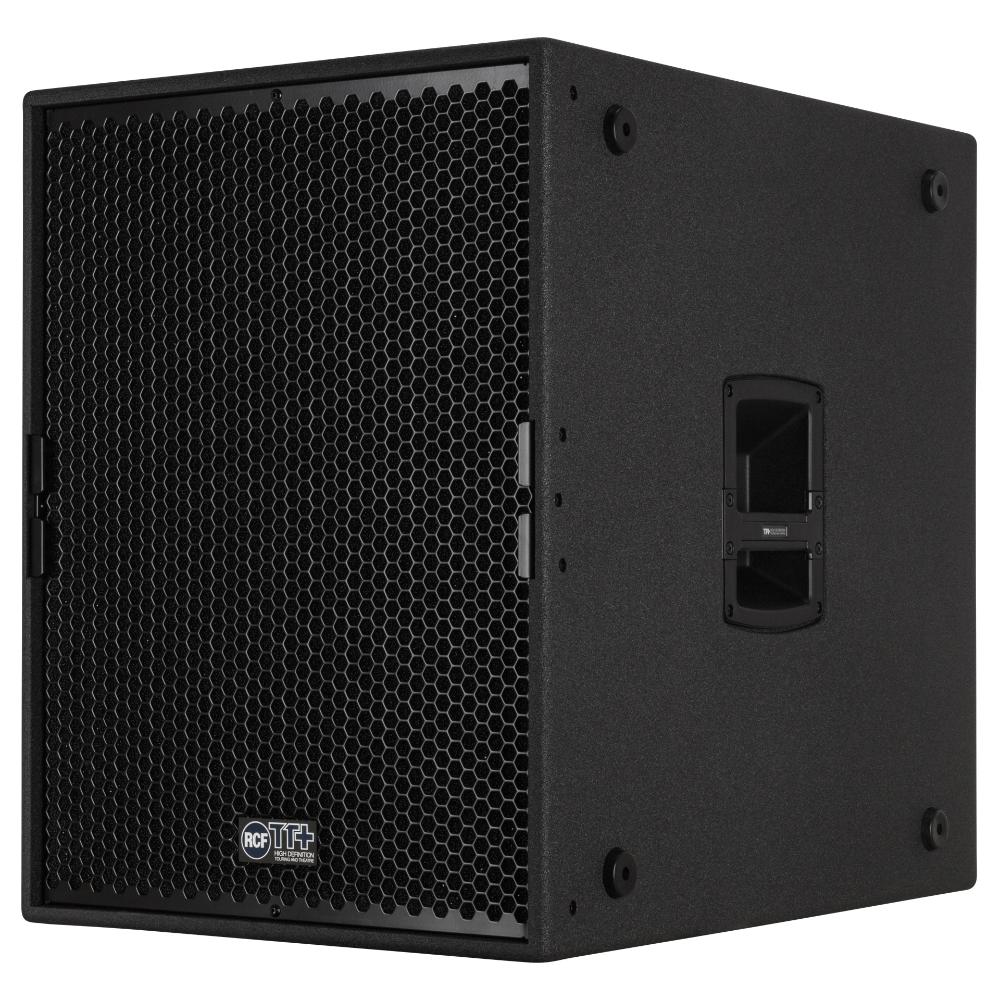

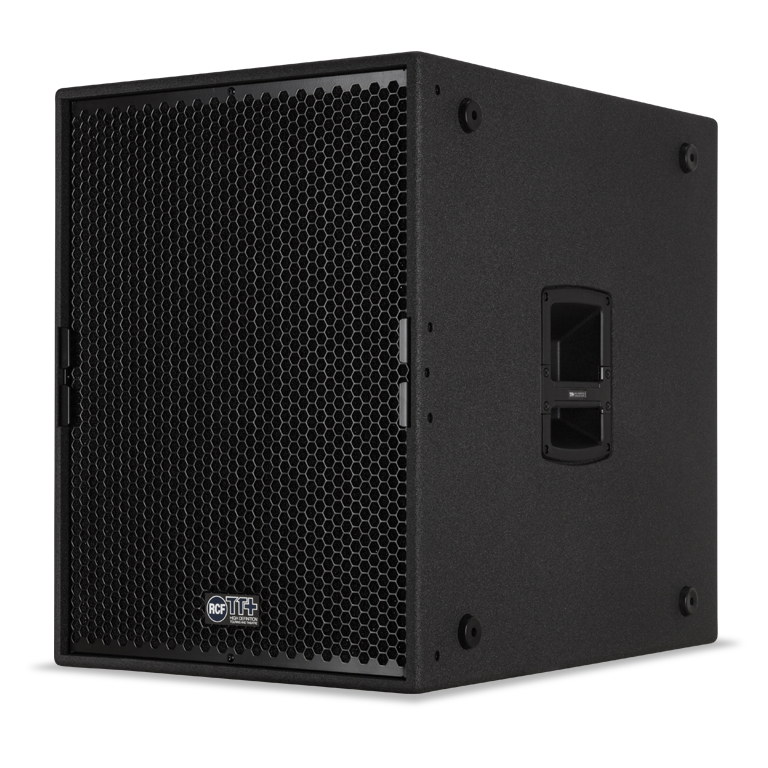

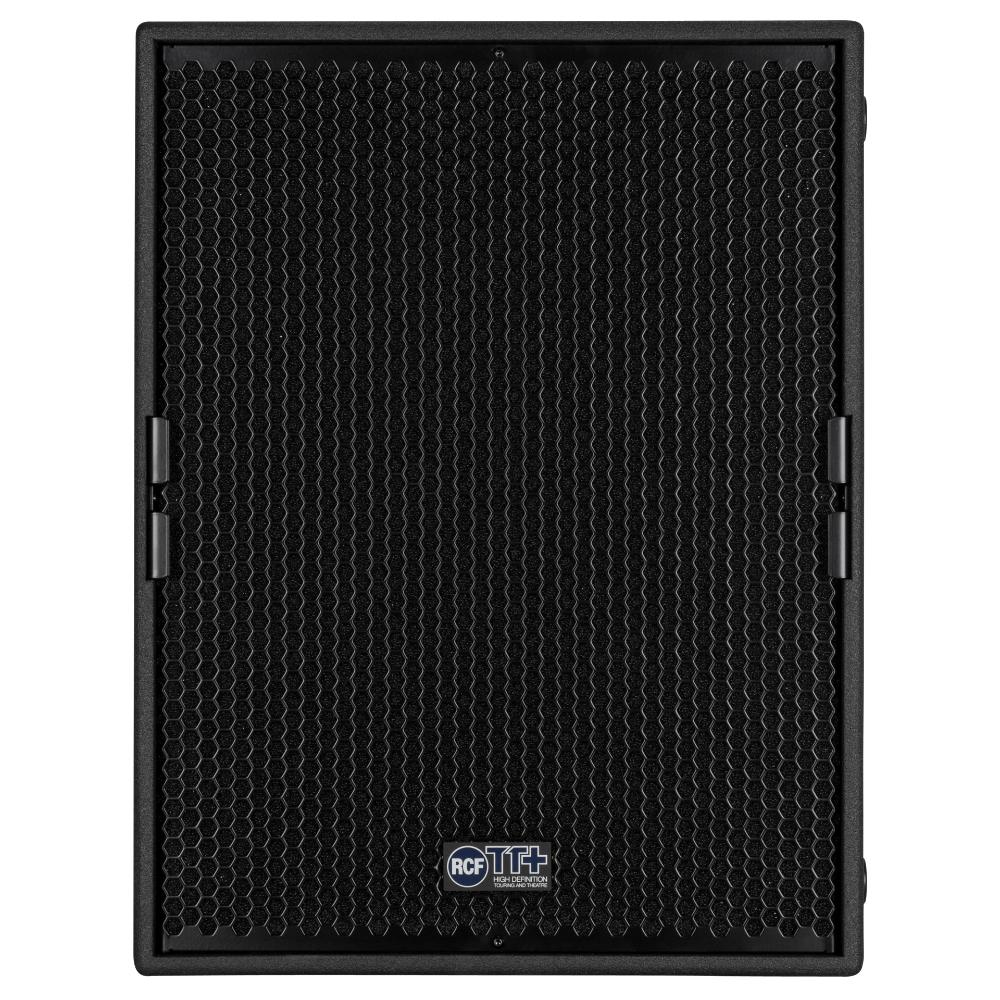

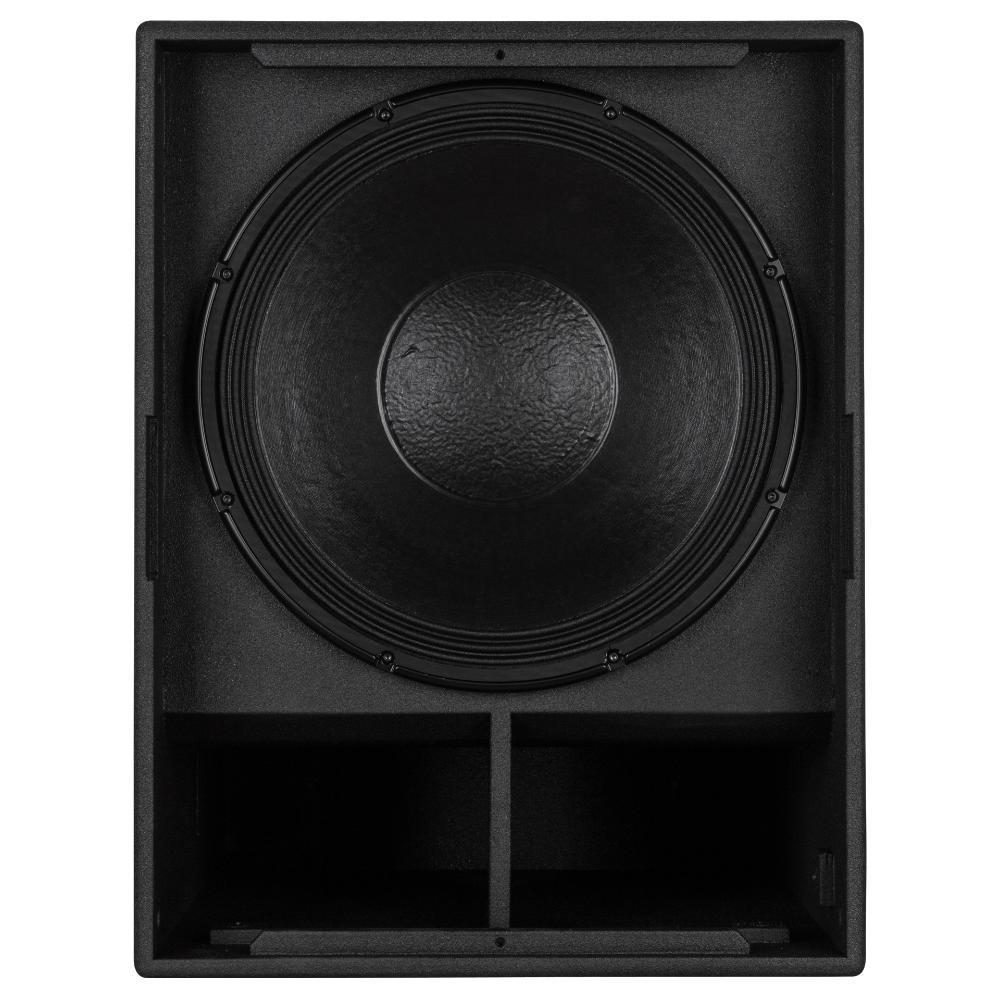

The RCF TTS 18-A II is a compact, high output subwoofer module ideal in combination with TT+ two way systems. The RCF TTS 18-A II woofer features lightweight neodymium magnet, inside-outside copper voice coil; silicon double spiders; water resistant treated cone; magnet assembly with minimum power compression. The amplifier section features 1400 watt RMS SMPS class-D Amplifier with full DSP and RDNet network capabilities.

RDNet Software

Part number:

13000545
TTS 18-A II
EAN 8024530015343

NETWORKED CONTROL AND MUCH MORE

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

Cabinet

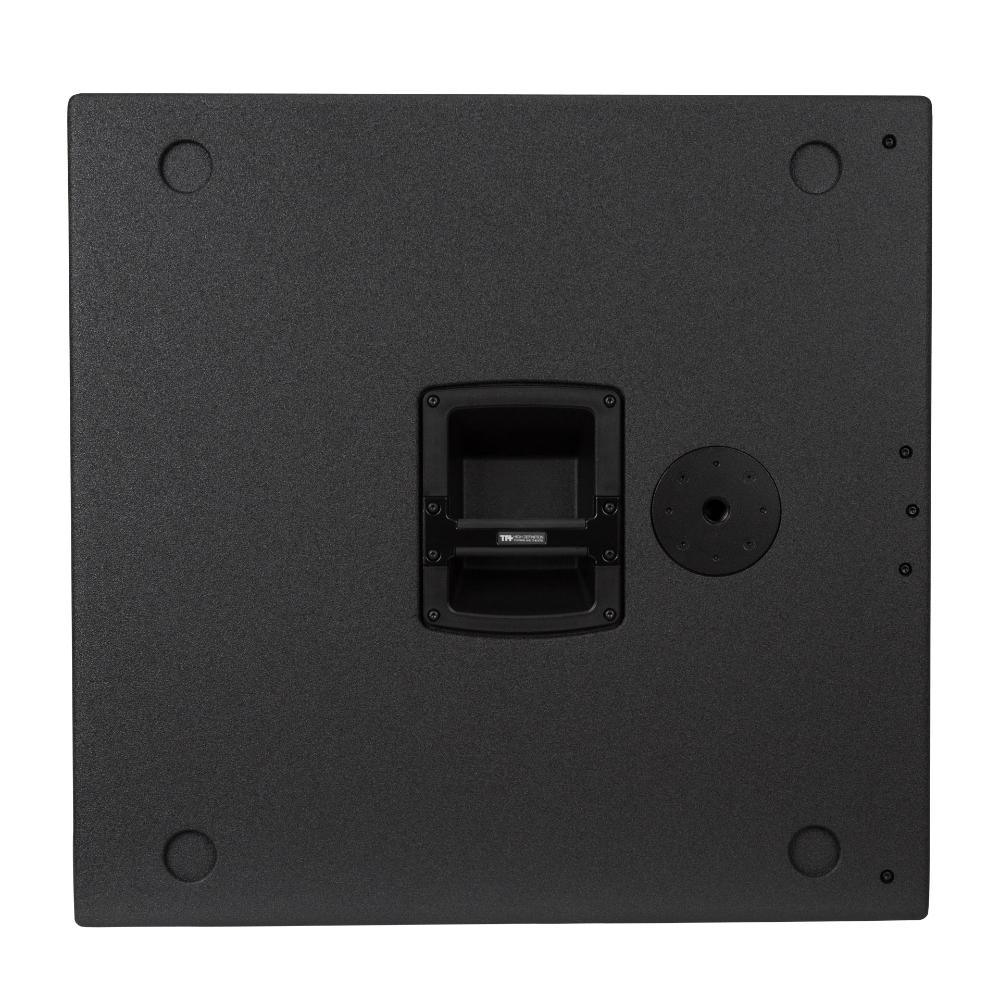

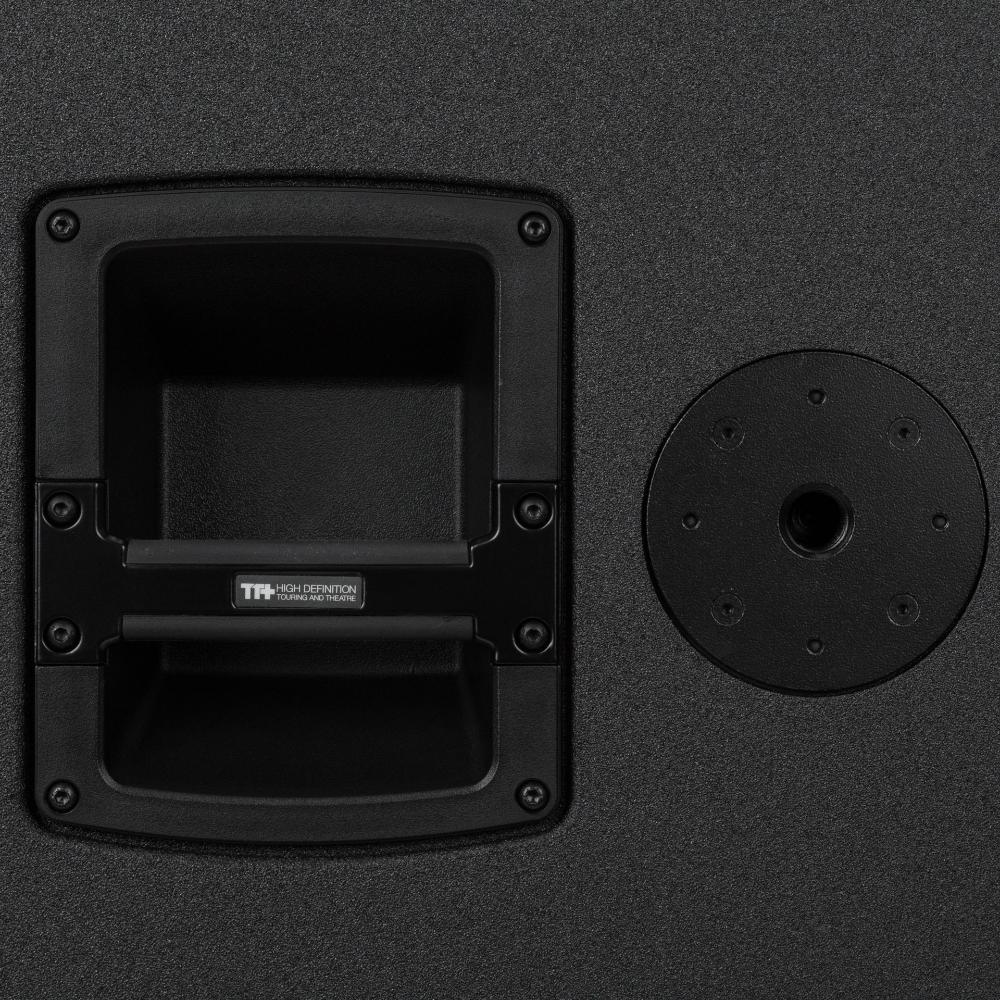

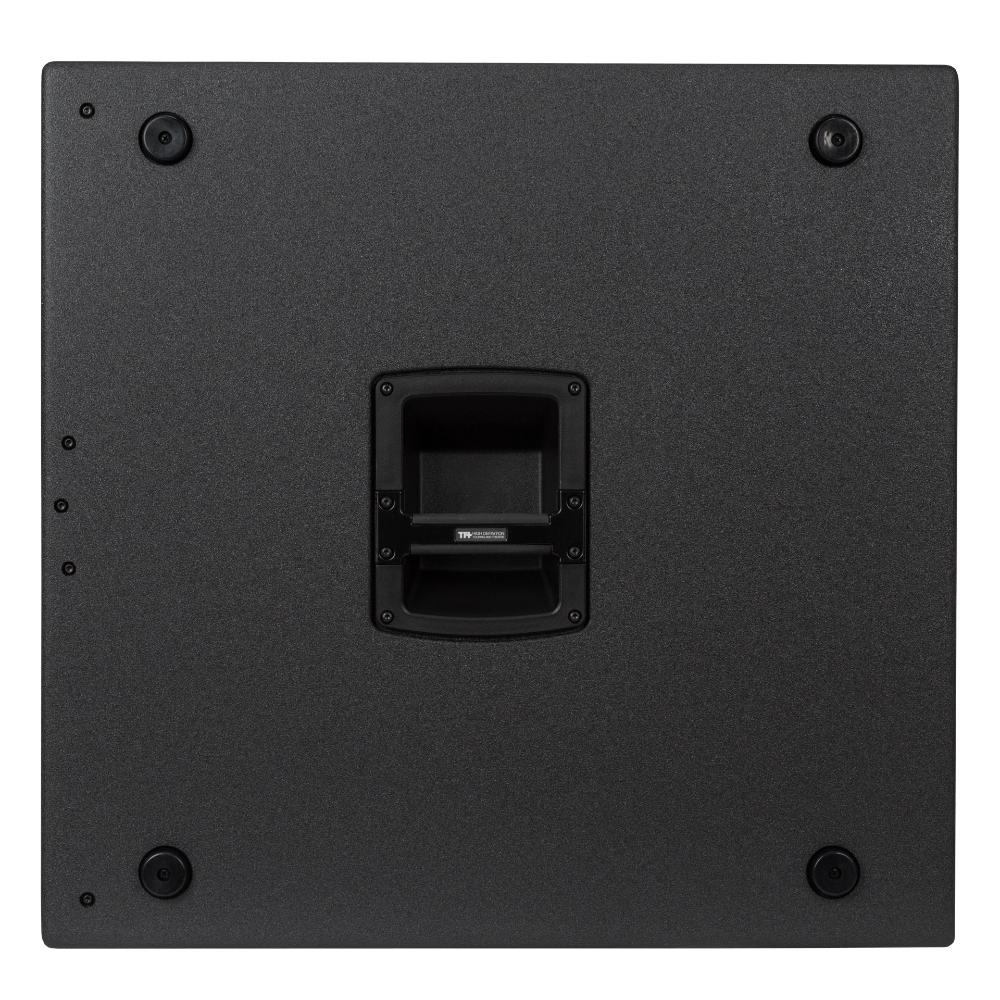

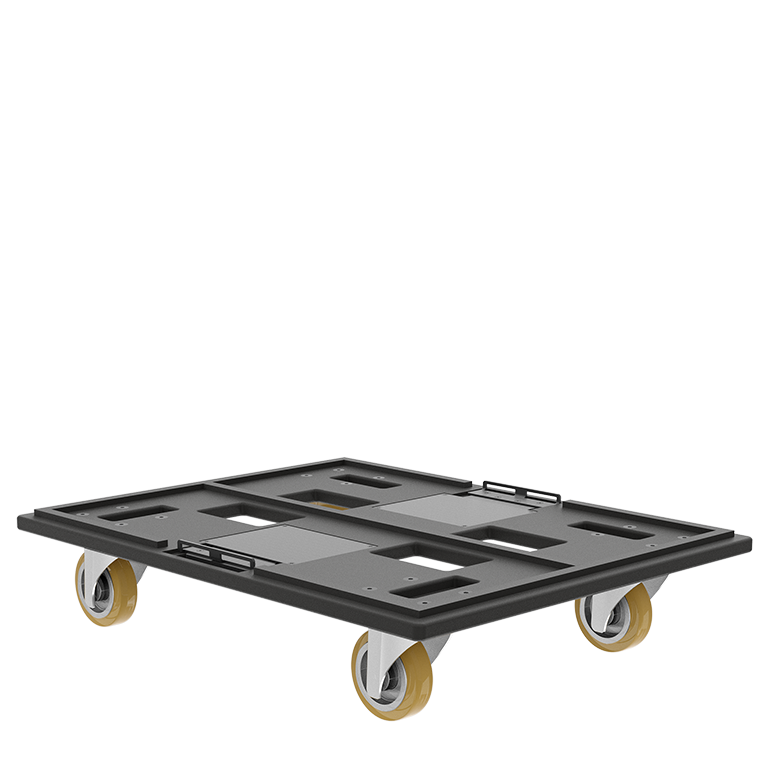

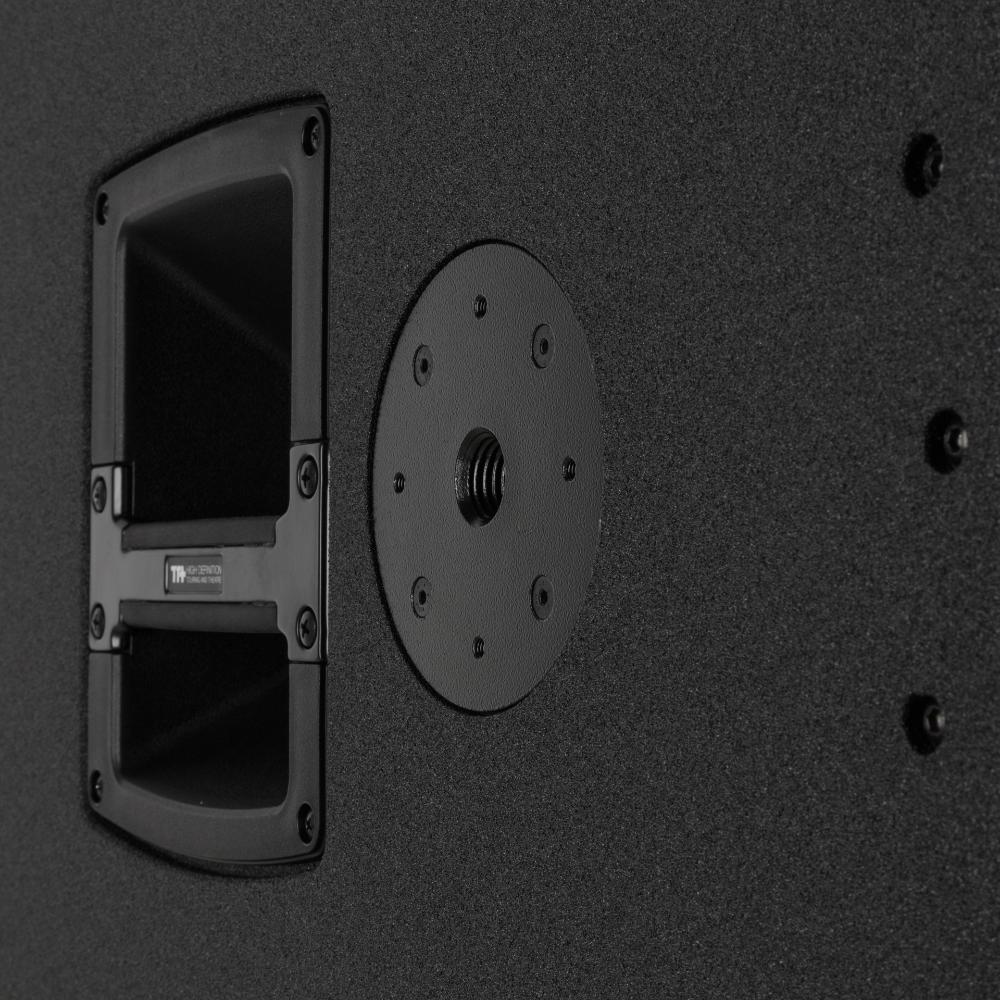

The RCF TT+ cabinets are made of high-quality birch plywood with weatherproof treatments. The subs are stackable and light-weight, for easy set-up and tear down. The polyurea coating and the rugged structure of the cabinet withstand long-term use and transportation and the separate housing for the amplifier guarantee the best components efficiency and reliability. A pole receptacle on the top and side allows the woofer to be used in various configurations. Transportation is fast thanks to the detachable Kart kit, a dolly caster-board with rugged tour grade casters and rotating cam mechanism.

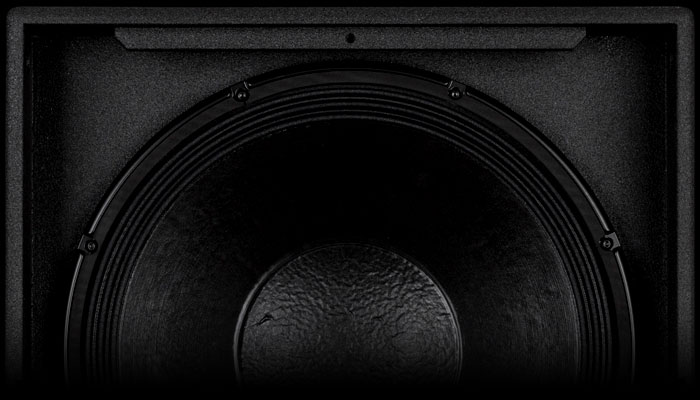

High performance hypervented

RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.

Active advantage

An active sound system means having the power amplifier on-board of the cabinet. This brings some advantages:

Reduced setup time
Daisy chain signal and power connection of the entire system or by groups
No additional amplifier rack(s), saving space in the truck
The sound quality and performance are optimized to the individual components inside the speaker
The RDNet Networked Control can monitor each component of the system

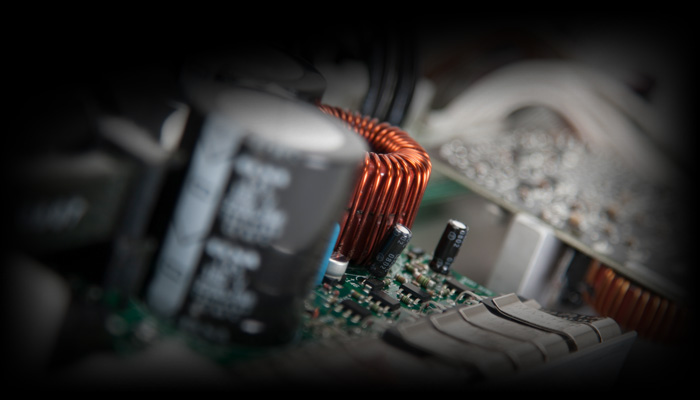

Top and electronics

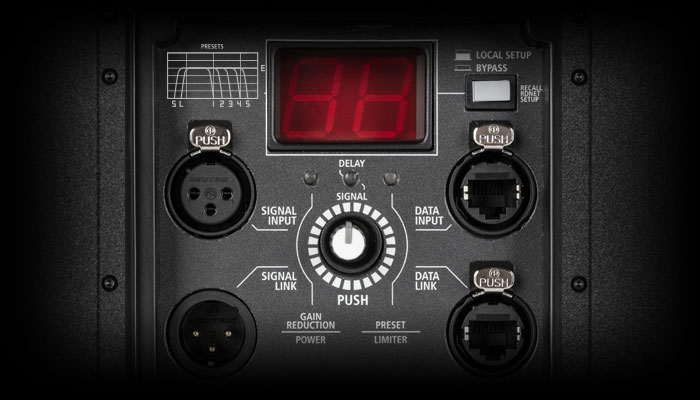

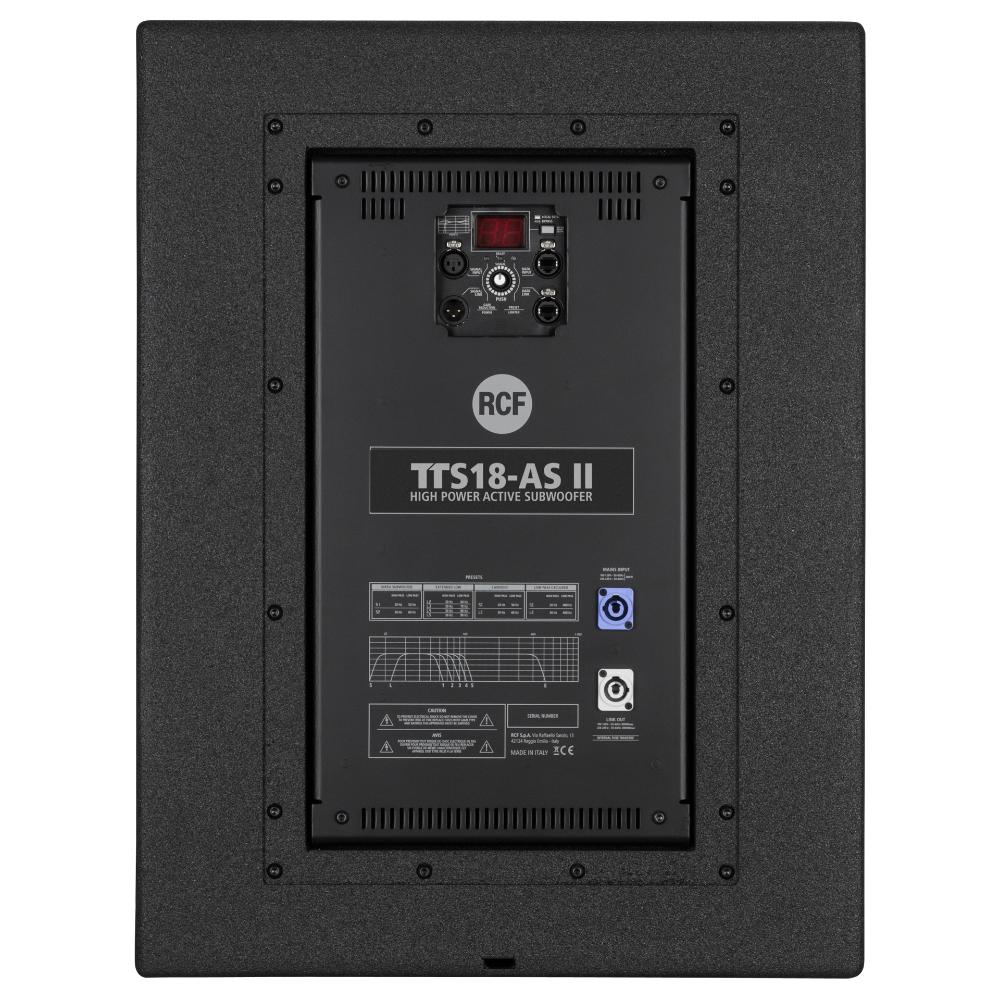

The amplifier integrates a low-noise 32 bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and advanced features are available inside the integrated RDNet Networked Management software. The control panel on the back adjusts volume, bypass, delay, presets and advanced functions.

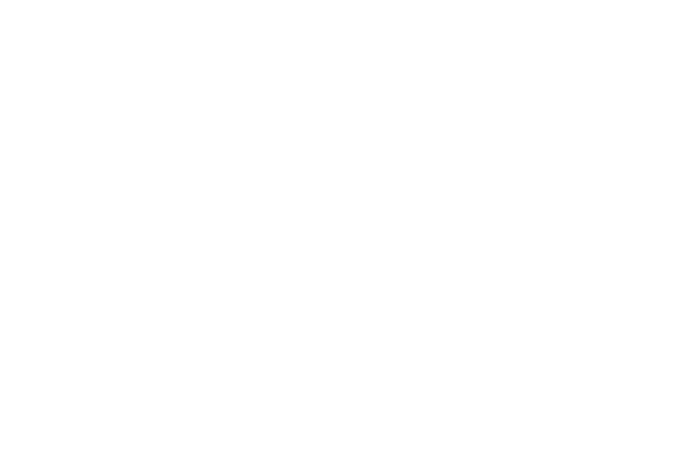

The good flow

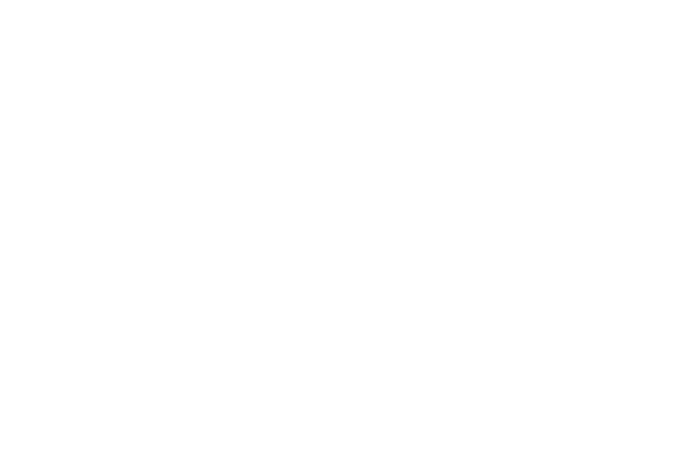

It’s common knowledge in fluid dynamics that the turbulent airflow is reduced with a smart design of the port.

The improved vented port is a proprietary solution that helps to achieve a good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortion.
